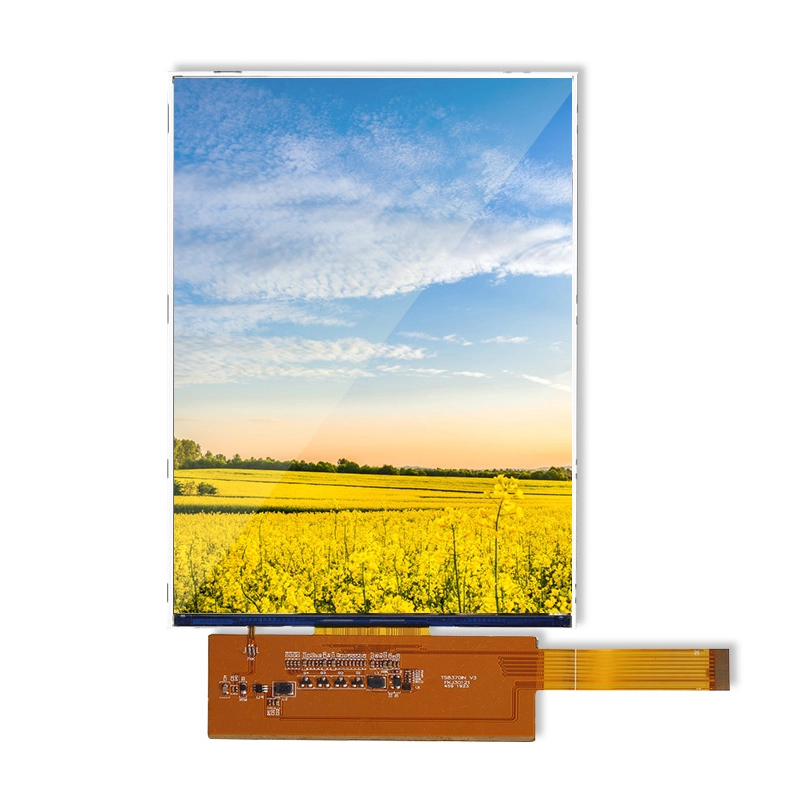

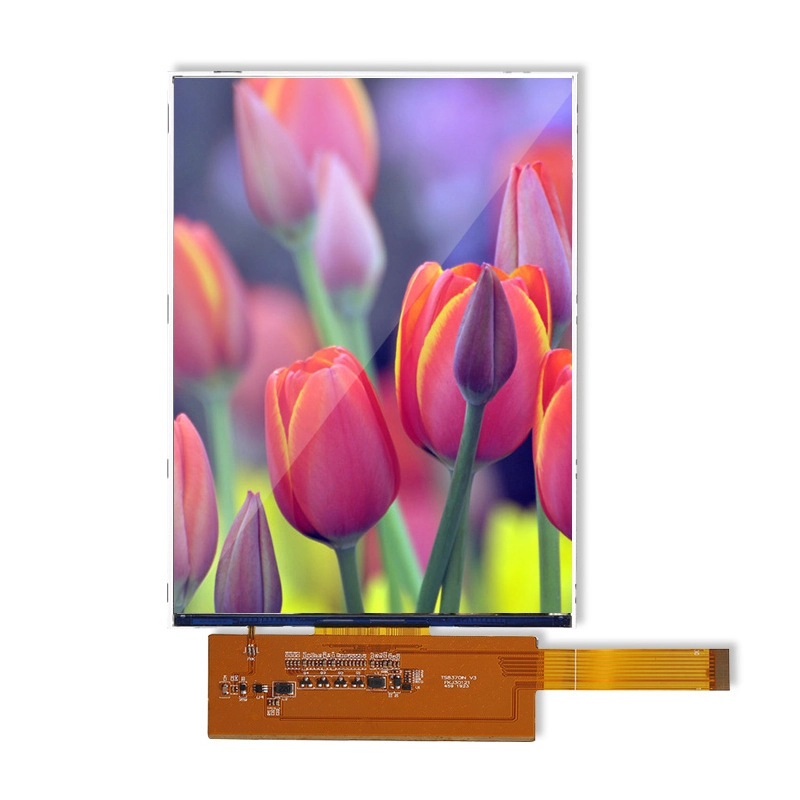

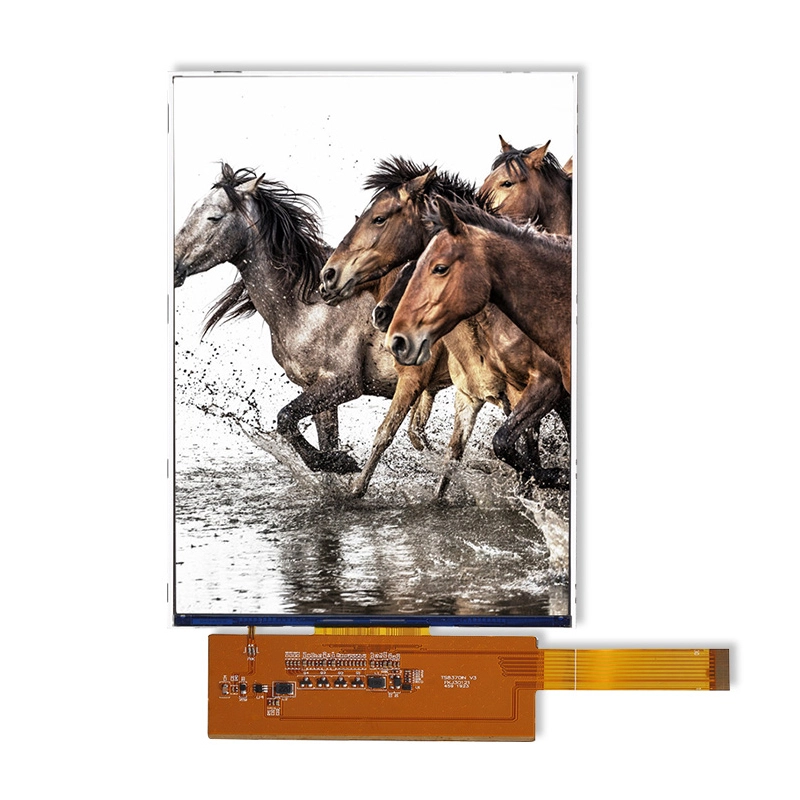

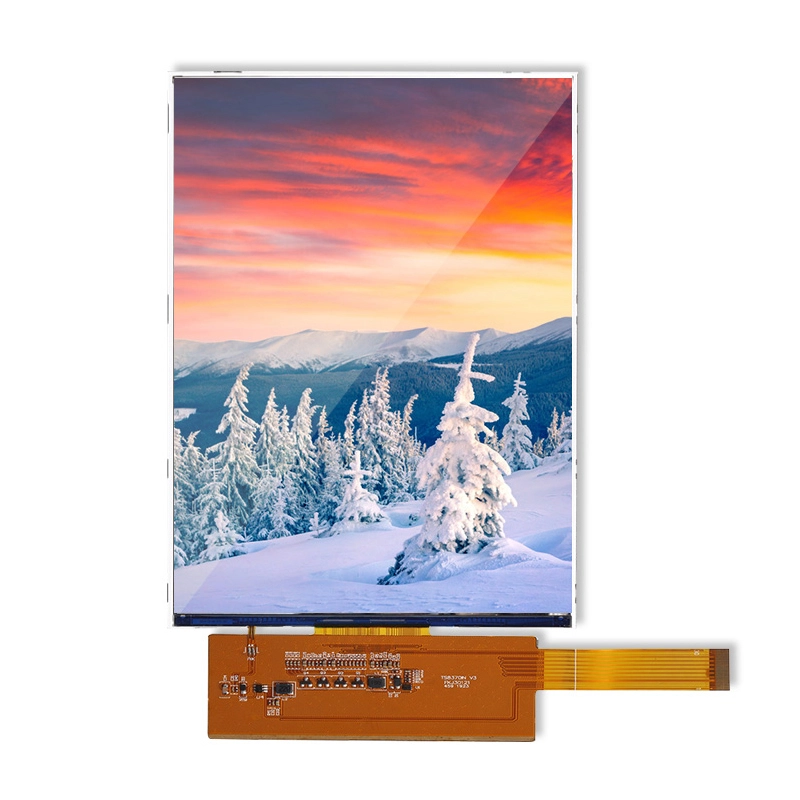

Kingtech PV07039T0240Q-CO is a 7-inch LCD module using IPS TFT-LCD technology. Its LCD panel is 1200x1920dots, providing a very clear and vivid image. With Full Viewing angle, you can see clearly the display from different direction. It supports MIPI interface and drive IC is HX8279, the touch IC is GT9271. Currently its brightness is 300nits. It has a compatible CTP, OCA bonding way.
FHD resolution 1200x1920
Portrait, vertical shaped
Full/Wide/All viewing angle
With CTP available
Get a Quote
Documentation
| Item | 7.0 inch IPS FHD LCD module with CTP |
| Model No. | PV07039T0240Q-CO |
| Resolution | 1200*1920 |
| Outline Dimension (mm) | 102.70*161.66*4.01 |
| Active Area (mm) | 94.50*151.20 |
| Viewing Angle | IPS |
| Brightness | 300nits |
| Interface | MIPI |
| Backlight | 5*4LED |
| Driving IC | HX8279 |
| PIN No. | 40 |
| Operating Temperature | -10~60C |
| Storage Temperature | -30~70C |
| Touch screen | Optional |
| Application | Tablet PC, consumer Electronics, 5G device, Digital photo frame |
The 7inch 1200x1920 portrait LCD display applicable is for tablet PC, consumer Electronics, 5G device, Digital photo frame, Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.
