4.0-PV04014H0140N

Kingtech 4.0" inch 720*720 TFT module display supply very stable. This 4.0" inch supports RGB interface. In addition, the 4.0" inch TFT display module brightness is 550nits for outdoor device, and this 4inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.


  • Square display

  • Stable supply

  • 550nits brightness/Sunlight readable/High brightness/Outdoor

  • Can custom resistive touch and capacitive touch

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

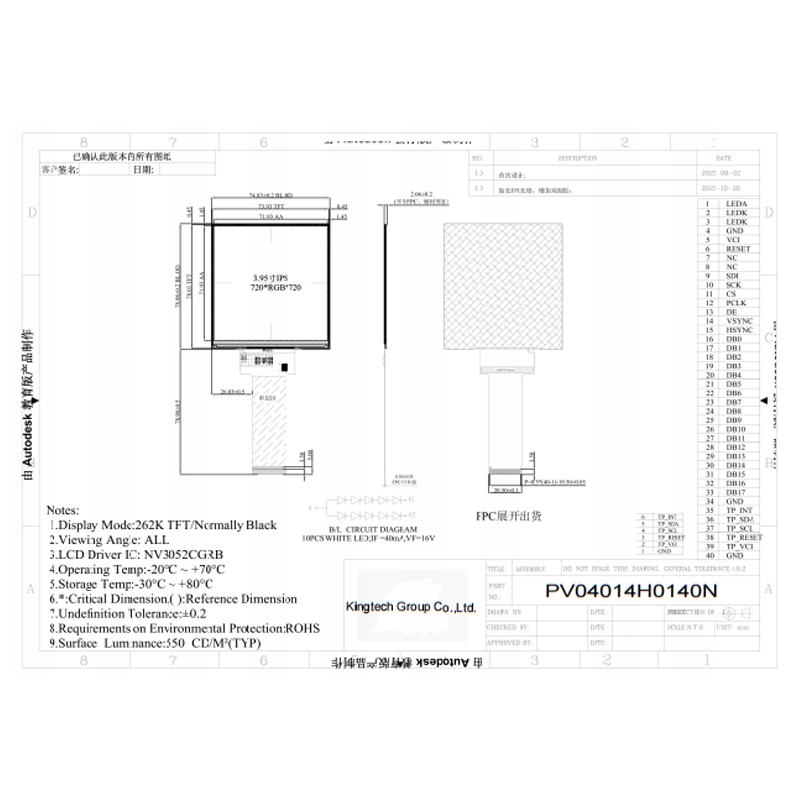

Specification of 4.0-PV04014H0140N

Item4.0 inch IPS 720*720 square TFT display
Model No.PV04014H0140N
Resolution720*720
Outline Dimension (mm)74.83*78.98*2.06
Active Area (mm)71.93*71.93
Viewing AngleAll
Brightness550nits
InterfaceRGB
Backlight5*2LEDs
Driving ICNV3052CGRB
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike, Medical, hand-held device, industrial, smart-home


Application of 4.0-PV04014H0140N

  • The 4.0" inch 720*720 TFT display module can be used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Smart-home, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
