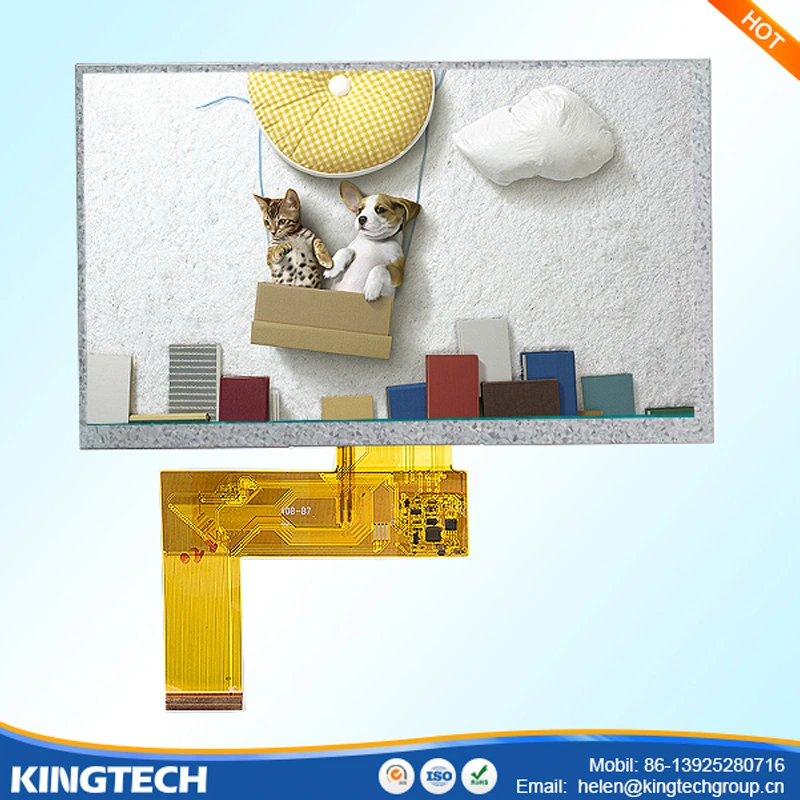

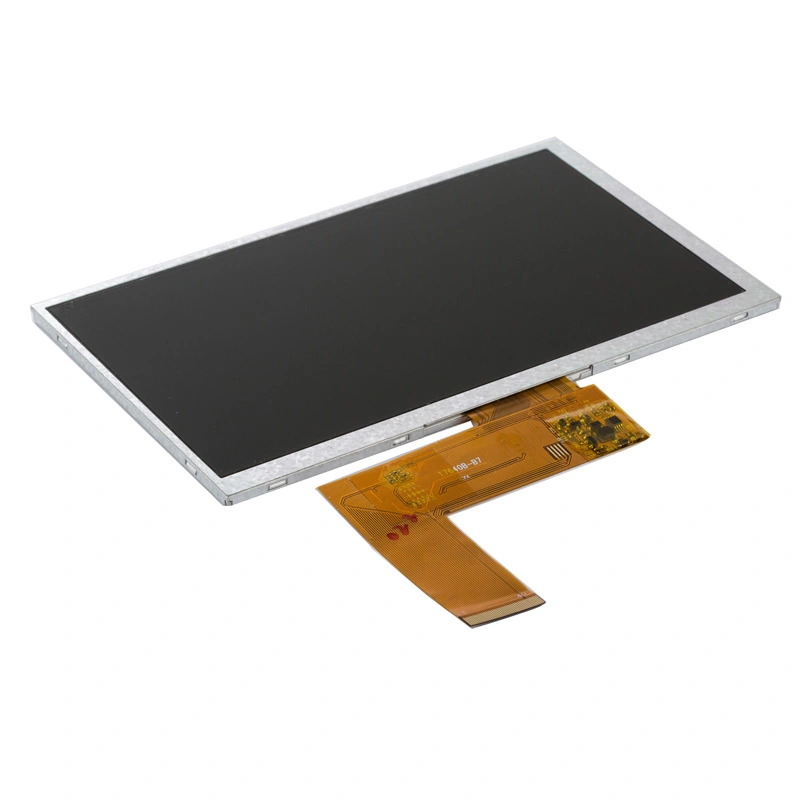

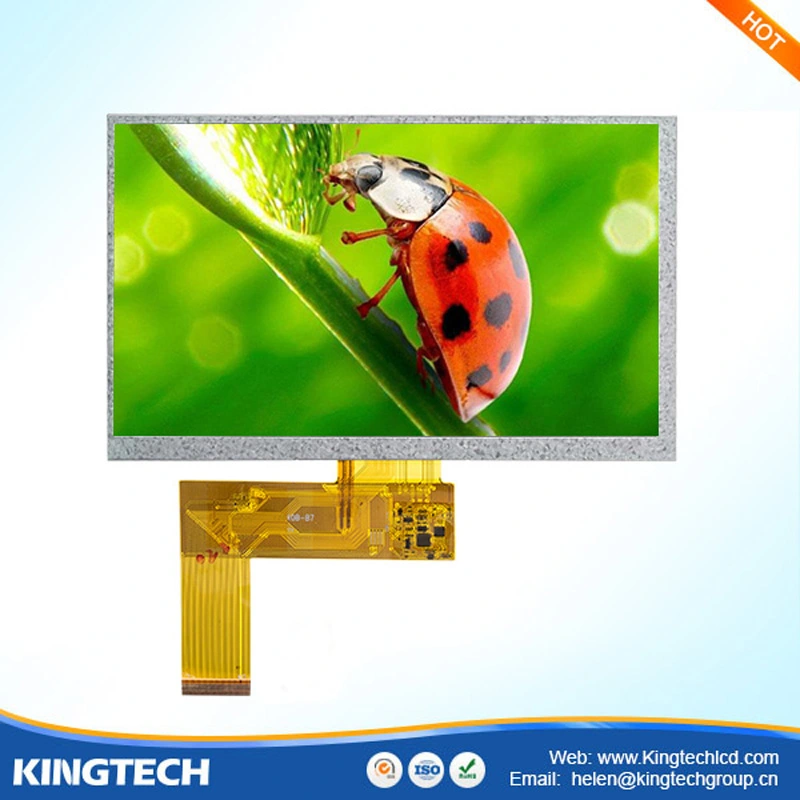

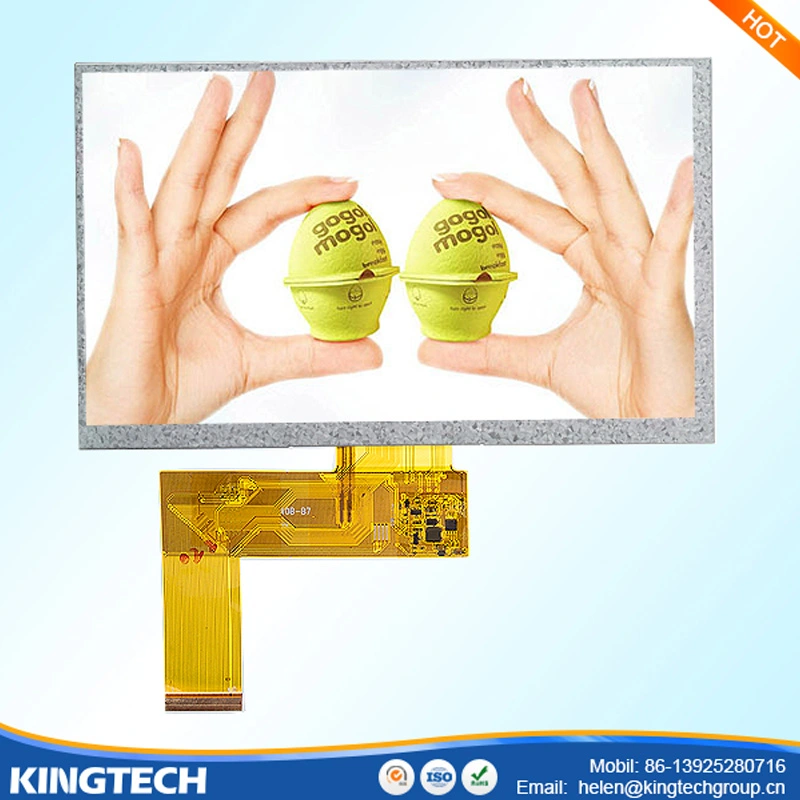

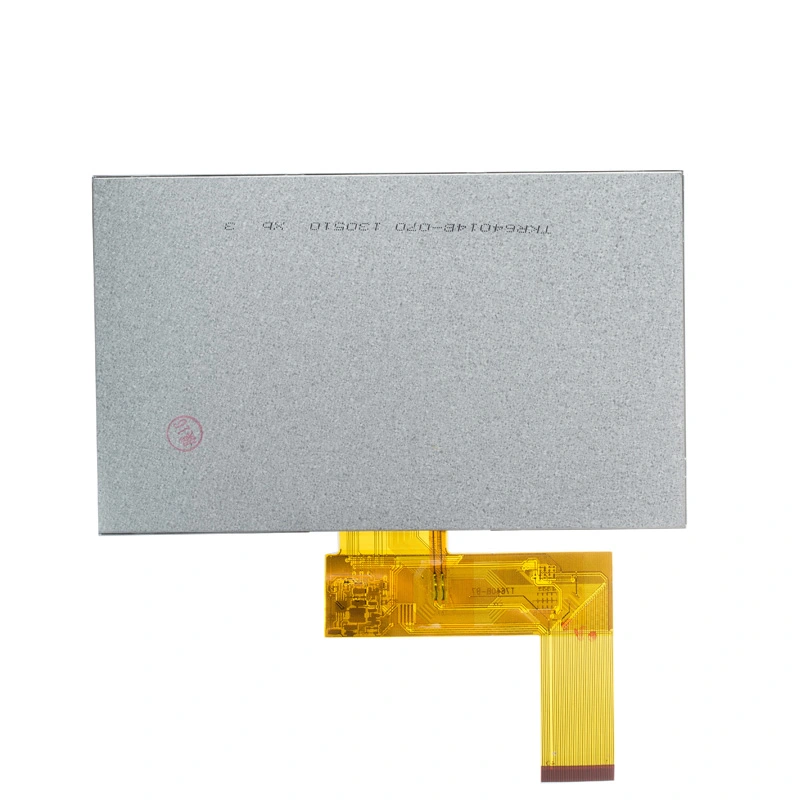

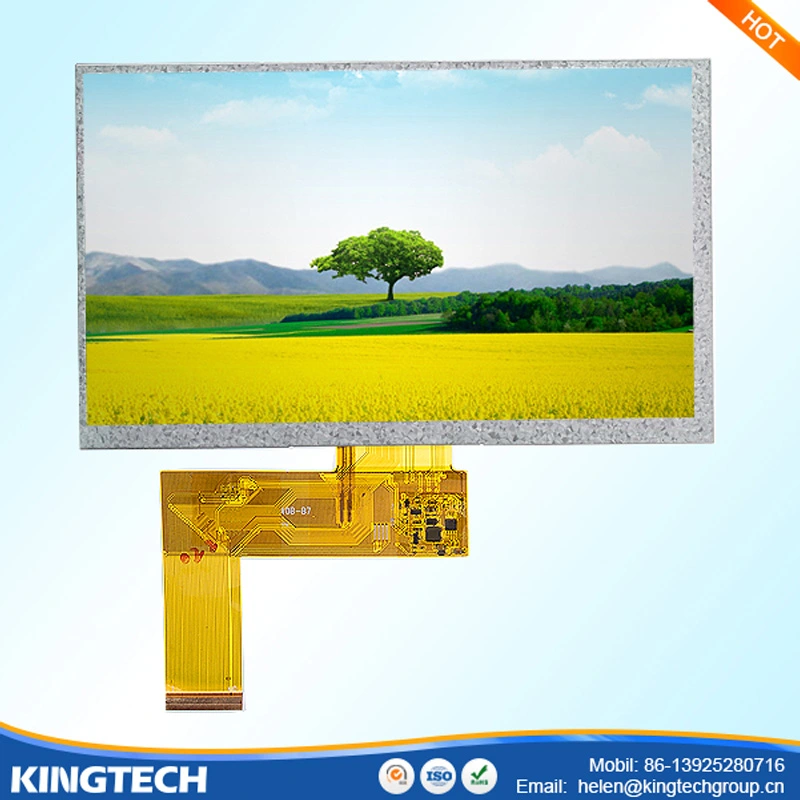

Kingtech 800x480 /WVGA 7 inch TFT LCD display is a common size in the market, the supply is in full stock and stable. The 7 inch TFT screen has the existing resistive touch and capacitive touch. The 7 inch TFT LCD module has HDMI Board. This 7inch TFT display can reach 1000nits and can be sunlight readable.
Kingtech Diaplay has achieved great progress in LCD production and promises to provide the customers with qualified standard displays and satisfying one-stop services. Any requests will be welcomed.
800x480 / WVGA resolution
TN 12 O'clock
Landscape type
High brightness/sun readable LCD/1000nits
Support resistive touch and capacitive touch
HDMI Board
Get a Quote
Documentation
| Item | 7 inch 800*480 TFT module display |
| Model No | PV07002LZR40B |
| Resolution | 800x480 |
| Outline Dimension | 164.9(W)*100(H)*3.5 / 5.7(T) |
| Active Area(mm) | 154.08(W)*85.92(H) |
| Interface | 24-bit Parallel RGB Interface |
| Brightness | 300nits / 1000nits |
| Viewing Angle | 12 O'clock |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally white |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Resistive / capacitive touch screen |
| Board | HDMI board |
The 800x480 / WVGA 7inch TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, Navigator, and E-bike.
The TN 1000nits 7inch TFT LCD display also can be used in sunlight-readable such as advertising machines, and automotive devices.
