Item	7inch 1280X800 IPS MIPI interface display
Model No	PV07015YP24R
Resolution	1280x800

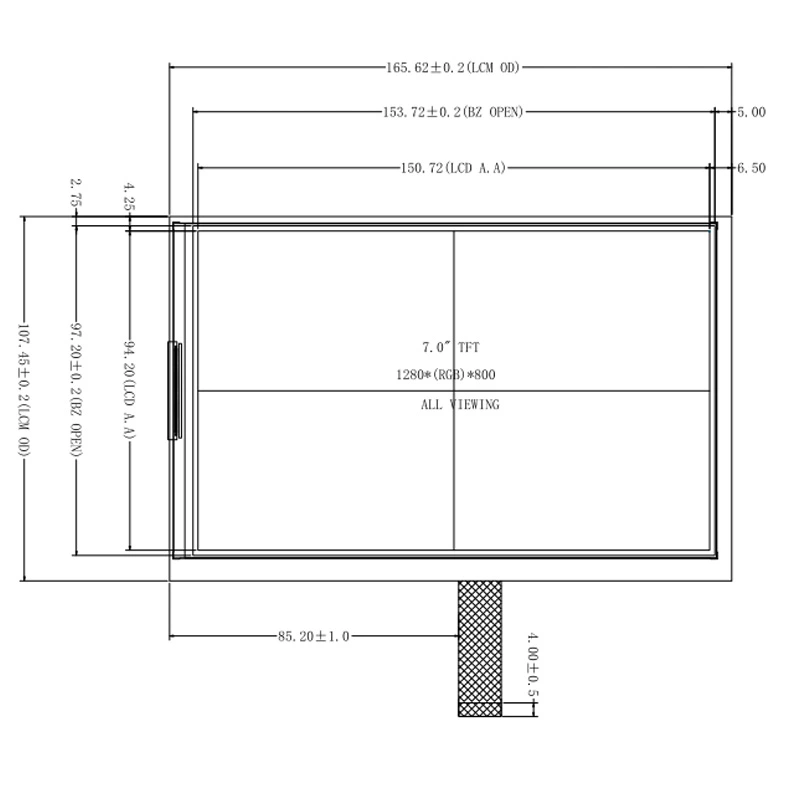

Outline Dimension	1701154.75
Active Area(mm)	150.72*94.2
Interface	MIPI
Driver IC	JD9366
Brightness	300nits
Viewing Angle	All
LED life	50000h
Display Mode	Normally Black
PIN	24
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Touchscreen	Capacitive touchscreen

7inch 1280x800 MIPI Interface IPS Display

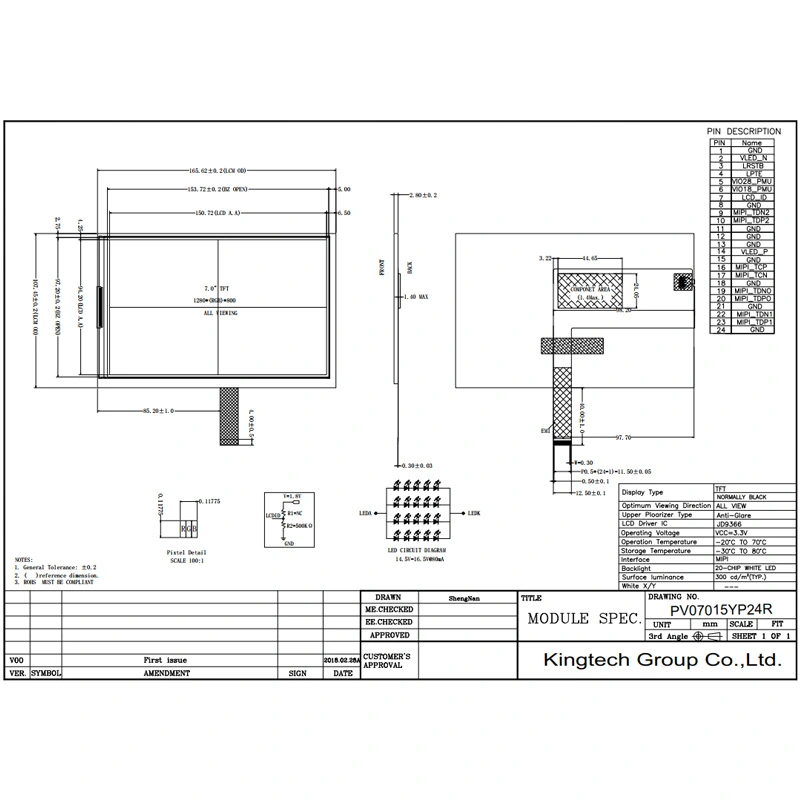

Specification of 7inch 1280x800 MIPI Interface IPS Display

Application of 7inch 1280x800 MIPI Interface IPS Display
