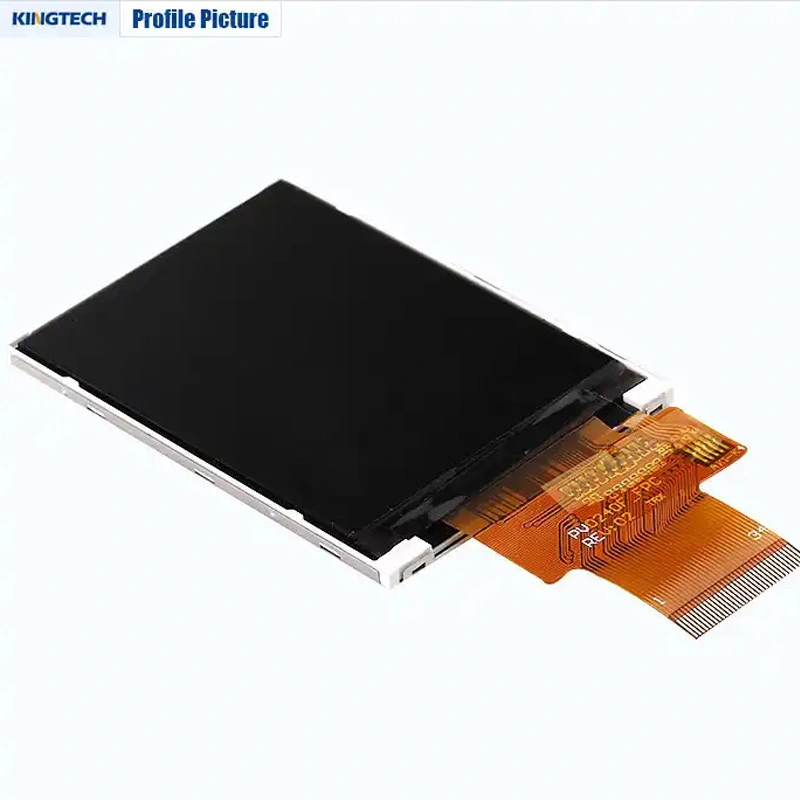

Kingtech 2.4 inch 240*320 resolution TFT LCD display. It with stable production. This 2.4 inch QVGA TFT LCD display supports 16-bits MPU interface, ILI9341V driver IC. It with IPS viewing angle. Mainly application for Smart home, medical, industrial. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD DISPLAY
240*320/QVGA
Stable supply
IPS/Full/Wide/All viewing angle
16-bits MPU interface
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation
| Item | 2.4 inch 240*320 16-bits MPU interface lcd display |
| Model No. | PV0241F2CZ0 |
| Resolution | 240*320/QVGA |

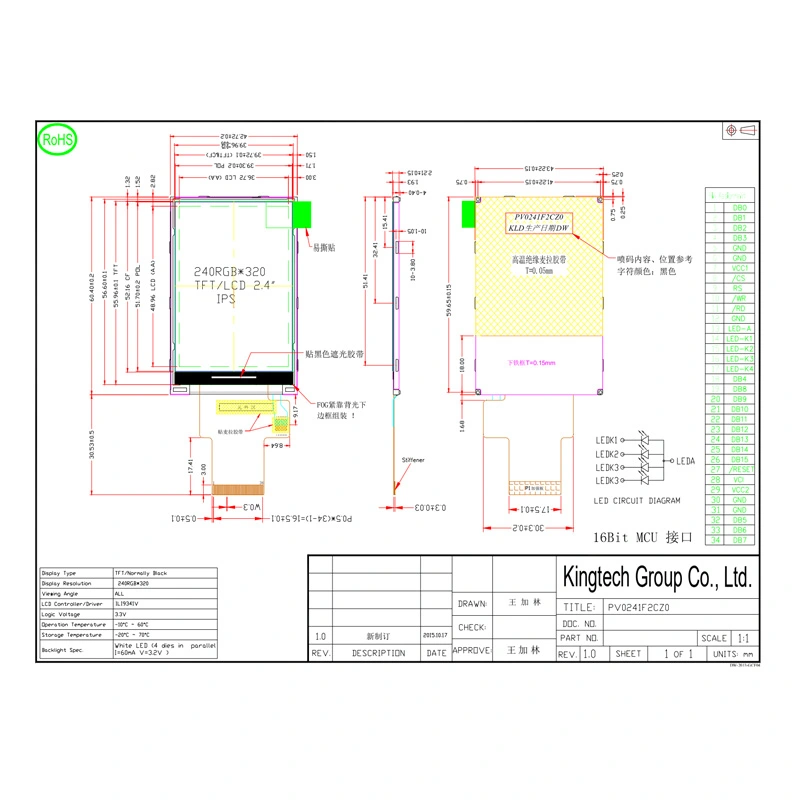

| Outline Dimension (mm) | 60.4*42.72*2.21 |
| Active Area (mm) | 48.96*36.72 |
| Viewing Angle | IPS |
| Brightness | 250nits |
| Interface | 16-bits MPU |
| Backlight | 1*4LED |
| Driving IC | ILI9341V |
| PIN No. | 34 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2.4 inch 240*320/QVGA TFT can be used for Smart home, Medical, hand-held device, industrial or others.
