Kingtech 7inch 800x480 40pin RGB interface 500nits brightness 9309 display supply is very stable. This 7-inch 800x480 display supports RGB interface and a 6 o’clock viewing angle. Connector specification is AFC05-S40FIA-00 or equivalent. The 7-inch WVGA module screen’s working temp is -20°C~+70°C. For the touch part, the 7inch 9309 display has the existing resistive touch and capacitive touch, Kingtech can also custom the touch panel according to the customer’s requirements.
800x480
6 o'clock viewing angle
40pin
500 nits high brightness /Sunlight readable
RGB interface
9309 (LW0700AT9309)
Stable supply
Support resistive touch and capacitive touch
Get a Quote
Documentation

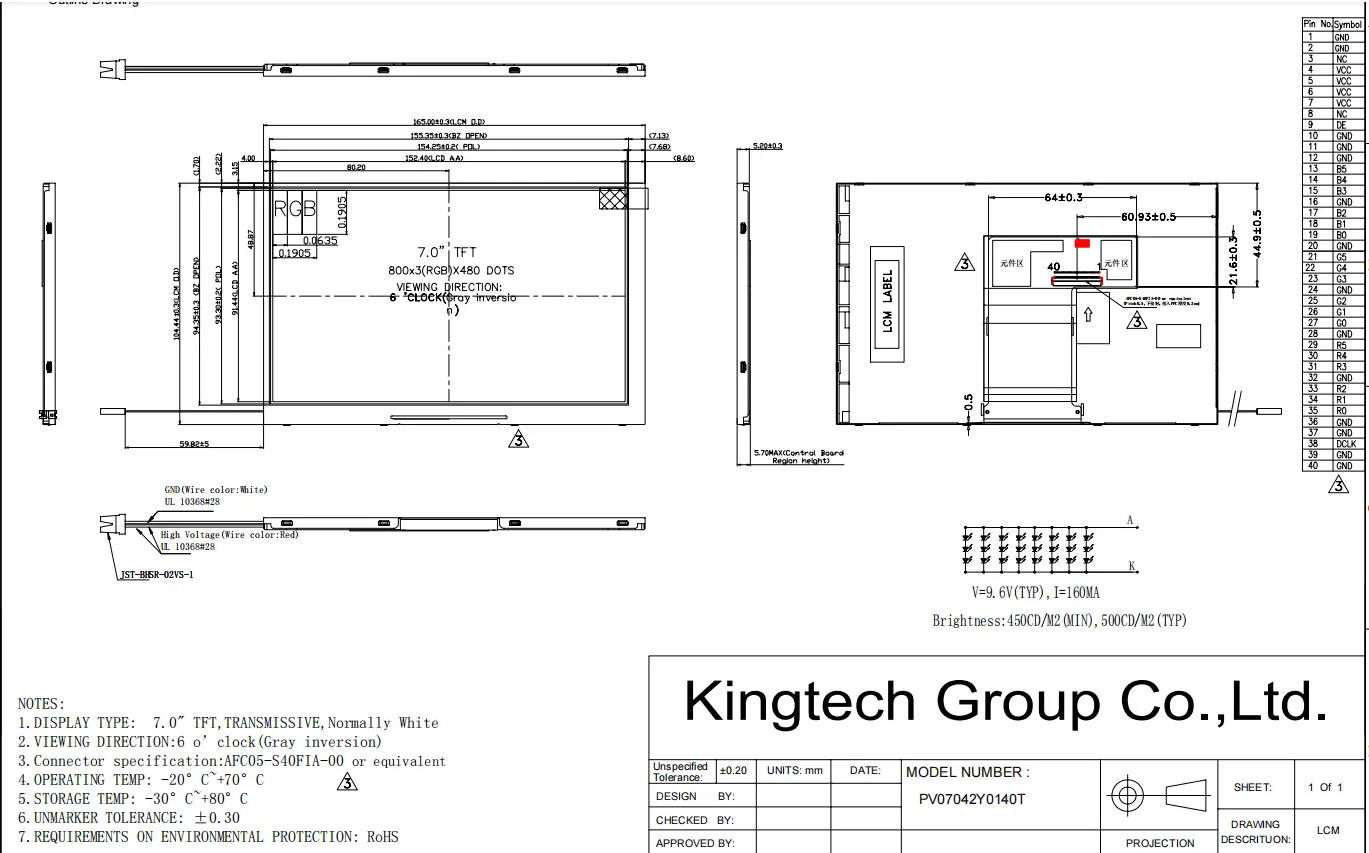

| Item | 7inch 800x480 RGB 9309 LCD display |
| Model No | PV07042Y0140T |
| Resolution | 800x480 |
| Outline Dimension | 165*104.44*5.2 |
| Active Area(mm) | 154.20*91.44 |
| Interface | RGB |
| Brightness | 500 nits |
| Viewing Angle | 6 o’clock |
| Backlight | 8x3LED |
| Display Mode | Normally White |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Support resistive and capacitive touch |
The 7inch 800x480 / / WVGA RGB interface 40PIN 9309 LCD module can be used for agricultural equipment, medical device, game console and smart home etc.
