Kingtech 2.0 inch 176*220 TFT module display supply is very stable. This 2.0 inch supports 8 BIT MCU Interface. In addition, the 2.0 inch TFT display module brightness is 300 nits, and this 2.0-inch screen is TN / 6 O'CLOCK Viewing Angle type. For the touch part, we can also customize capacitive touch according to the customer's requirements.
TFT display
176*220
Stable supply
small/tiny display
8 BIT MCU interface
Smartwatch/wearable/medical/Hand-held
Can custom resistive touch and capacitive touch
Get a Quote

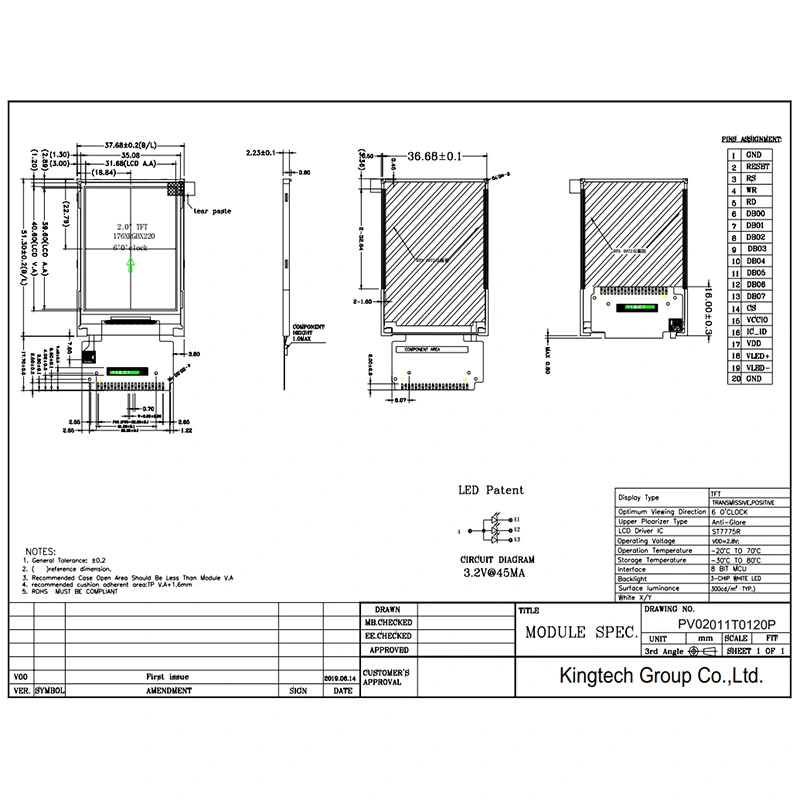

| Item | 2 inch TFT module display |
| Model No | PV02011T0120P |
| Resolution | 176*220 |

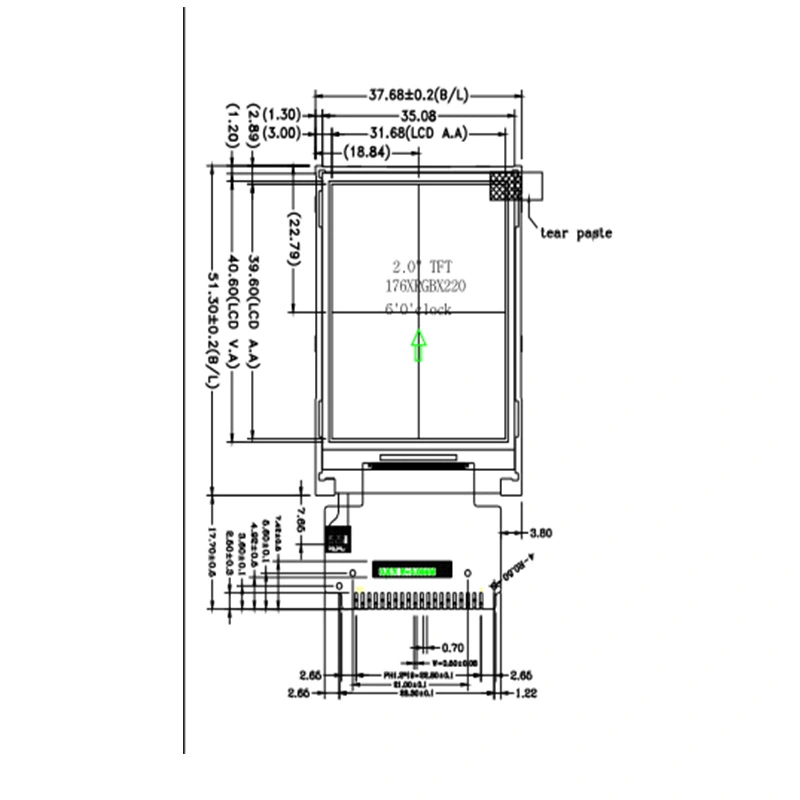

| Outline Dimension | 37.68*51.3*2.23 |
| Active Area(mm) | 31.68*39.60 |
| Brightness | 300 nits |
| Viewing Angle | 6 O’CLOCK |
| Interface | 8 BIT MCU |
| Driving IC | ST7775R |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive and capacitive touch screen |
The 2.0 inch 176*220 TFT display module can be used for Smartwatch, wearable, hand-held and medical equipment.
