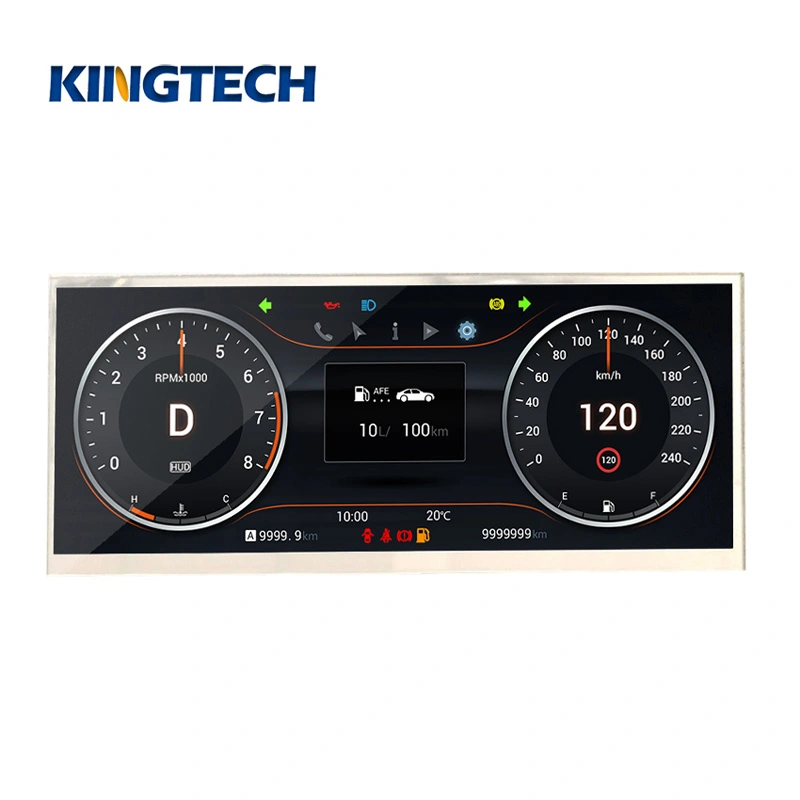

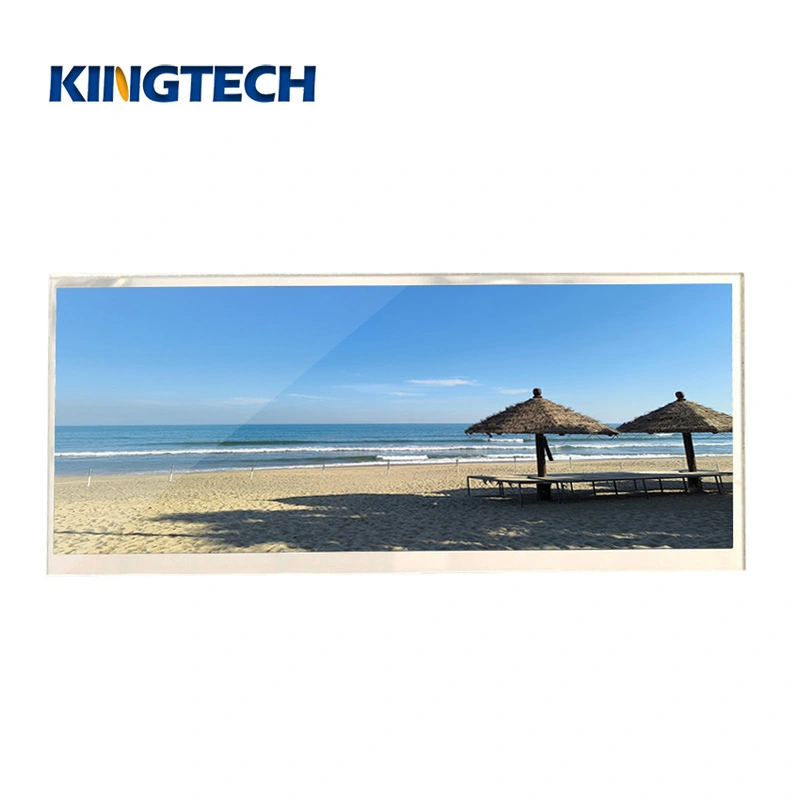

Kingtech 12.3 inch 1920*720 TFT module display supply very stable. This 12.3 inch supports LVDS interface. In addition, the 12.3 inch TFT display module brightness is 1000nits, and this 12.3 inch screen is all viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
1000nits brightness/Sunlight readable/High brightness/Outdoor
-30~80 Wide working temperature
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 12.3inch 1920x720 IPS TFT LCD module |
| Model No. | PV012306T0260H-CO |
| Resolution | 1920*720 |

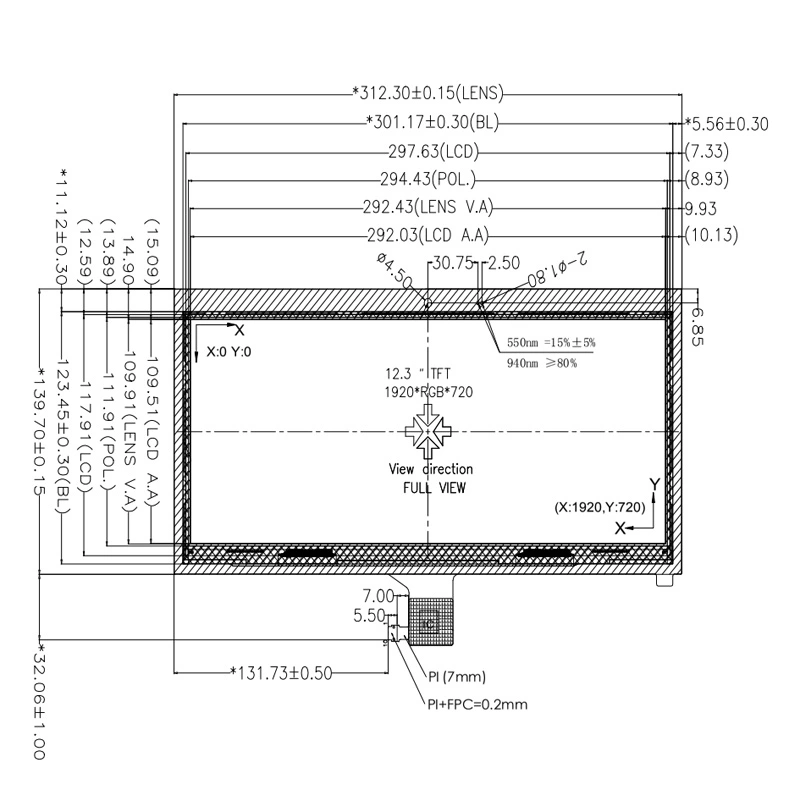

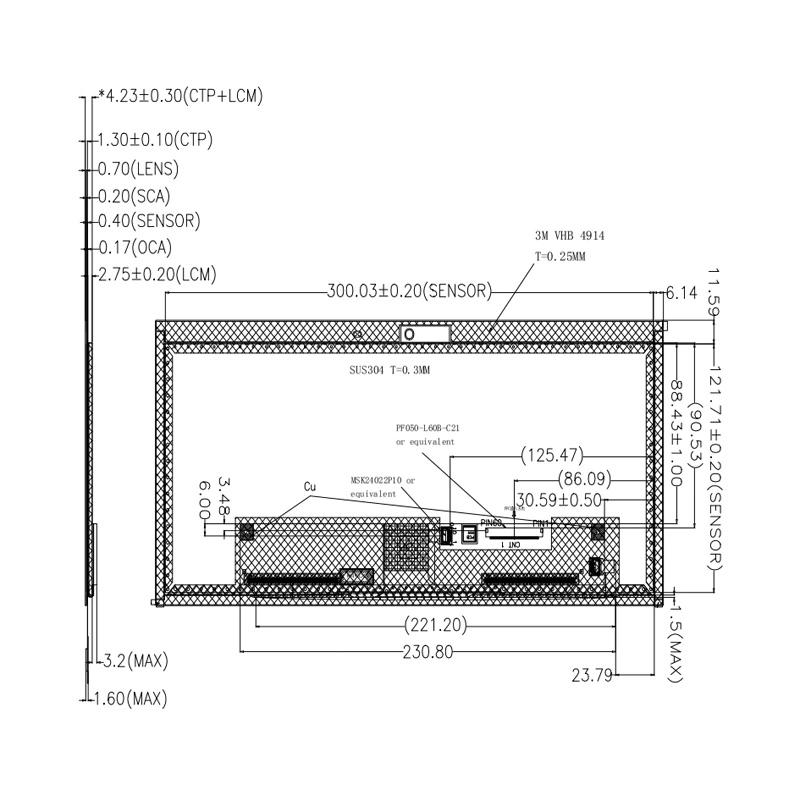

| Outline Dimension (mm) | 312.3*139.70*4.23 |
| Active Area (mm) | 292.03*109.51 |
| Viewing Angle | All |
| Brightness | 380nits |
| Interface | LVDS |
| Backlight | 9*6LED |
| Driving IC | RM5366B |
| PIN No. | 60 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, advertisement and thermostat, video door, automotive, 3D printer |
The 12.3 inch 1920*720 TFT display module can be used for Medical, hand-held device, industrial, advertisement, E-bike, thermostat, video door, automotive and 3D printer.
