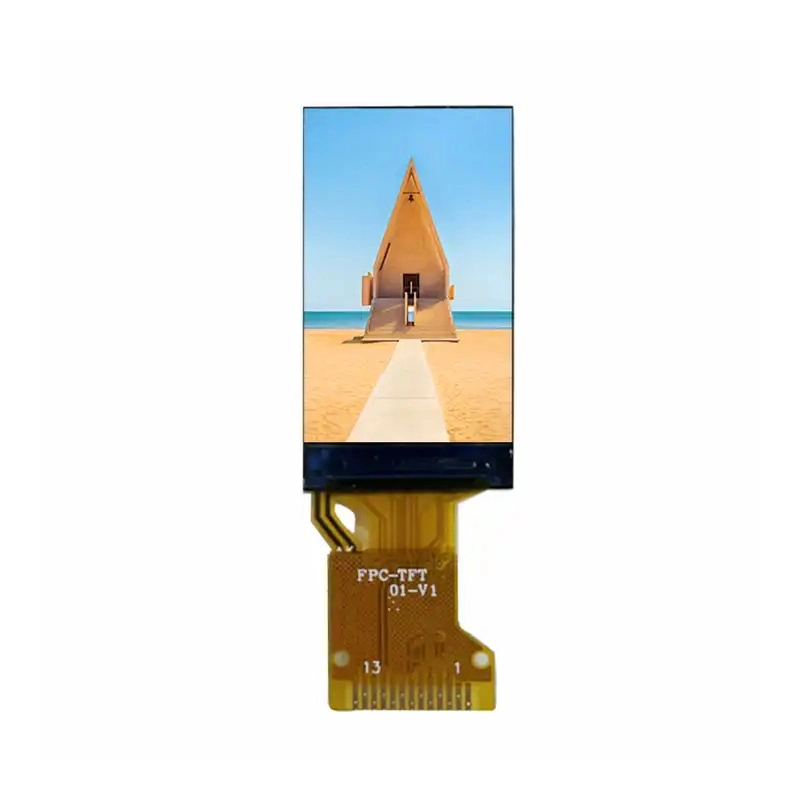

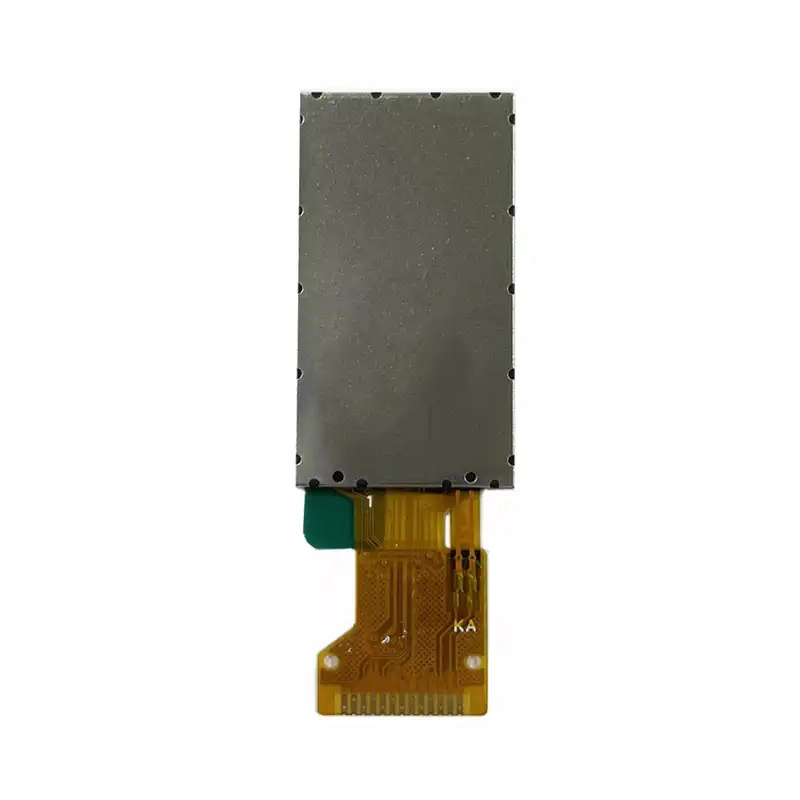

Kingtech 1.06 inch 90x160 resolution LCD display with stable production. This 1.06 inch TFT LCD display supports 4 Line SPI interface, 300nits brightness, GC9107 driver IC. It with TN viewing angle. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD
96x160
Stable supply
TN viewing angle
SPI interface
300nits brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote

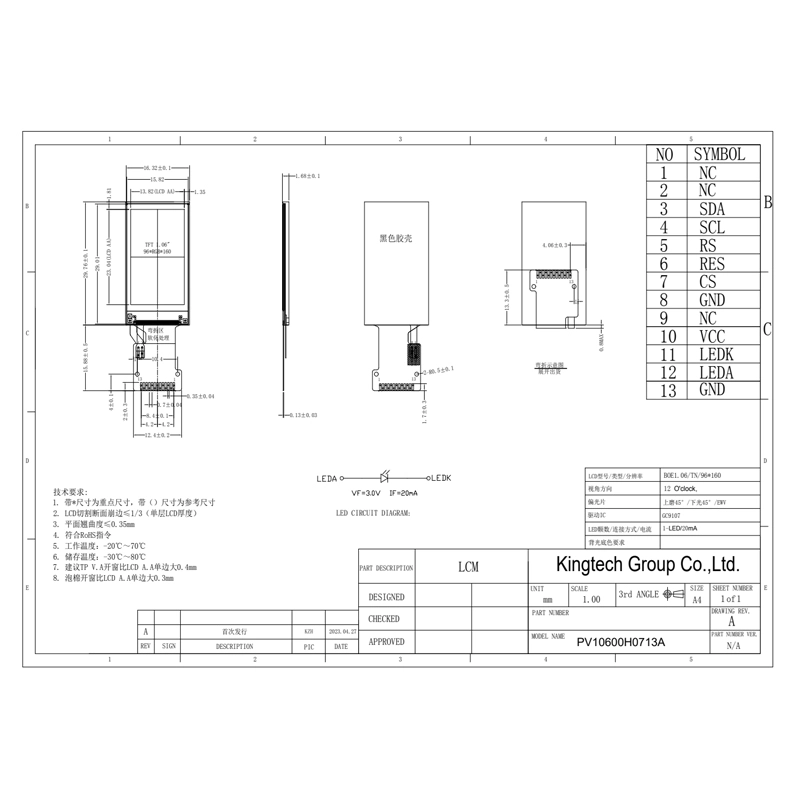

Documentation
| Item | 1.06 inch 96x160 resolution IPS LCD display |
| Model No. | PV10600H0713A |
| Resolution | 80*160 |
| Outline Dimension (mm) | 16.32*29.76*1.68 |
| Active Area (mm) | 13.82*23.04 |
| Viewing Angle | 12 O'clock |
| Brightness | 300nits |
| Interface | 4 line SPI |
| Backlight | 1*1LED |
| Driving IC | GC9107 |
| PIN No. | 13 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 1.06 inch LCD display can be used for Medical, hand-held device, industrial or others.
