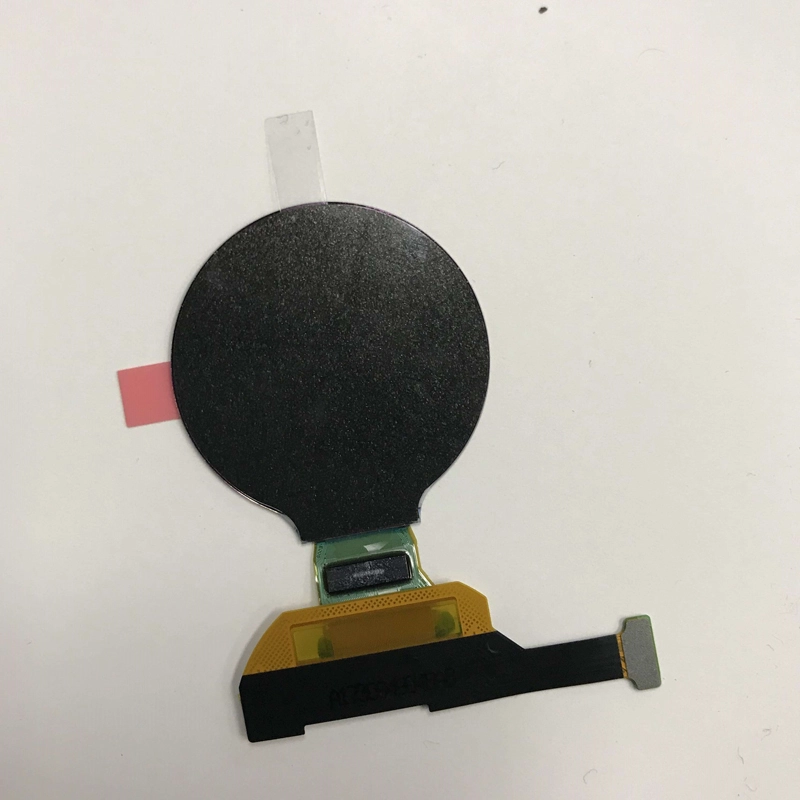

The 1.2inch 390x390 round AMOLED display can be used for wearable device, smart watch, medical equipment, handheld device, the robot, diving watches and smart home etc.
All/Free/Wide viewing angle
Pure round
390x390 resolution
AMOLED display module
Low power consumption
Power saving
Super slim 0.68mm thickness
Support MIPI and SPI interfaces
Application is for a smartwatch
Sunlight readable LCD module
Get a Quote
Documentation
We have achieved great progresses in the field of LCD production. And we promoise to provide the customers with satisfying one-stop services. Any demands for specifications will be welcomed.
| Item | 1.2inch AMOLED lcd screen |
| Model No | PV01202PY24C |
| Resolution | 390x390 |
| Outline Dimension | 33.22(W)×34.72(H)×0.68(T) |
| Active Area(mm) | φ30.42 |
| Brightness | 350nits |
| Viewing Angle | Free |
| Interface | MIPI /SPI |
| Warranty | 12 months |
| Driving IC | RM67162 |
| Display Mode | AMOLED |
| PIN | 24 |
| Operating Temperature | -20~60 |
| Storage Temperature | -30~70 |
The 1.2inch 390x390 round AMOLED display can be used for a wearable device, smartwatch, medical equipment, handheld device, the robot, diving watches, and smart home, etc.
