Kingtech 2.2 inch 240*320 TFT module display supply is very stable. This 2.2 inch supports 18-BIT RGB/MCU Interface. In addition, the 2.2-inch QVGA TFT display module brightness is 200 nits, and this 2.2-inch screen is a 6 O'clock/ TN viewing type. For the touch part, we can also customize capacitive touch according to the customer's requirements.
TFT display
240*320 /QVGA
Stable supply
6 O'clock/ TN
small/tiny display
RGB/MCU
A medical, hand-held device
Can custom resistive touch and capacitive touch
Get a Quote

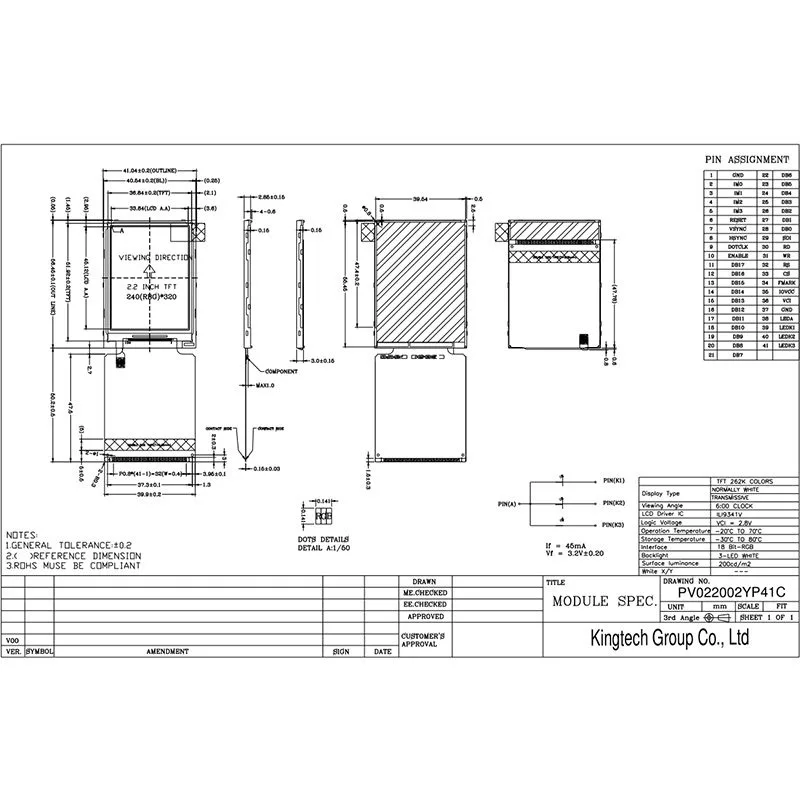

| Item | 2.2 inch TFT module display |
| Model No | PV022002YP41C |
| Resolution | 240*320 |
| Outline Dimension | 56.45*41.04*2.85 |
| Active Area(mm) | 45.12*33.84 |
| Brightness | 200nits |
| Viewing Angle | 6 O'clock/ TN |
| Interface | 18-BIT RGB/MCU |
| Driving IC | ILI9341V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive and capacitive touch screen |
The 2.2 inches 240*320 TFT display module can be used for a medical and hand-held devices.
