Kingtech PV07081D0150F-CT is 7.0inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 800x480. Its driver IC is EK73002&EK9716, supporting RGB interface，50pins. Its backlight is 3*10LED, brightness can reach up to 800nits Typical. It is designed for outdoor application, such as motorcycle, industrial PLC, Advertising display, farm equipment etc.
7.0inch IPS LCD
High brightness /800nits/ Outdoor/Sunlight readable
Compatible Capacitive Touch
Industrial Grade
Get a Quote
Documentation
| Item | High brightness 7inch 800x480 TFT LCD module |
| Model No. | PV07081D0150F-CT |
| Resolution | 800*480 |

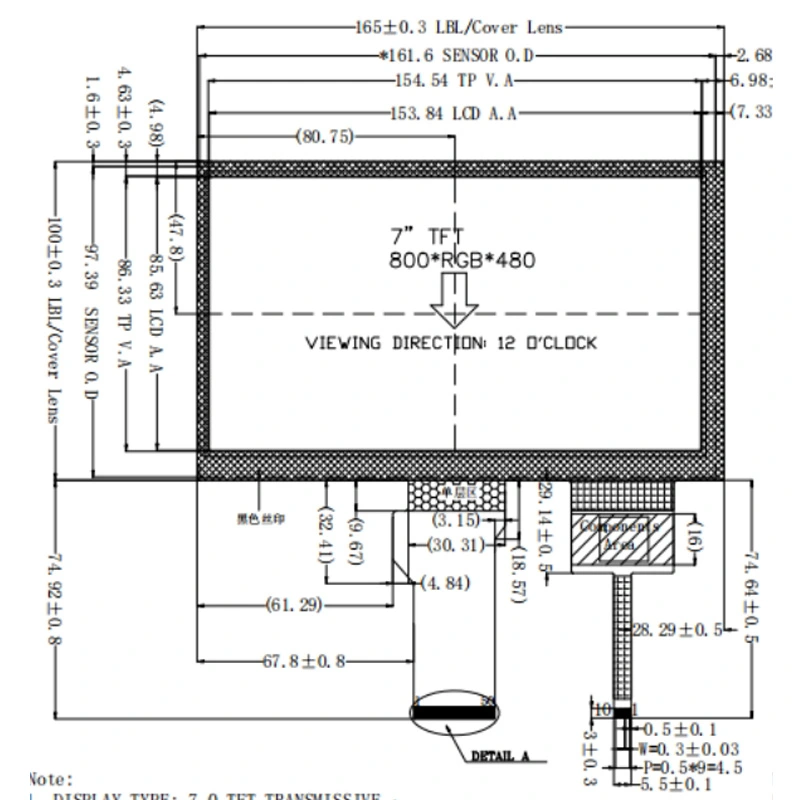

| Outline Dimension (mm) | 165*100*7.45 |
| Active Area (mm) | 153.84*85.63 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | RGB interface |
| Backlight | 3*10LEDs |
| Driving IC | EK73002&EK9716 |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with I2C,ILI2130 |
| Application | Outdoor application, handheld device, E-bike, industrial,Gas euipment |
It is applicable for outdoor application, motorcycle, industrial PLC, Advertising display, farm equipment etc.
