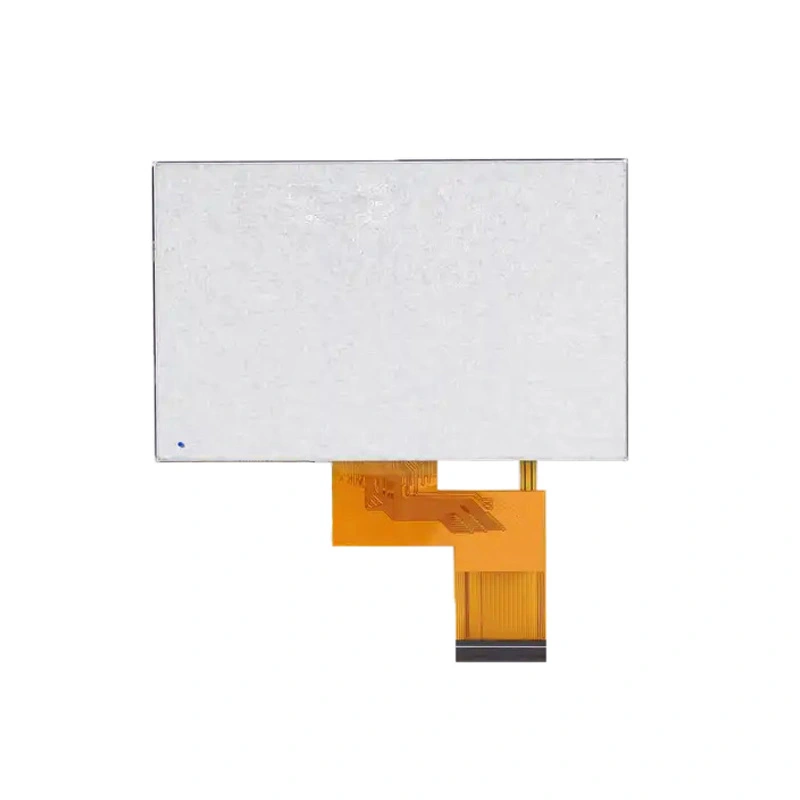

Kingtech 4.3 inch 480*272 TFT module display supply very stable. This 4.3 inch supports RGBinterface. In addition, the 4.3 inch WQVGA TFT display module brightness is 1100nits for outdoor, and this 4.3 inch screen is all viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
WQVGA resolution
1100nits brightness/Sunlight readable/High brightness/Outdoor
-30~80C / Wide working temperature
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 4.3 inch IPS 480*272 TFT display |
| Model No. | PV043031Y0140B |
| Resolution | 480*272 |

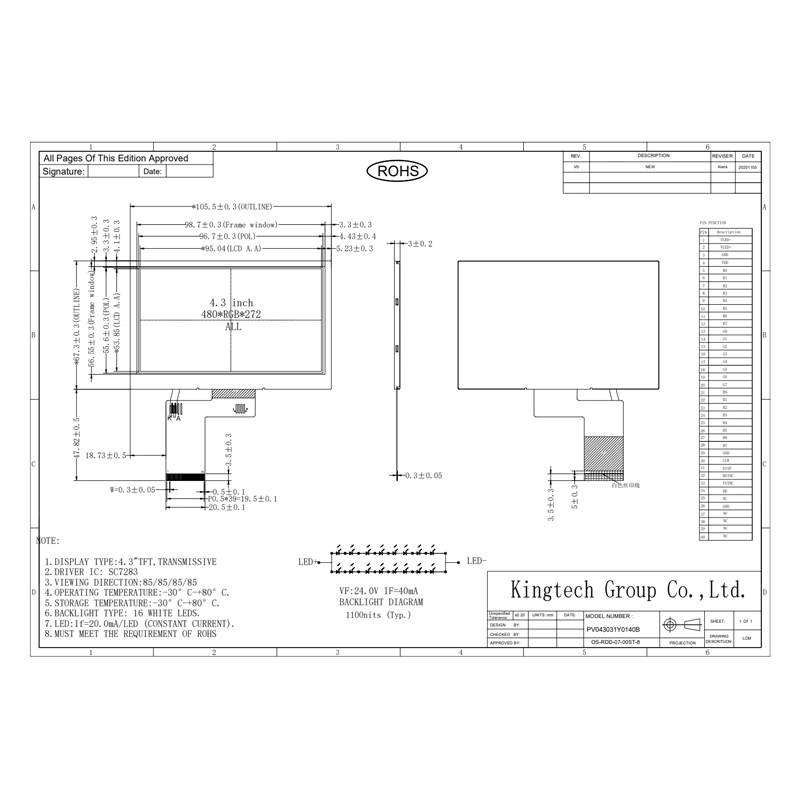

| Outline Dimension (mm) | 105.5*67.3*3 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 1100nits |
| Interface | RGB |
| Backlight | 8*2LED |
| Driving IC | SC7283 |
| PIN No. | 40 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, |
