Kingtech 13.3 inch 1920*1080 TFT display supply very stable. This 13.3 inch supports eDP interface. In addition, the 13.3 inch 1920*1080 TFT display module brightness is 1000 nits, and this 13.3 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
13.3 inchTFT display
1920*1080
Stable supply
IPS/Full/Wide/All viewing angle
eDP interface
1000nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 13.3 inch IPS 1920*1080 TFT display |
| Model No. | PV0133012W0230N |
| Resolution | 1920*1080 |

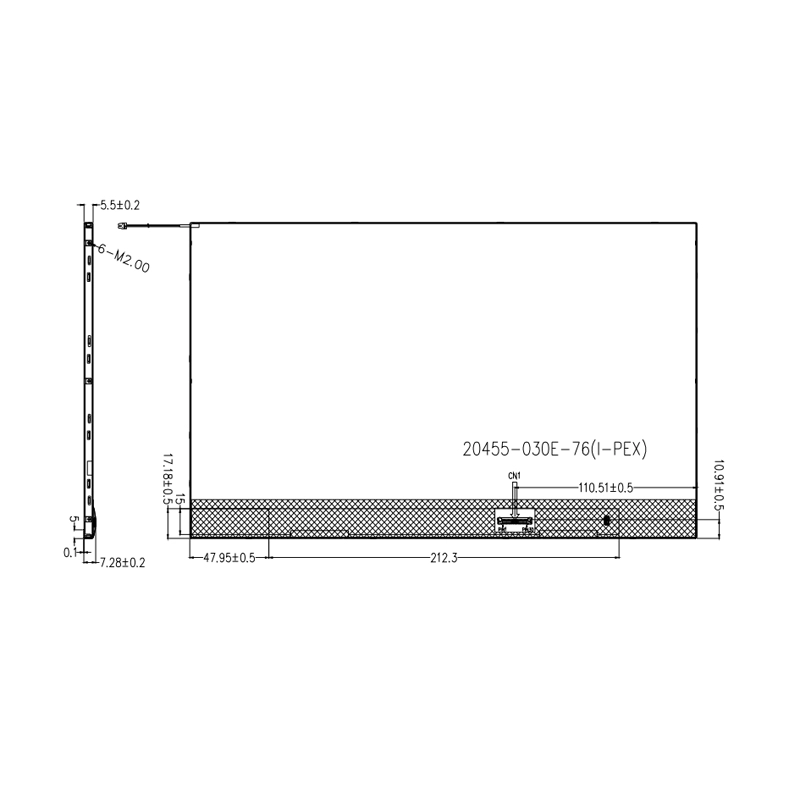

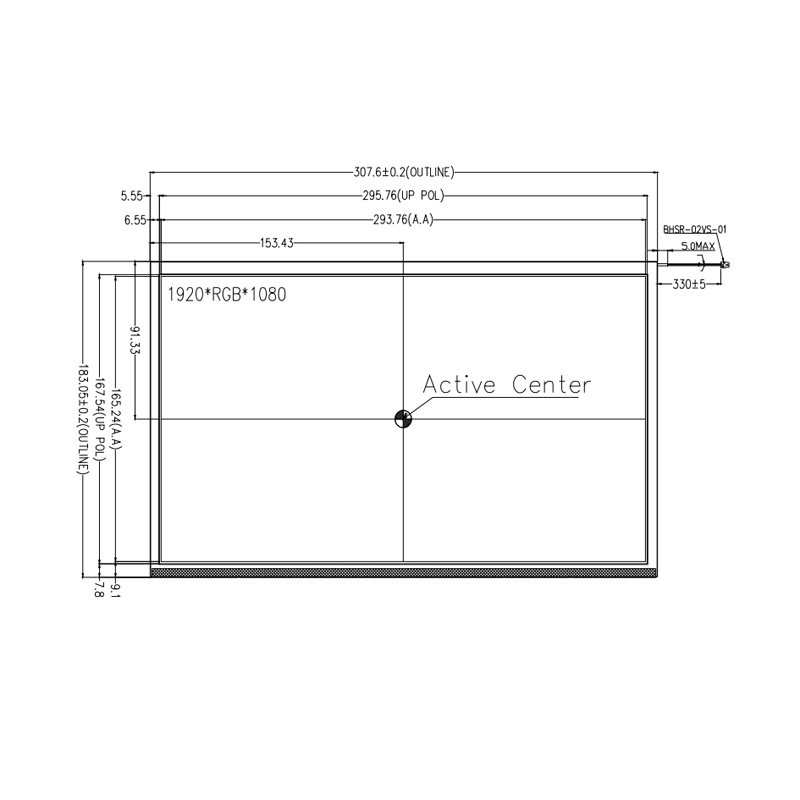

| Outline Dimension (mm) | 307.60*183.05*5.5 |
| Active Area (mm) | 293.76*165.24 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | eDP |
| Backlight | 9*6 LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, |
The 13.3 inch 1920*1080 TFT display module can be used for Medical, hand-held device, industrial or others.
