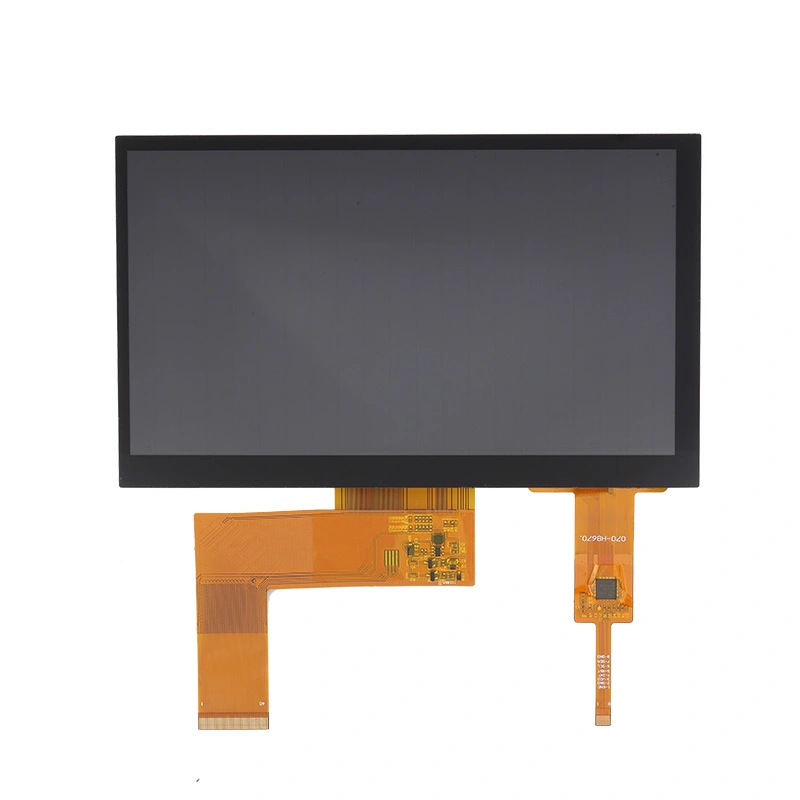

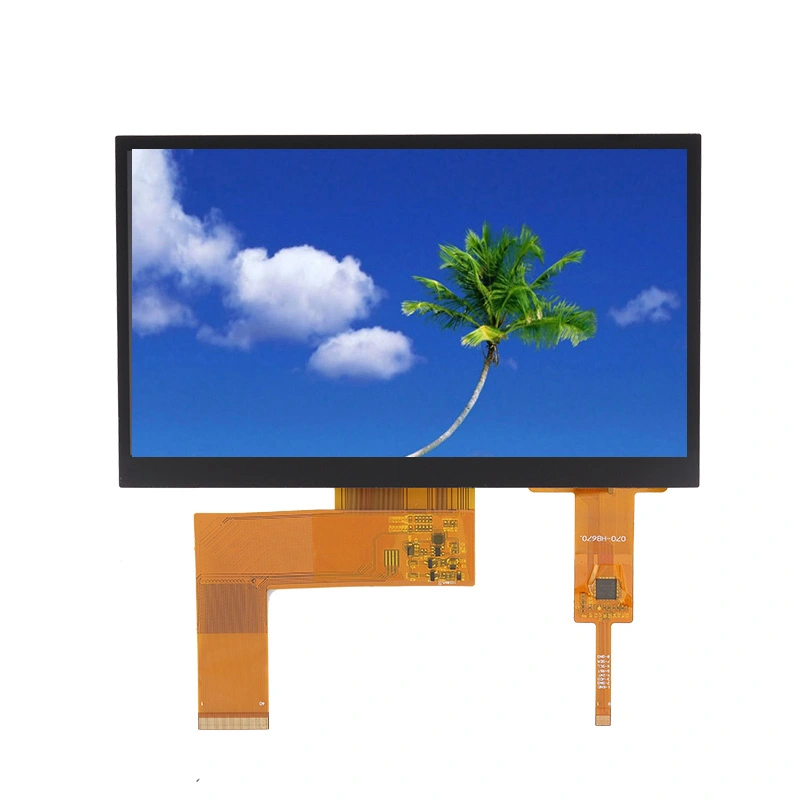

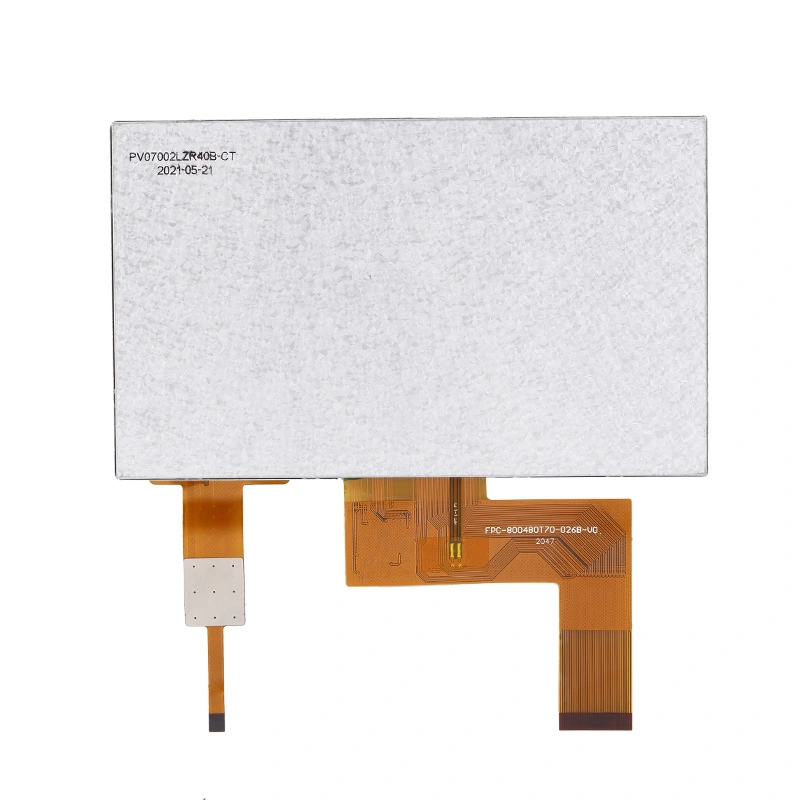

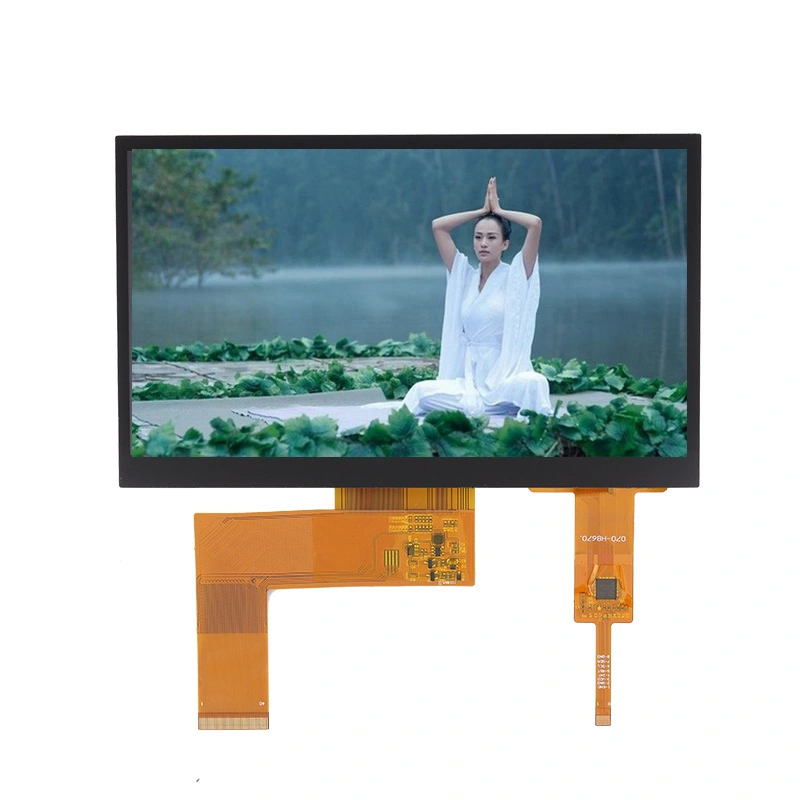

Kingtech PV07042Y0140T is 7 inch 800x480 TFT module display. It is a replacement for Ampire, LW0700AT9309. LCD panel is TN, 12 o’clock viewing angle. Its brightness is 500nits with 3 parallel lines of 8 serial LED. It supports 18-BIT RGB interface, 40pins. For the touch part, it has a fitted capactive touch. So we can provide with and without touch version.
TN TFT LCD display
800x480 /WVGA
Stable supply
12 O'clock
18 bit RGB interface
500nits brightness/High brightness/Sunlight readable/Outdoor
With/without capacitive touch
Industrial equipment such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator
Get a Quote
Documentation
| Item | 7.0 inch TFT 800x480 module display |
| Model No. | PV07042Y0140T |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165*104.44*5.20 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | 12 O'clock |
| Brightness | 500nits |
| Interface | RGB 18bit |
| Backlight | 3*8LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support custom capative touch and resistive touch |
| Application | Industrial equipment, small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator, |
The 7 inch 800x480 WVGA TFT display module can be used for Industrial equipment such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator.
