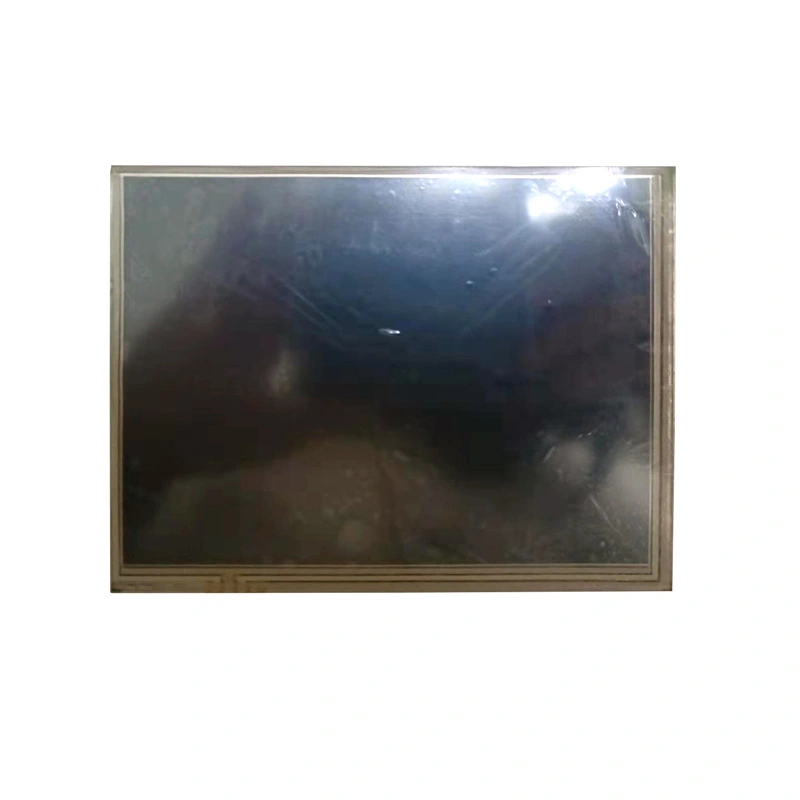

Kingtech 5.7 inch 640*480 LCD display supply is very stable. This 5.7-inch module is an 18-BIT RGB interface. In addition, the 5.7inch TFT 6 O'clock LCD brightness is 560nits, it can be sunlight readable and outdoor device. For the touch part, Kingtech can custom the touch according to the customer's requirements.
18-BIT RGB interface
640*480 / VGA resolution
HX8250-A*2+HX8678B IC
Can custom capacitive/resistive touchscreen
High brightness/Sunlight readable/Outdoor/560nits
Get a Quote

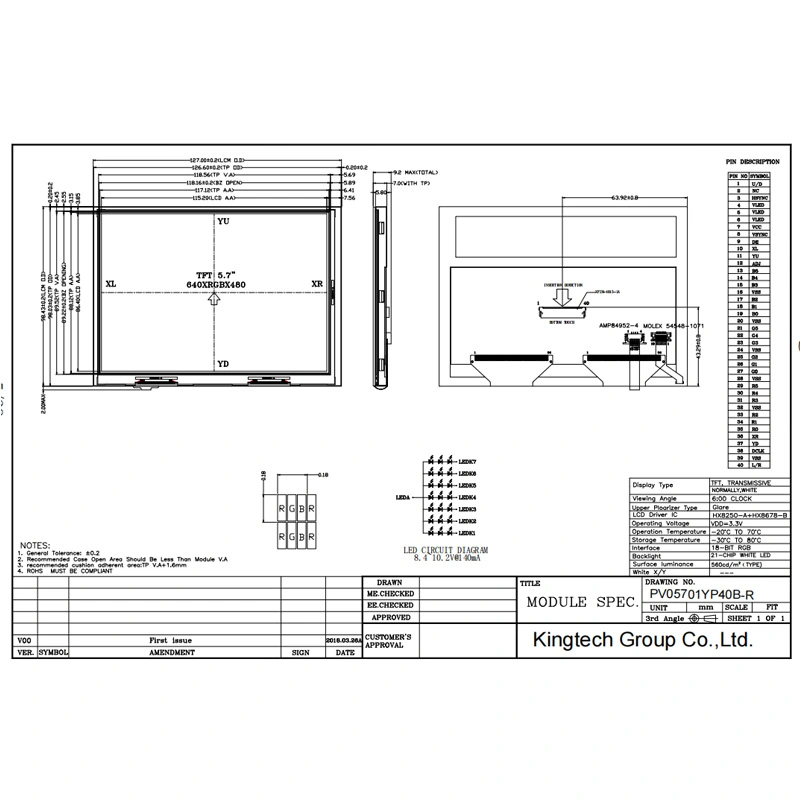

Documentation
| Item | 5.7 inch 640*480 LCD module |
| Model No | PV05701YP40B-R |
| Resolution | 640*480 |
| Outline Dimension | 127.00*98.43*9.20 |
| Active Area(mm) | 115.20*86.40 |
| Interface | 18-BIT RGB |
| Driver IC | HX8250-A*2+HX8678B |
| Brightness | 560nits |
| Viewing Angle | 6 O'clock |
| LED life | 30000h |
| Display Mode | Transmissive |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.7 inch 640*480 LCD module can be used for agricultural equipment, medical device, game console, sunlight-readable, outdoor and smart homes, etc.
