Kingtech 2.8 inch 240x320 TN LCD display supply is very stable. This 2.8inch supports the MCU interface. In addition, the 2.8inch QVGA TFT is 600nits high brightness, it can be sunlight readable. The 2.8inches module can custom resistive touch and capacitive touch according to the customer requirements. The 2.8inch vertical 262K color LCD screen can be used in medical, industrial, hand-held, e-bike, outdoor, and others.
262K / TFT LCD / 12 o’clock
240x320 / QVGA
Vertical / Portrait
High brightness / Outdoor / Sunlight readable / 600nits
Stable supply
Can custom resistive and capacitive touch screen
Can be used for medical, industrial, hand-held, e-bike, and others.
Get a Quote
Documentation

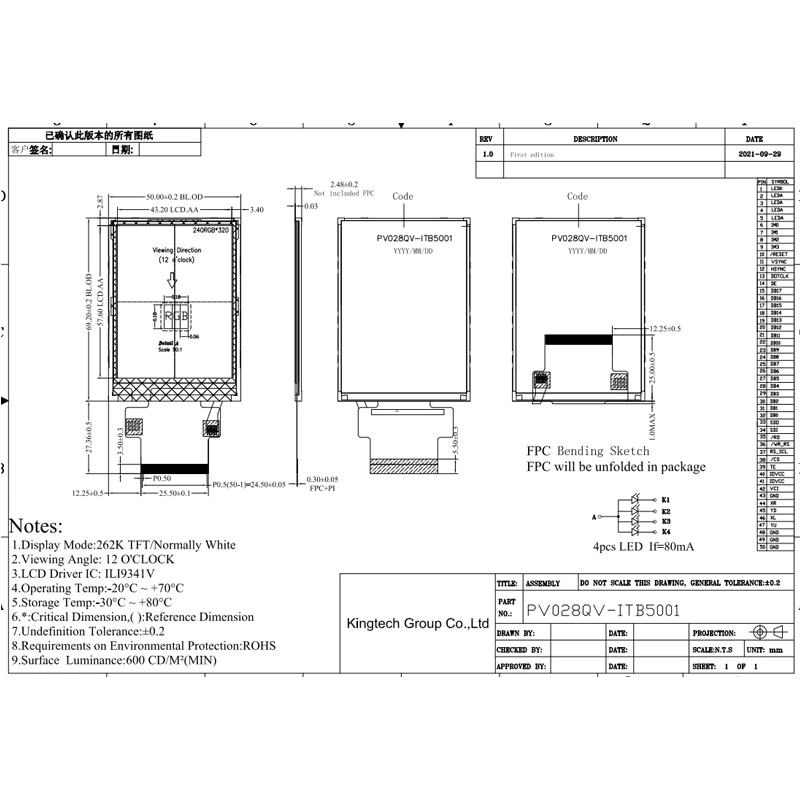

| Item | 2.8inch 240x320 ILI9341V high brightness display |
| Model No | PV028QV-ITB5001 |
| Resolution | 240x320 |
| Outline Dimension | 50(W)× 69.2(H)× 2.48(T) |
| Active Area(mm) | 43.2(W)× 57.60(H) |
| Interface | MCU |
| Driver IC | ILI9341V |
| Viewing Angle | 12 o'clock |
| LED No. | 1*4 LEDs |
| Display Mode | 262K color TFT / Transmissive / Normally white |
| PIN | 50 |
| Brightness | 600nits |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive touch and capacitive touch |
The 2.8inch QVGA high brightness TFT LCD display module can be used for medical, industrial, hand-held, e-bike, POS machines, E-bike, outdoor, and others.
