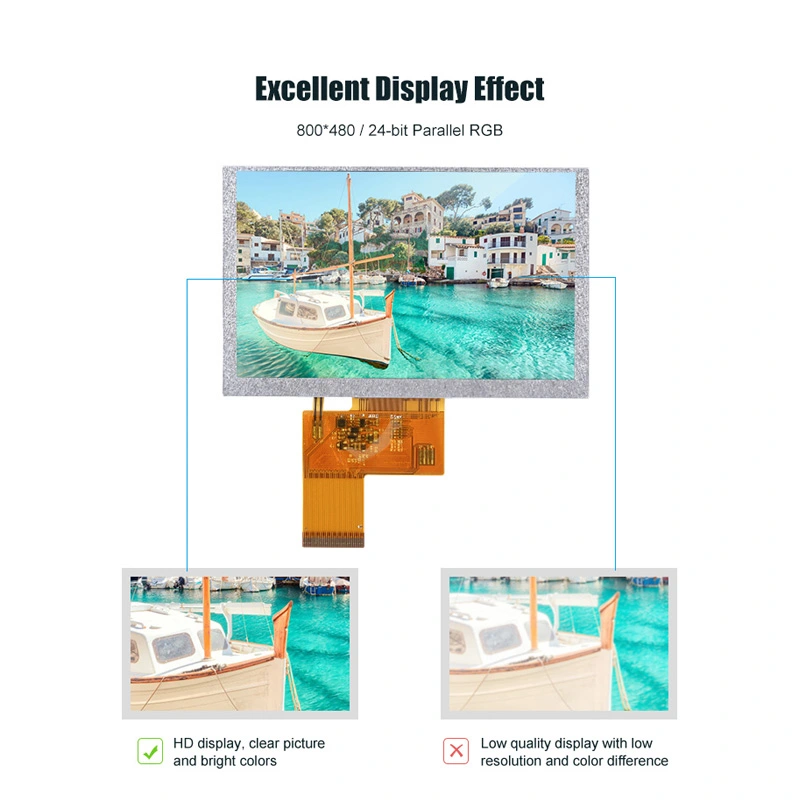

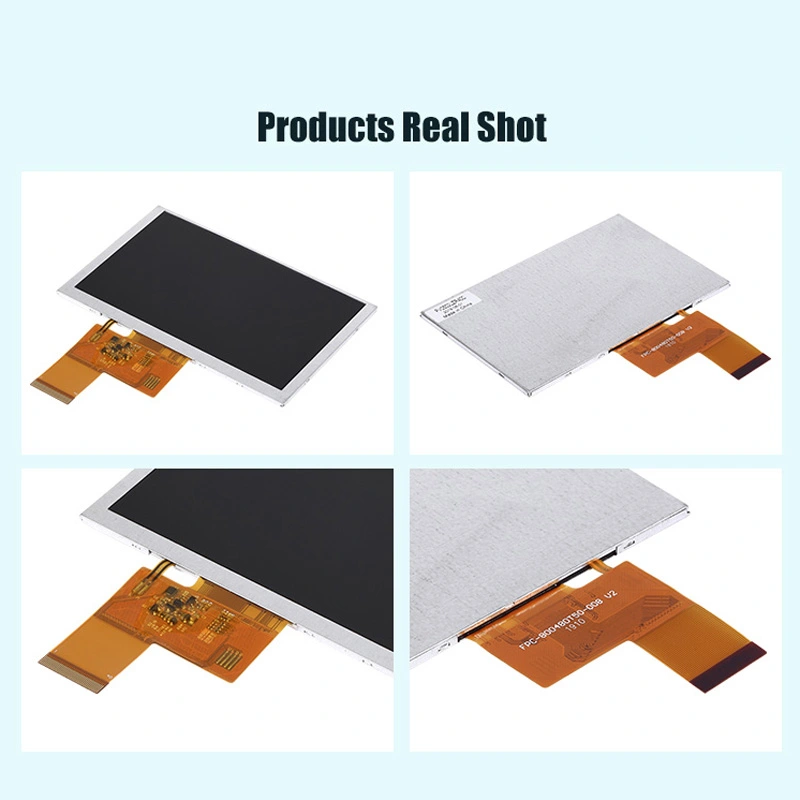

Kingtech PV050800480-HMI Board is a 5.0-inch LCD module using IPS TFT-LCD technology. Its resolution is 800x480/WVGA, landscape type. It has full/All/Wide viewing angle, users can view the display well from every side. It has a relative high brightness of 300nits~1000nits. It supports UART, USB interfaces. .It is with capacitive touch screen.
5.0inch 800*480/WVGA display

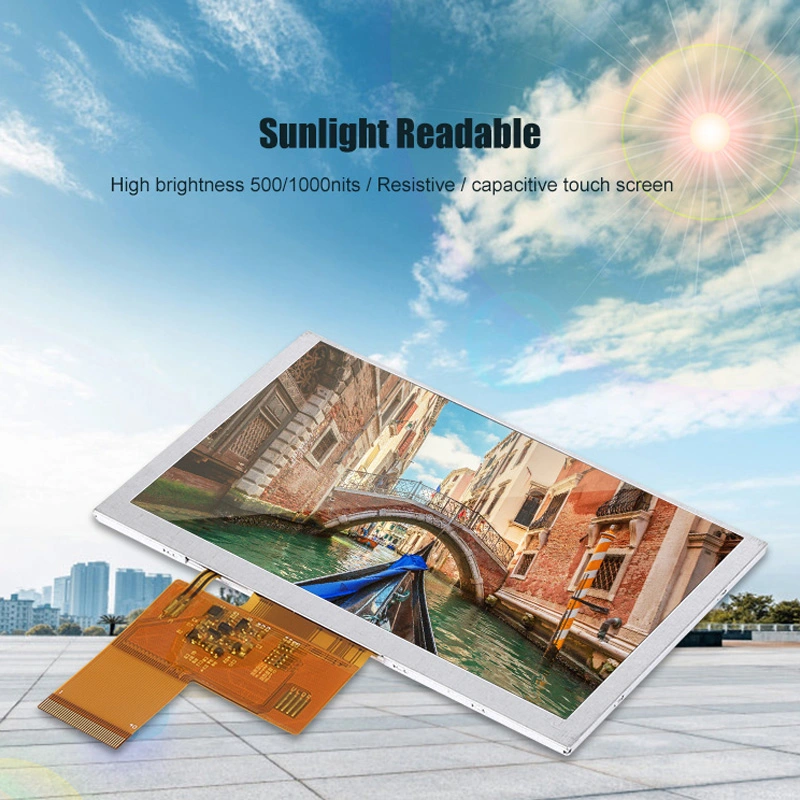

High brightness/Sunlight readable/Outdoor/300~1000nits
Stable supply
All/Wide/Full/IPS viewing angle
UART/USB interfaces
HMI board/Single convert board
With capacitive touch
Get a Quote
Documentation
| Item | 5.0inch 800x480 with capactive touch with HMI board |
| Model No. | PV050800480-HMI Board |
| Resolution | 800x480 |
| Outline Dimension (mm) | 136.1*80.8*8.45 |
| Active Area (mm) | 109*65.8 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | USB/UART |
| Backlight | 8*3LED |
| Pin nums | 20pins |
| Driving IC | FT813+ST7265/FT5426 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | without |
| Application | industrial,meter, camera,medical, outdoor device,Security device,Farm machine,etc |
PV050800480-HMI Board is applicable for industrial, meter, camera, medical, outdoor device, Security device, Farm machine etc.
