Kingtech 7inch RGB interface 800x480 resolution TN83 LCD display screen supply is very stable. This 7-inch 800x480 screen is RGB interface. It is 6 o’clock viewing angle. The connector is AFC05-S40FIA-00. The 7 inch WVGA display module operating temperature is -20°C~+70°C. For the touch part, the 7inch TN 83 screen has existing resistive touch and capacitive touch. Kingtech can also custom the TN83 LCD touch screen according to the customer’s requirements.
800x480 /WVGA resolution
6 o'clock viewing angle
40pin
RGB interface
TN83 (AT070TN83 V.1)
Stable supply
Support resistive touch and capacitive touch
Get a Quote
Documentation

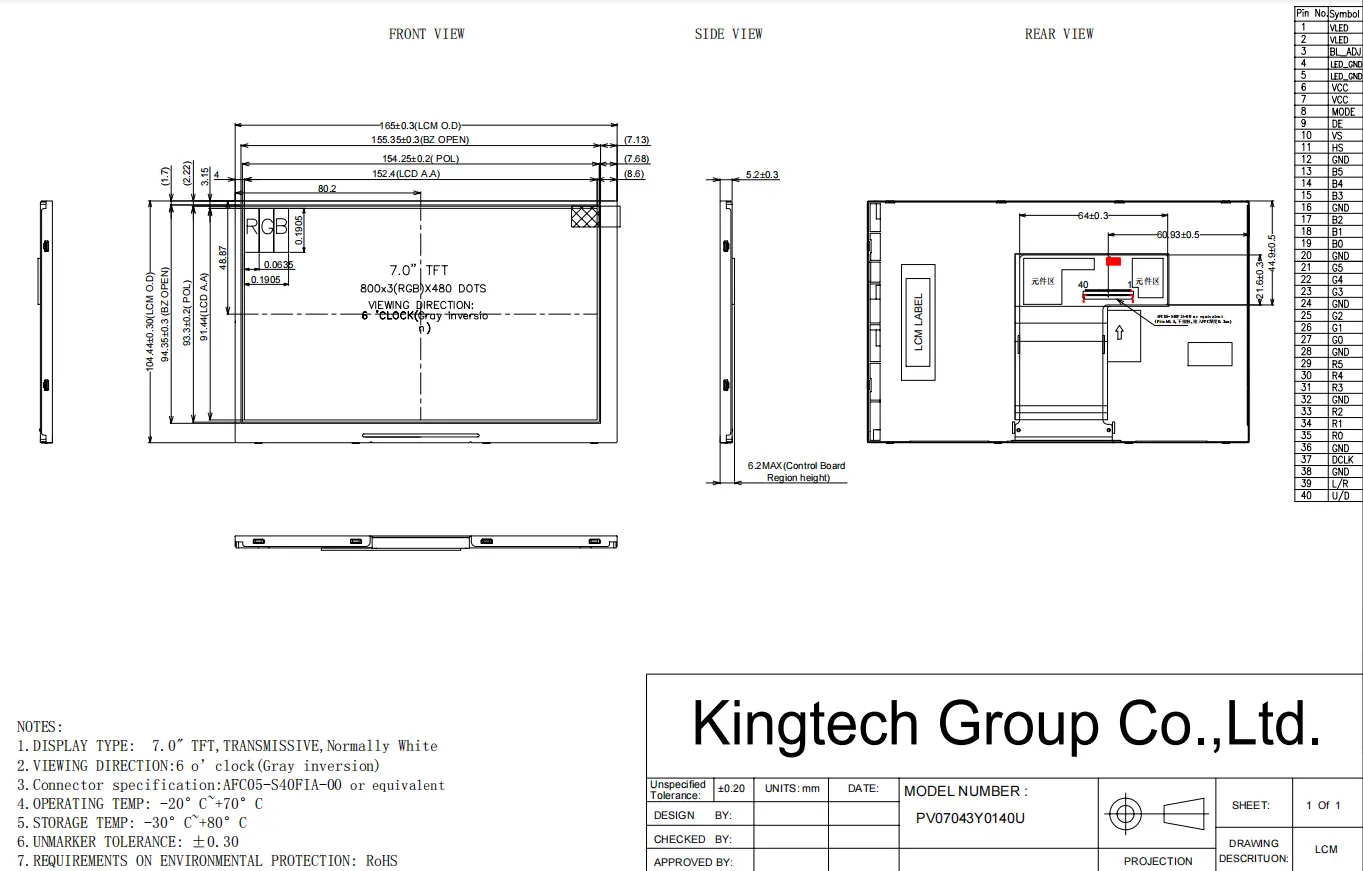

| Item | 7inch 800x480 resolution TN83 LCD display |
| Model No | PV07043Y0140U |
| Resolution | 800x480 / WVGA |
| Outline Dimension | 165*104.44*5.2 |
| Active Area(mm) | 154.20*91.44 |
| Interface | RGB |
| PIN | 40 |
| Display Mode | Normally White |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Support resistive and capacitive touchscreen |
The 7inch RGB interface 800x480 / WVGA 40PIN TN83 LCD module can be used for agricultural equipment, medical device, game console and smart home etc.
