Kingtech 1.47inch 240x180 resolution TFT LCD display. It with stable production. This 1.74 inch TFT LCD display supports MCU interface, HX8347D driver IC. It with 8:00 viewing angle. Mainly application for Smart home, hand-held device, E-bike for outdoor devices. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Small LCD display
IPS /All/Wide/Free viewing angle
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
240x180 resolution
Tranflective/ Sunlight readable/Outdoor
Get a Quote
Documentation

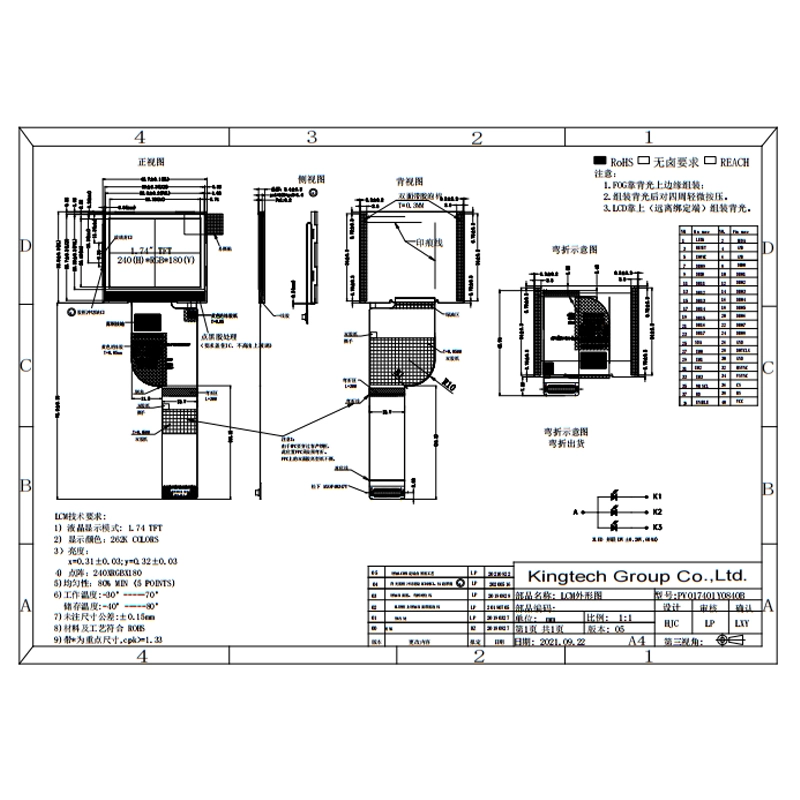

| Item | 1.74 inch 240x180 MCU small LCD display Transflective display |
| Model No. | PV017401Y0840B |
| Resolution | 240*180 |
| Outline Dimension (mm) | 40.70*35.50*2.26 |
| Active Area (mm) | 35.28*26.46 |
| Viewing Angle | 8 O'clock |
| Brightness | / |
| Interface | MCU |
| Backlight | 1*3LED |
| Driving IC | HX8347D |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch, E-bike |
The 1.47inch 240x180 transflective LCD display used for Smart watch, Medical, smart home, E-bike, outdoor, hand-held device, industrial or others.
