Kingtech 7inch 1200x1920 IPS MIPI interface LCD screen with capacitive touch supply is very stable. This 7inch high resolution display supports MIPI interface. The Driver IC is R69429, and the brightness is 300nits. It is All/Free/Wide viewing angle/IPS type. For the touch part, this is capacitive touch screen and optical bonding, and also can custom the touch according to the customer’s requirements.
1200x1920 / high resolution
Stable supply
Vertical / Portrait screen
IPS/All/Free/Wide viewing angle
R69429 Driver IC
MIPI interface
Capacitive touch screen/ optical bonding
Smart Home/ Industrial
Get a Quote
Documentation
| Item | 7inch 1200x1920 vertical capacitive touch screen |
| Model No | PV07039T0231Q-CO |
| Resolution | 1200x1920 |

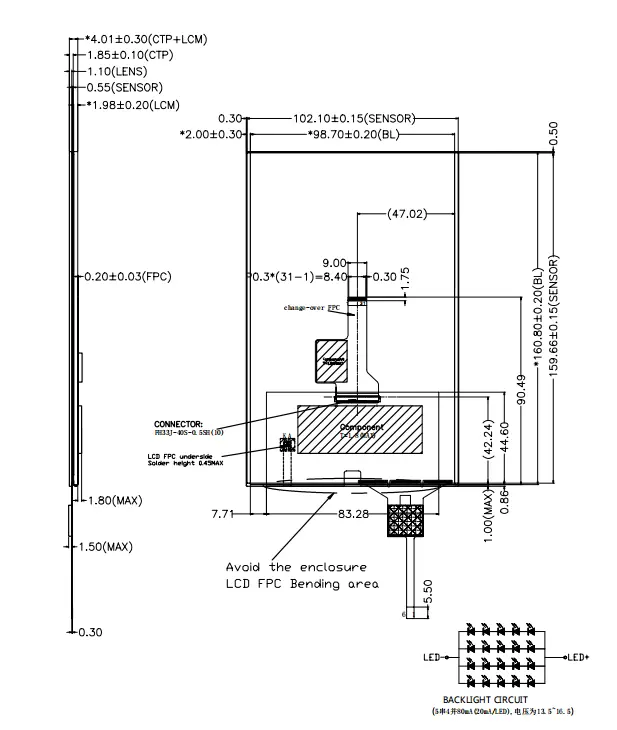

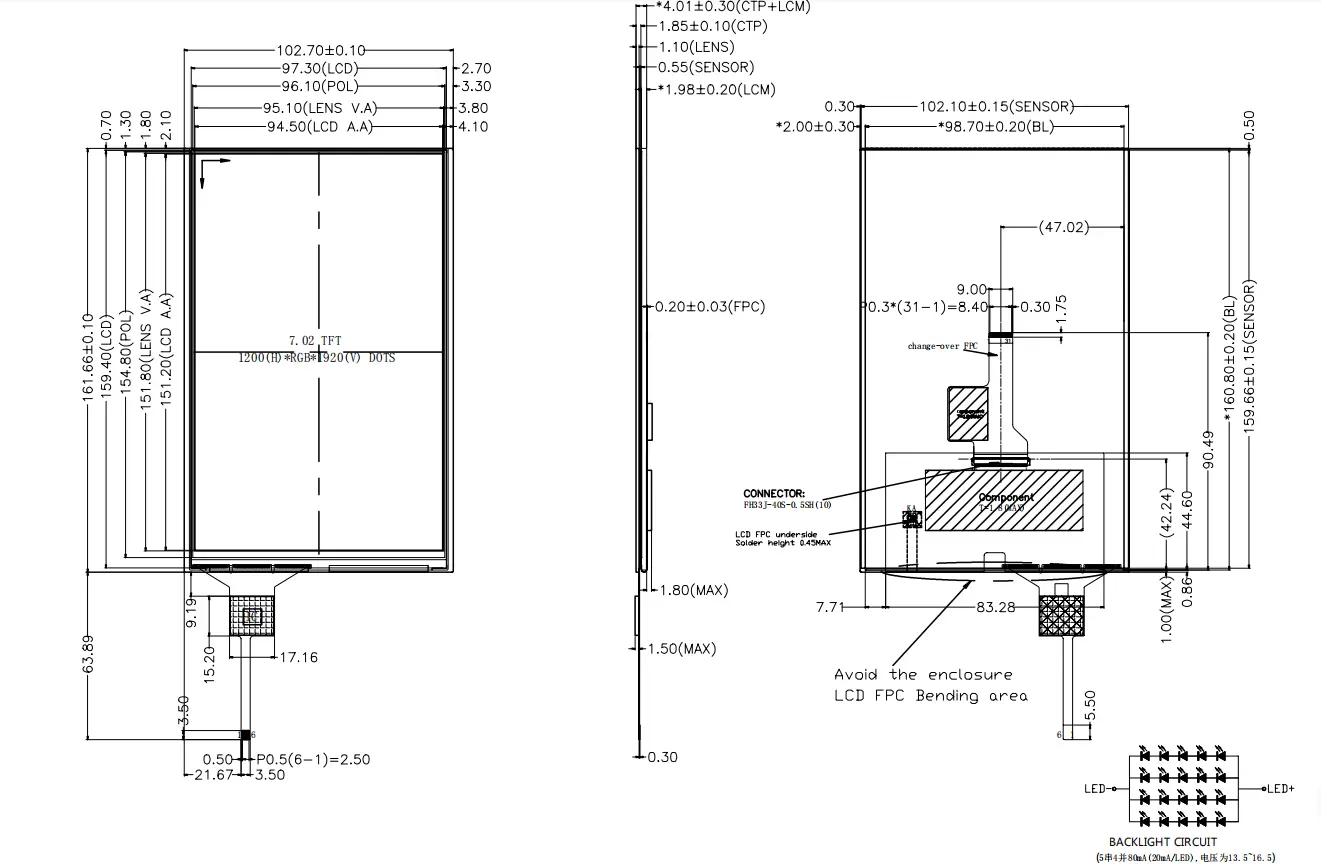

| Outline Dimension | 102.70*161.66*4.01 mm |
| Active Area(mm) | 94.50*151.20 mm |
| Interface | MIPI |
| Brightness | 300nits |
| Viewing Angle | All |
| Driver IC | R69429 |
| PIN | 31 |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Touchscreen | Capacitive touch / Optical bonding |
The 7inch 1200x1920 vertical capacitive touch display can be used for agricultural equipment, medical device, game console, outdoor, E-bike and smart home etc.
