Kingtech 10.1 inch 1280*800 Innolux IPS TFT module supplys very stable. The 10.1inch display supports LVDS interface. The driver IC is EK79202 and the brightness is 800nits. It’s high brightness/sunlight readable/outdoor display. Moreover, the life-time of 10.1 inch TFT module is 30000h, and this 10.1 inch Innolux LCD is All/Free/Wide viewing angle/IPS type. For the touch part, the 10.1inch TFT module has capacitive touch, and Kingtech can also custom the touch according to the customer’s requirements.
All/Free/Wide/Full viewing angle/IPS
1280x800 / WXGA
Stable supply
High brightness / Sunlight readable / Outdoor / 800nits
Unit price cheaper
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 10.1inch 1280x800 IPS Innolux TFT module |
| Model No | DW1010B6Z0 |
| Resolution | 1280x800 / WXGA |

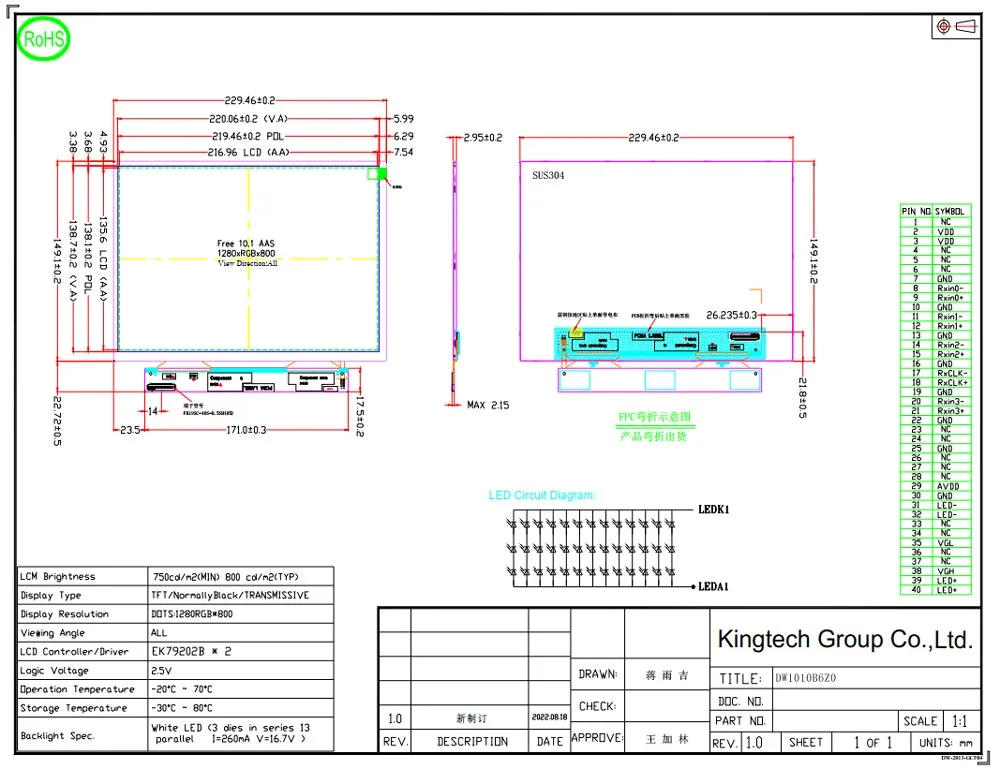

| Outline Dimension | 149.1(H)*229.46(W)*2.95(T) |
| Active Area(mm) | 135.6(H)*216.96(W) |
| LCD Controller/Driver | EK79202 * 2 |
| Interface | LVDS |
| Brightness | 800nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 1280x800 IPS Innolux 800nits LCD module can be used for indsustrial control, agricultural equipment, medical device, game console, outdoor equipment and smart home etc.
