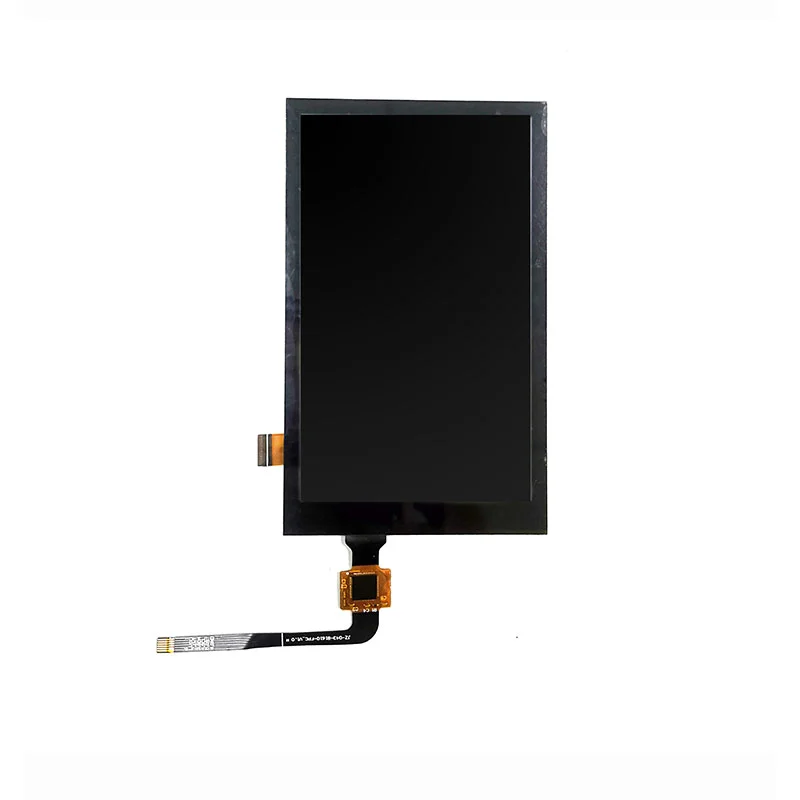

Kingtech 4.3 inch 480*800 IPS LCD display supply is very stable. This 4.3inch supports the RGB interface. In addition, the 4.3 inch TFT module brightness is 200nits, and this 4.3 inch screen is All/Free/Wide viewing angle/Normally Black/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Wide viewing angle/IPS
400*480
Stable supply
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | TFT LCD module 4.3 inch IPS |
| Model No | PV04302TD51D-C1 |
| Resolution | 480*800 |
| Outline Dimension | 70.6 (H)*122.1(V)*3.35(D) |
| Active Area(mm) | 56.16(H) *93.60(V) |
| Interface | RGB |
| Brightness | 200 cd/m2 |
| Viewing Angle | All |
| Driving IC | OTM8019A |
| Display Mode | Normally Black |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touchscreen | Resistive/capacitive touchscreen |
The 4.3 inch 480*800 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
