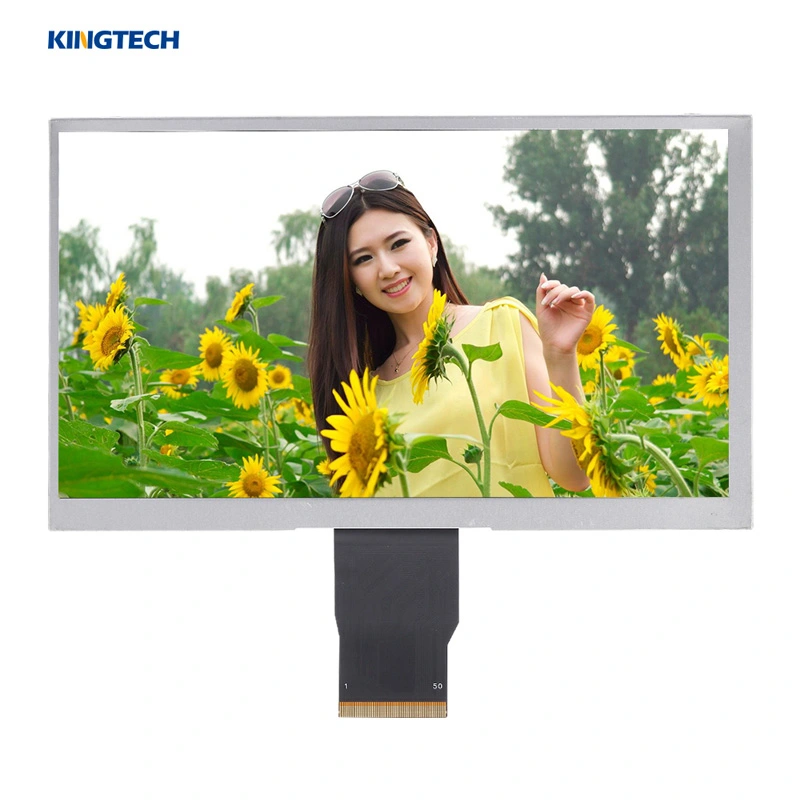

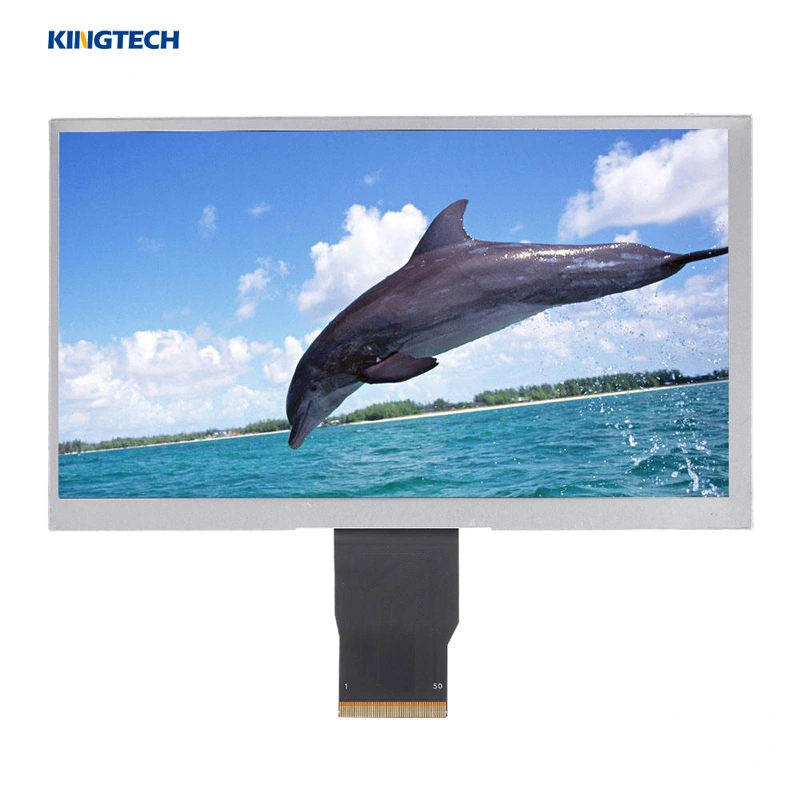

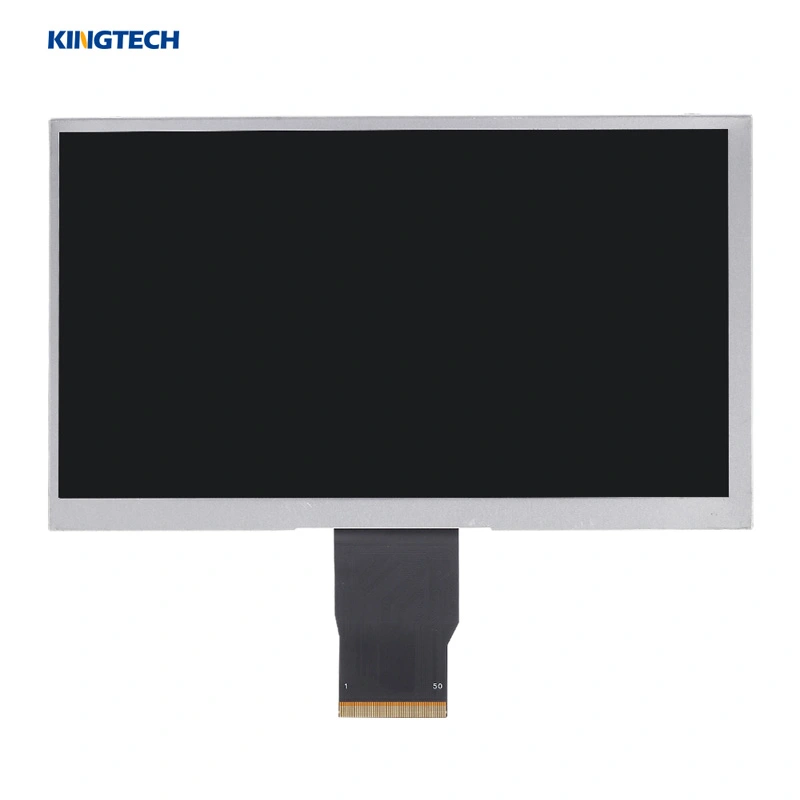

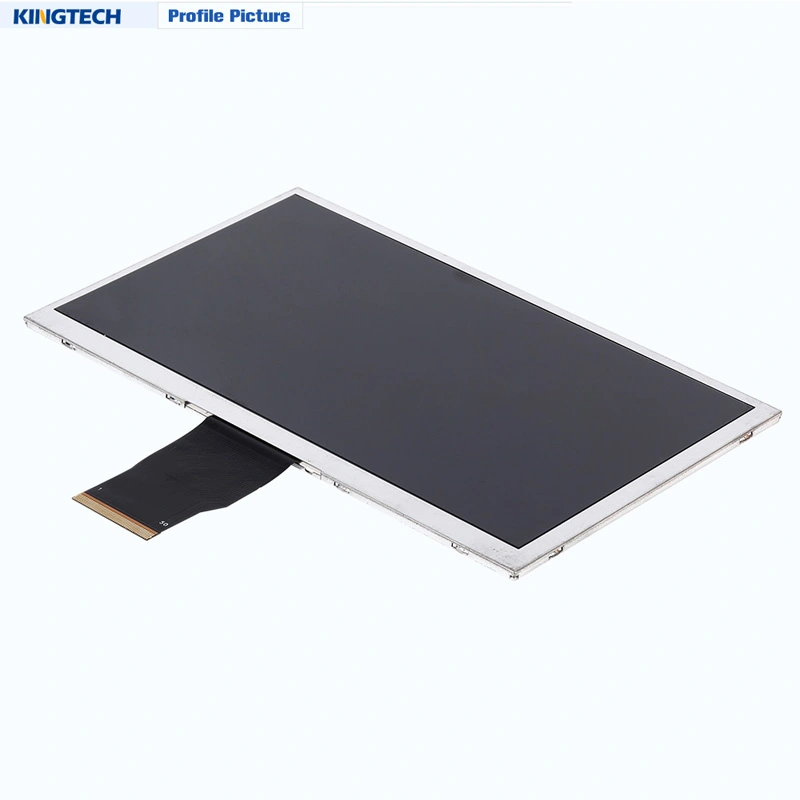

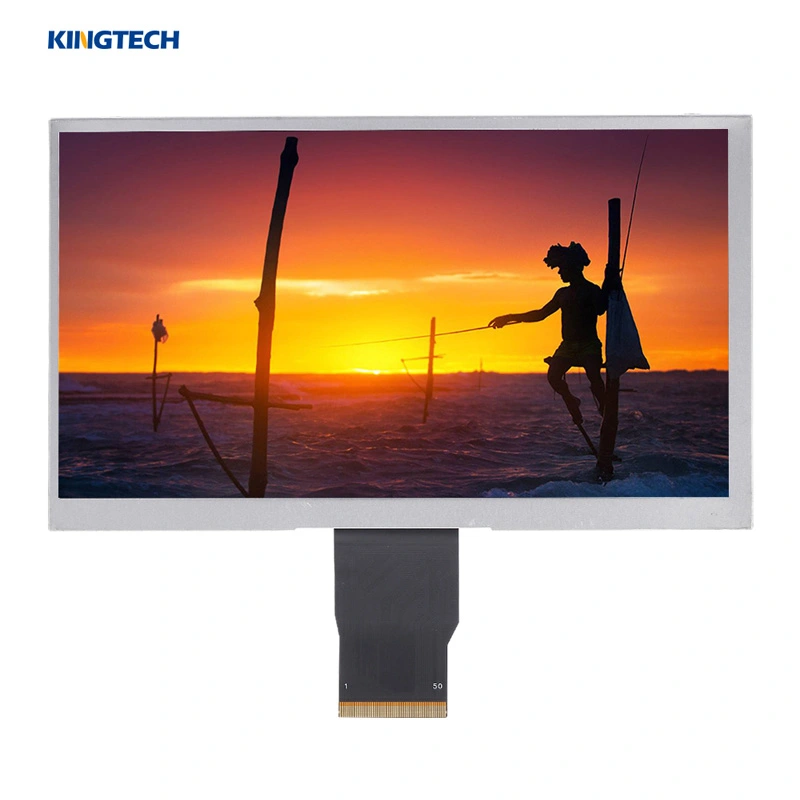

PV07046P0140X is Kingtech wide temperature normal brightness 7 inch WVGA LCD display. Its operating temperature is-30-85 and storage temperature is -40-90. It is designed for high temperature device application such as oven, detector device and vendor machine etc. Its brightness is 500nits high brightness with 3 lines by 8 parallel. Its resolution is 800x480dots. It can be with and without capacitive touch. Its interface is TTL(Digital, RGB) with standard 40pins.
7inch 800x480/WVGA
-30-85/Wide working temperature
500nits/High brightness/ Sunlight readable
With or without capacitive touch
IPS/All/Full/Wide viewing angle
Application for oven, Koisk, Industrial control, Vendor machine, Traffic camera
Get a Quote
Documentation
| Item | 7.0 inch TFT 800x480 module display |
| Model No. | PV07046P0140X |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165*104.09*5.3 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | TTL(Digital, RGB) |
| Backlight | 3*8LED |
| Pin nums | 40 |
| Driving IC | EK9713B+EK73002 |
| PIN No. | 40 |
| Operating Temperature | -30~85 |
| Storage Temperature | -40~90 |
| Touch screen | With/without capative touch screen |
| Application | Industrial equipment,such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator, |
This 7inch with wide temperature and normal brightness can be used for many high temperature application, such as oven, Koisk, Industrial control, Vendor machine, Traffic camera, etc
