5.0-PV05014Y0150R

PV05014Y0150RT is 5-inch WVGA LCD module using an TN technology with a standard resolution of 800x480, with 1000nits brightness technology provides sunlight-readable image quality with higher brightness, better color reproduction and image consistency. Whether you need a display for your industrial HMI application or outdoor equipment, this display provides the solution.


  • 5.0inch 800x480/WVGA display

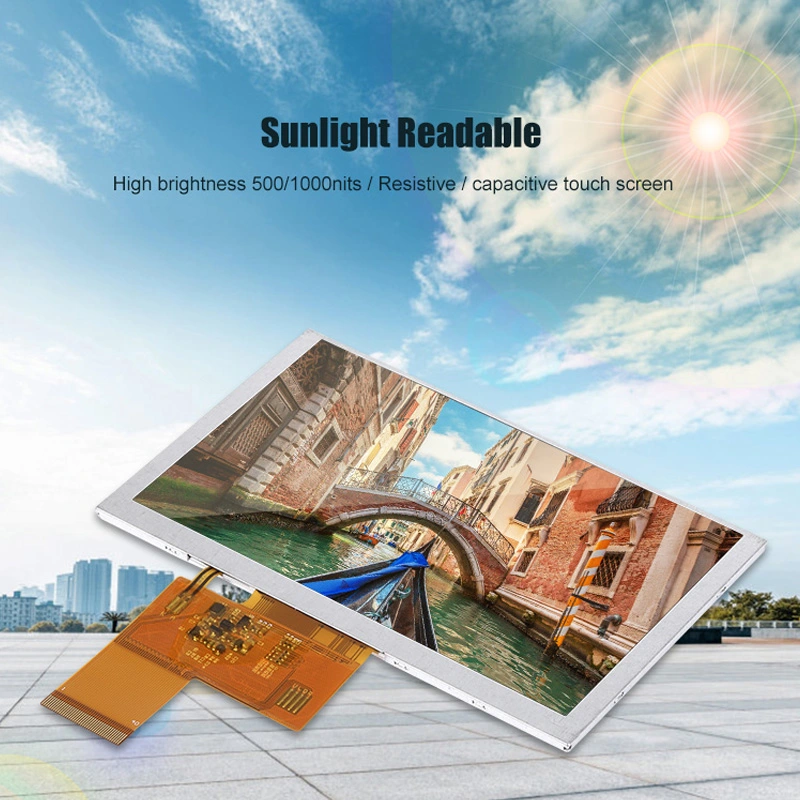

  • 1000nits/High brightness/Sunlight readable/Outdoor

  • Stable supply

  • Viewing angle:12 o’clock

  • RGB/MIPI/LVDS interfaces

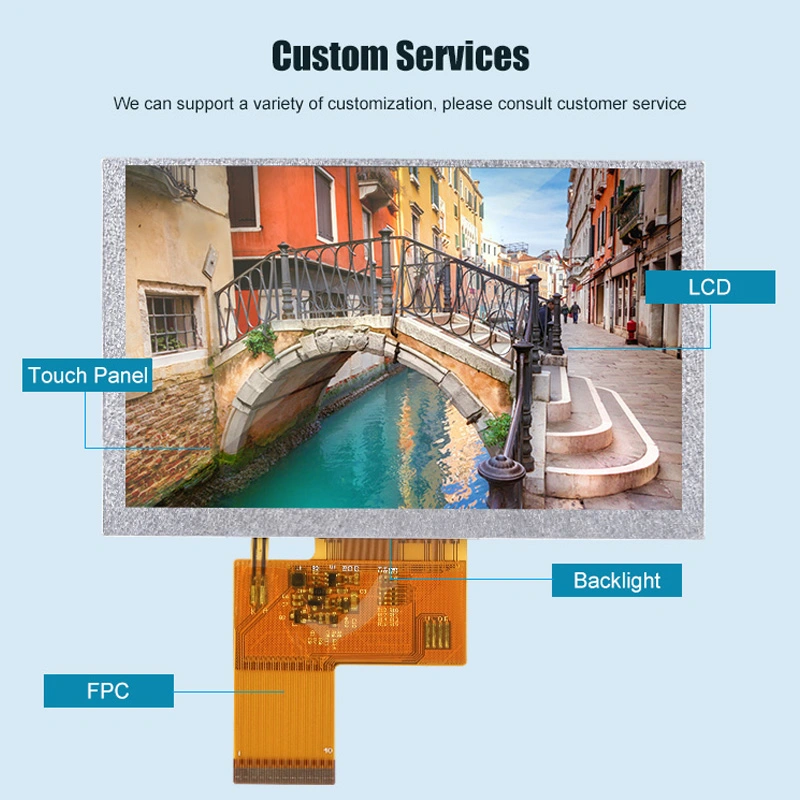

  • Resistive touch and capacitive touch optional

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 5.0-PV05014Y0150R

Item5.0inch 800x480 high brightness LCD screen
Model No.PV05014Y0150R
Resolution800*480
Outline Dimension (mm)120.7*75.80*3.00
Active Area (mm)108.00*64.80
Viewing Angle12 O'clock
Brightness1000nits

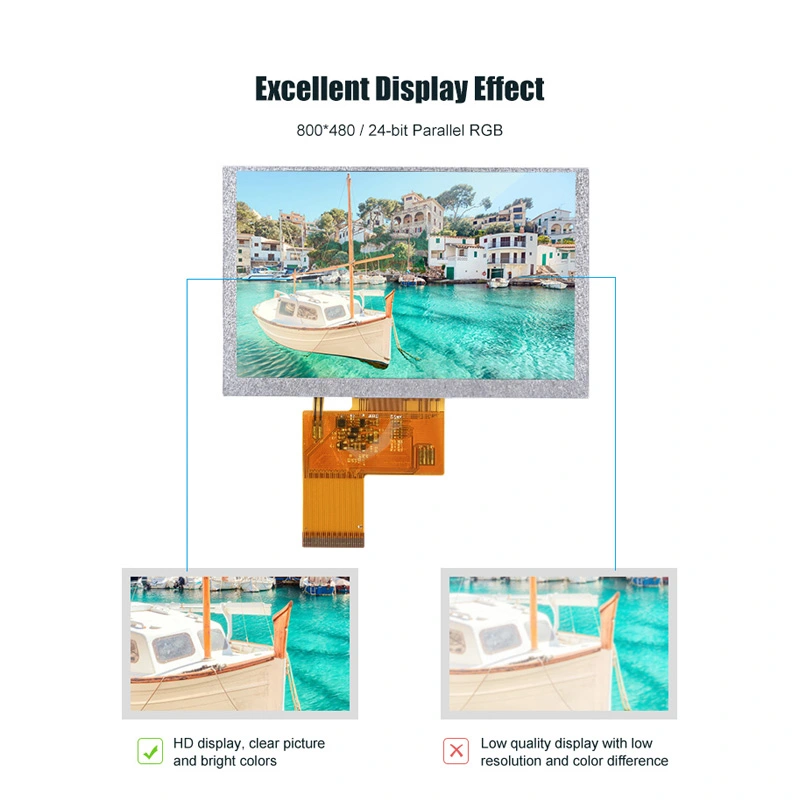

Interface24bit RGB
Backlight3*5LED
Driving ICILI6122+ILI5960
PIN No.50
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Touch screenSupport custom capacitive touch and resistive touch
ApplicationMotor, Industrial HMI, Outdoor device, Farming machine etc


Application of 5.0-PV05014Y0150R

  • PV05014Y0150RT is applicable for motor, industrial HMI, Farming machine, outdoor device.
