Kingtech 5.0'' inch 800*480 TFT module display supply very stable. This 5.0'' inch supports RGBinterface. In addition, the 5.0'' inch TFT display module brightness is 200nits, and this 5.0'' inch screen is 6 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
WVGA / 800x480 resolution
-30~85/Wide working temperature
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Transflective / Outdoor/Sunlight readable/200nits
Get a Quote
Documentation
| Item | 5.0 inch 800*480 Transflective display |
| Model No. | PV05041B0140N |
| Resolution | 800*480 |

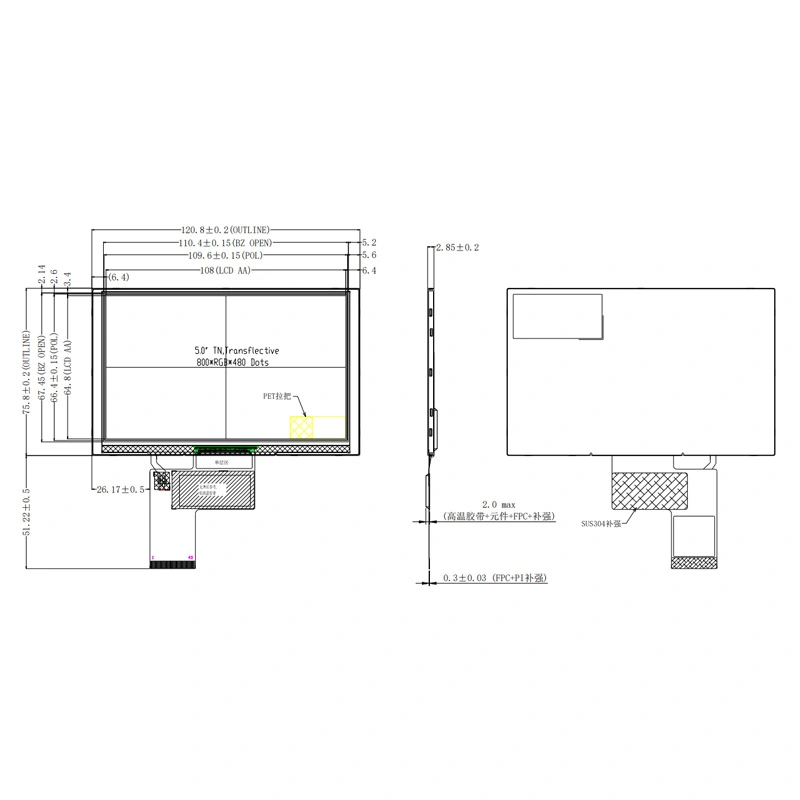

| Outline Dimension (mm) | 120.80*75.80*2.85 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | 6 O'clock |
| Brightness | 200nits |
| Interface | RGB |
| Backlight | 6*3LEDs |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Medical, hand-held device, industrial, Smart-home, outdoor, Elevator |
The 5.0'' inch 800*480 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment.
