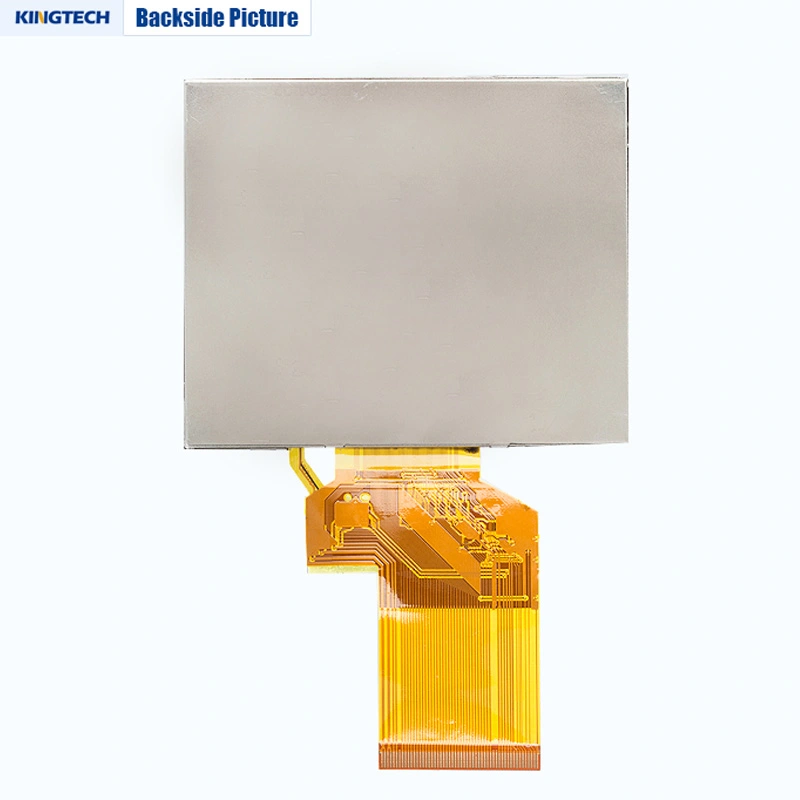

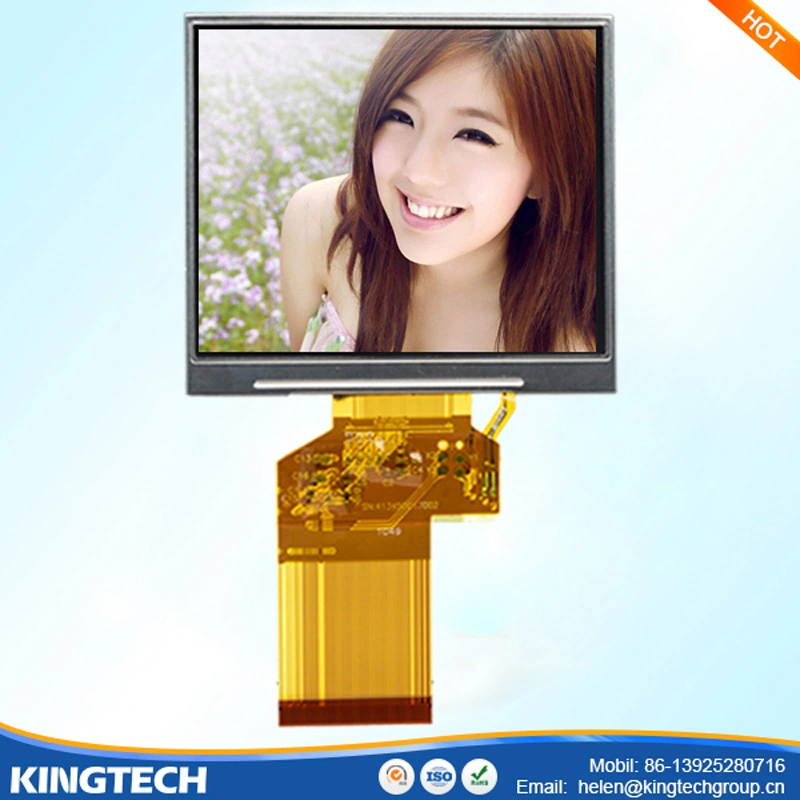

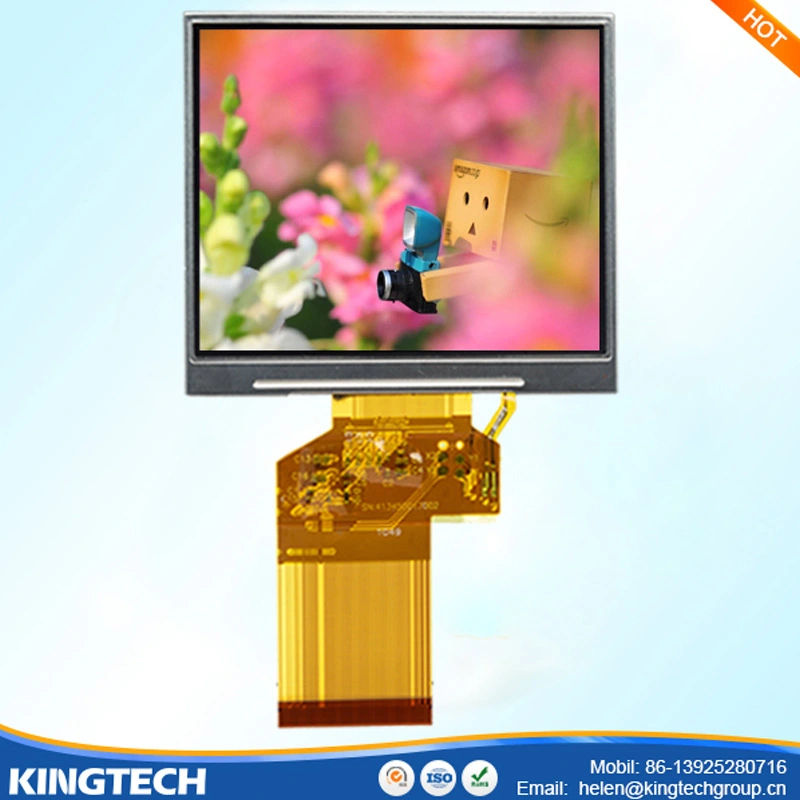

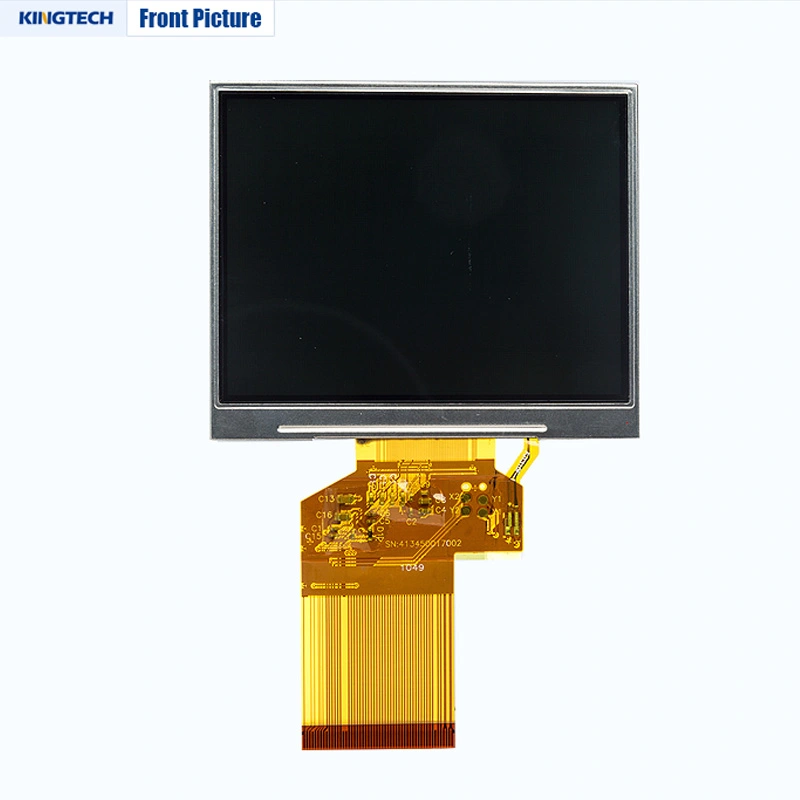

Kingtech 3.5inch 320x240 (QVGA) TFT LCD display is a common size in the market, the supply is very long and stable.
The 3.5inch has the existing resistive touch and capacitive touch. The touch can be customized according to customer requirements. This 3.5inch display can be used for medical devices, handheld equipment, and others.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
320x240 / QVGA resolution
Landscape
High brightness LCD module/sunlight readable/1000nits
Support resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 3.5" 320x240 QVGA TFT touch screen |
| Model No | PV03501TYD54C |
| Resolution | 320*240 |
| Outline Dimension | 76.90*63.90*3.27 MM |
| Active Area(mm) | 70.08*52.56 |
| Interface | 24BIT RGB+SPI |
| Brightness | 300nits / up to 1000nits |
| Viewing Angle | 12 O'clock |
| Driving IC | HX8238D |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Response time | 40ms |
| Touch screen | Resistive and capacitive touch screen |
The 3.5inch 320x240 TFT LCD display can be used for medical devices, handheld equipment, industrial control, POS machine, smart home, and a black box.
The 3.5inch TN 1000nits also can be used in sunlight-readable such as advertising machines, automotive devices.
