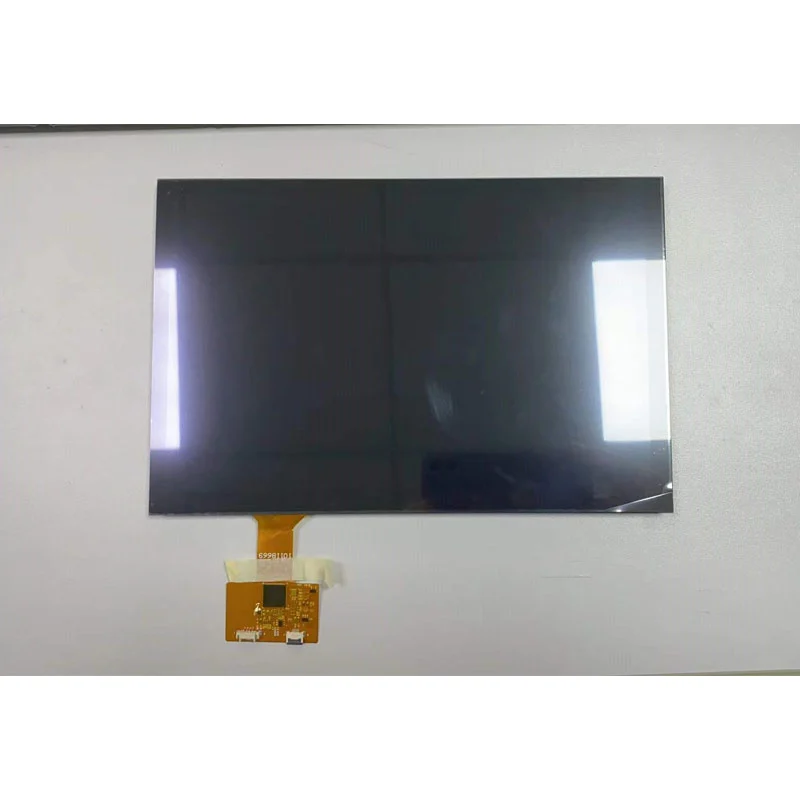

Kingtech 10.1 inch 1280x800 touch screen IPS LCD display supply very stable. This 10.1inch supports MIPI interface. In addition, the 10.1inch WXGA TFT module has existing HDMI Board and capacitive touch panel and can connect to a raspberry Pi directly. The lifetime is 50000h, the brightness is 450nits and this 10.1 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer’s requirements.
All/Free/All/Wide viewing angle/IPS
1280x800 / WXGA
Stable supply
MIPI 4 LANE interface
HDMI board / Convert board
Capacitive touch screen/ IIC and USB interfaces
Get a Quote
Documentation
| Item | 10.1inch 1280x800 touch screen module |
| Model No | PV101034Y0140X-CO |
| Resolution | 1280x800 / WXGA |

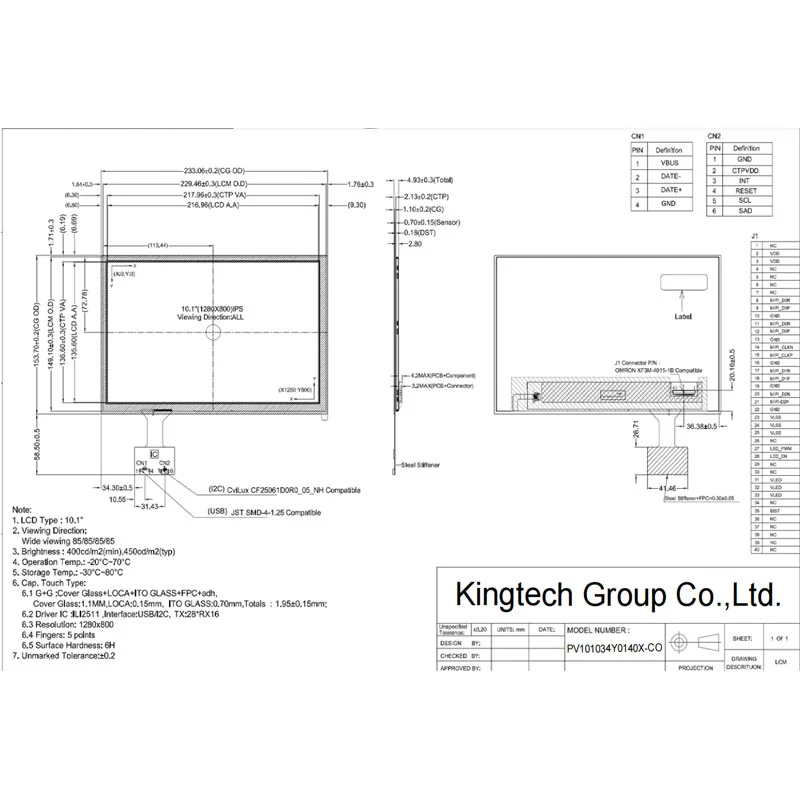

| Outline Dimension | 229.46*149.10*4.93 |
| Active Area(mm) | 216.96 *135.60 |
| Interface | 4 Lane MIPI Interface |
| Brightness | 450nits |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally Black |
| PIN | 40 |
| Lifetime | 50000h |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Capacitive touch |
The 10.1inch 1280x800 / WXGA touch screen IPS TFT LCD display can be used for agricultural equipment, medical device, game console, outdoor and smart home etc.
