Kingtech 7inch 800x480/WVGA IPS LVDS interface 500nits TFT LCD display, it supports LVDS 6/8 bit interface. The lifetime is 50000h, the brightness is 500nits sunlight readable, also it is All/ Free/ Full/ Wide viewing angle/ IPS type. For the touch part, Kingtech can custom the touch according to the the customer’s requirements.
All/Free/Full/Wide viewing angle/IPS
800x480 / WVGA
LVDS interface
High brightness/Sunlight readable/outdoor/500nits
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 7inch 800x480 IPS LCD display |
| Model No | PV07046Y0140X |
| Resolution | 800x480 |

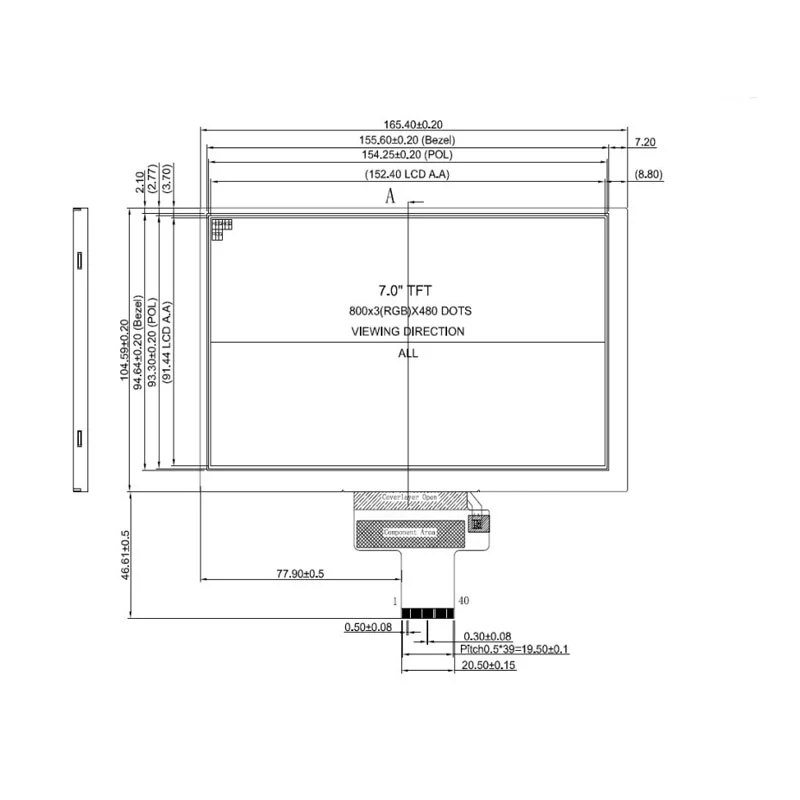

| Outline Dimension | 165.4*104.59*5.8 |
| Active Area(mm) | 152.4*91.44 |
| Interface | LVDS 6/8 bit |
| Brightness | 500nits |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 7inch 800x480 / WVGA IPS LVDS interface wide temperature TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
