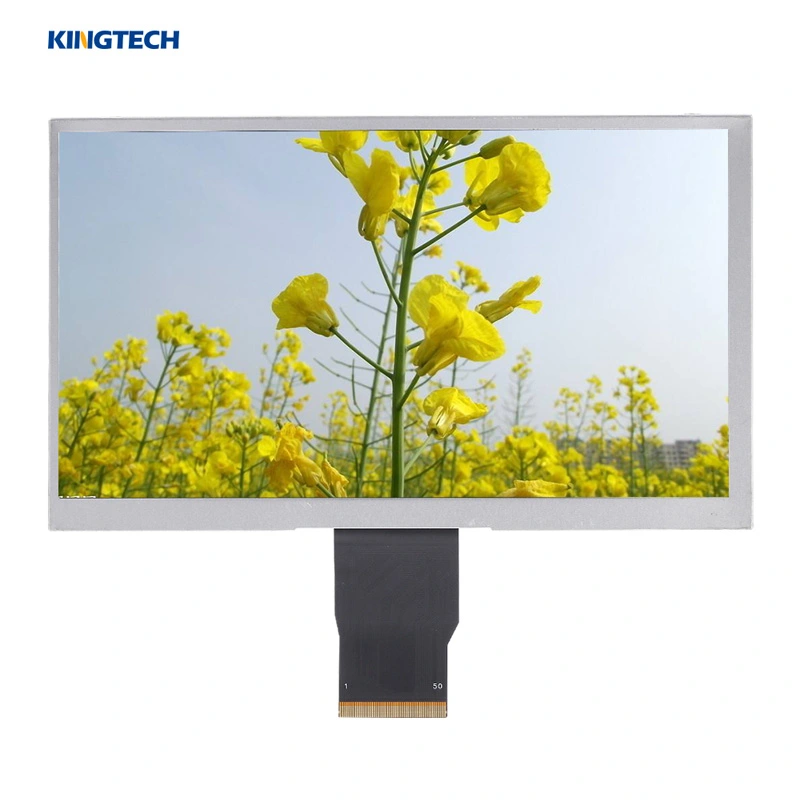

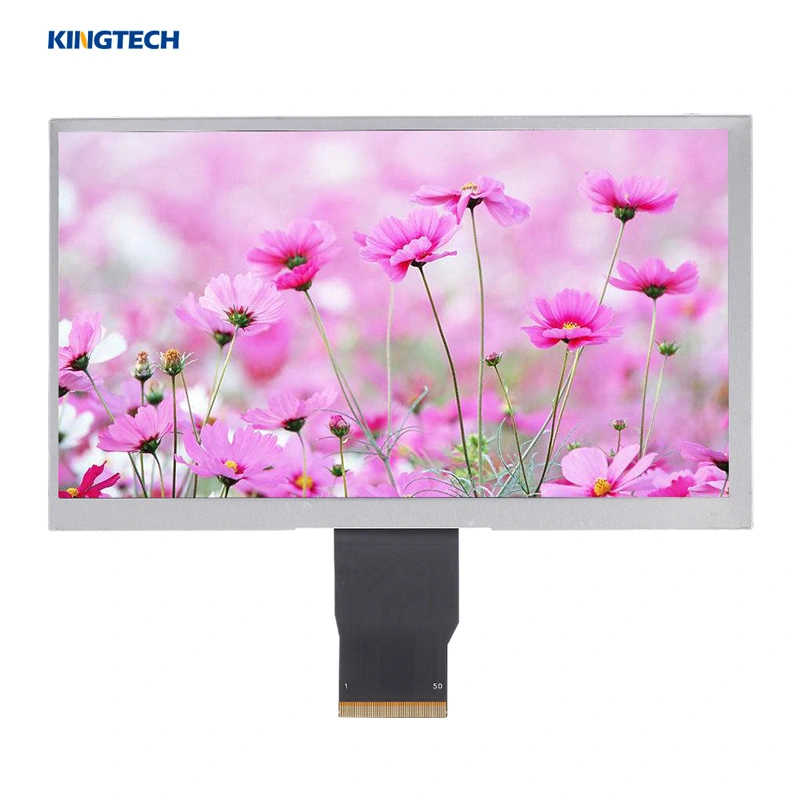

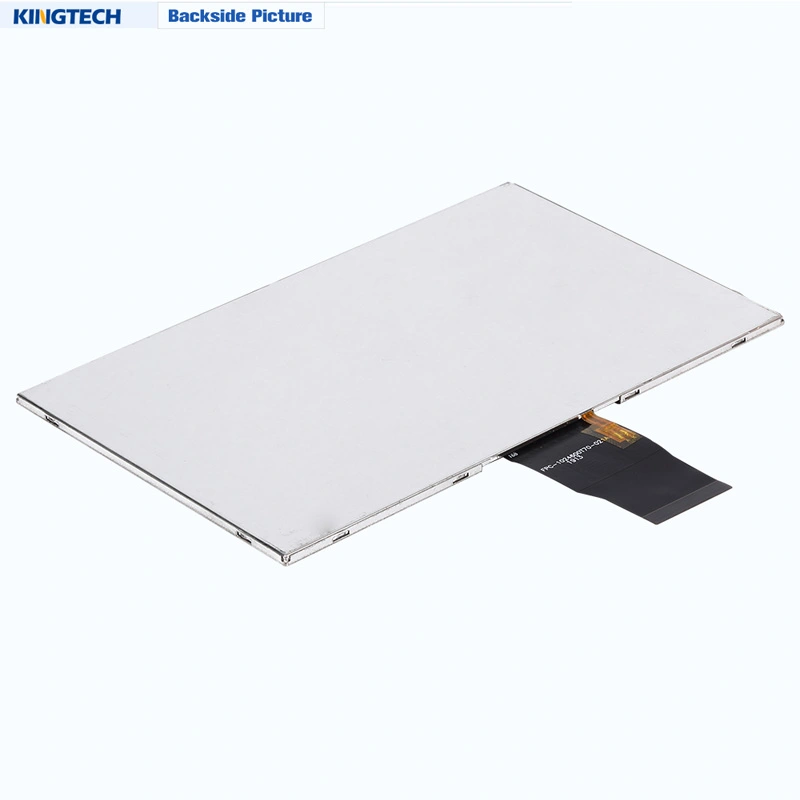

Kingtech PV07052Y0140D-R is a 7-inch TFT LCD display with TN technology LCD glass and a resolution of WVGA 800x480. It is a classic and versatile LCD with 40 pins and a 24-bit RGB interface. The best viewing angle is at 12 o'clock. Equipped with backlight, it offers clear and bright visibility indoors with a brightness level of 400 nits. The operating temperature ranges from -20 to 70 degrees Celsius, making it suitable for various applications. It features a resistive touch panel, but capacitive touch support can also be provided upon request.
Classic 7inch 800x480 LCD
WVGA resolution
TN, normally white, Postive display type
Landscape
Resistive touch and capacitive touch can be customized.
Get a Quote
Documentation
| Item | 7inch 800*480 LCD display for POS terminal |
| Model No. | PV07052Y0140D-R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 164.90*100*4.6 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | 12 o'clock |
| Brightness | 400nits |
| Interface | 24-bit Parallel RGB Interface |
| Backlight | 3*8LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Industrial, Automation, Medical, Smart Home, Pos terminal |
PV07052Y0140D-R is widely used in used for Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.
