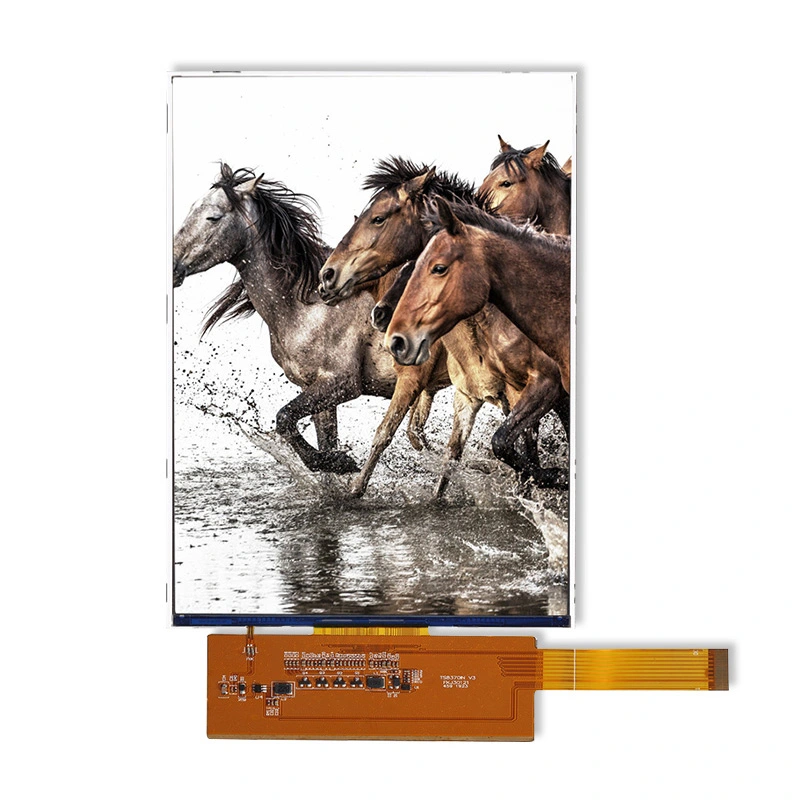

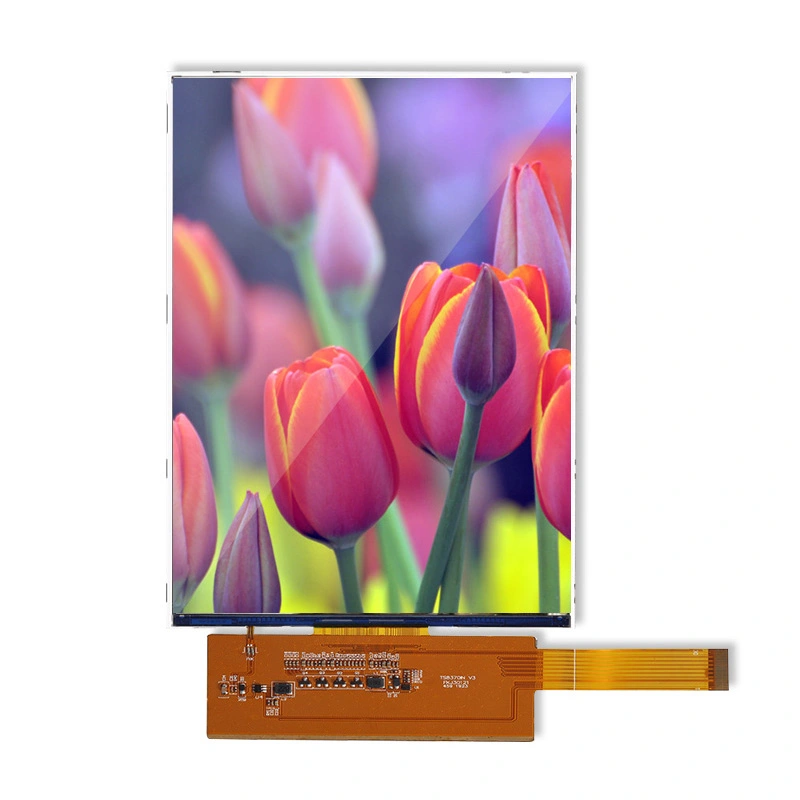

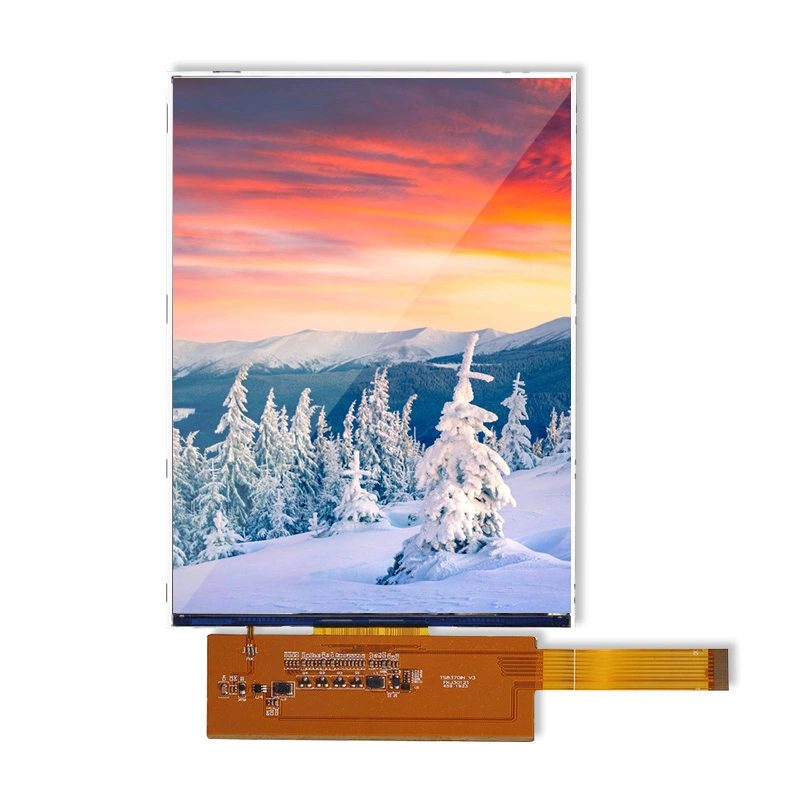

Kingtech PV06004H0140E-LO is a 6.0-inch 1080*2160 dots TFT LCD module. It has very clear and gorgeous display performance. It is composed of a TFT LCD panel, driver IC, FPC, backlight. It is IPS glass with Full viewing angle. Its display color is up to 16.7M. LCD IC is integrated with TD4310. It is with capacitive touch. It supports MIPI interface. Its work temperature is -10-60. It is with backlight of 3 Serial 7 Parallel LEDs (white). Its brightness can be customized. Capacitive touch is optional. It is suitable for customer electronic products, industrial, medical, Handheld device, smart home, outdoor, etc. This product accords with ROHS environmental.
6inch 1080*2160 LCD with capacitive touch
High resolution
Full/Wide/All/IPS viewing angle
Portrait shape
Support MIPI interface.
Capacitive Touch can be customized
Get a Quote
Documentation
| Item | 6.0inch 1080*2160 incell LCD with capacitive touch |
| Model No. | PV06004H0140E-LO |
| Resolution | 1080*2160 |

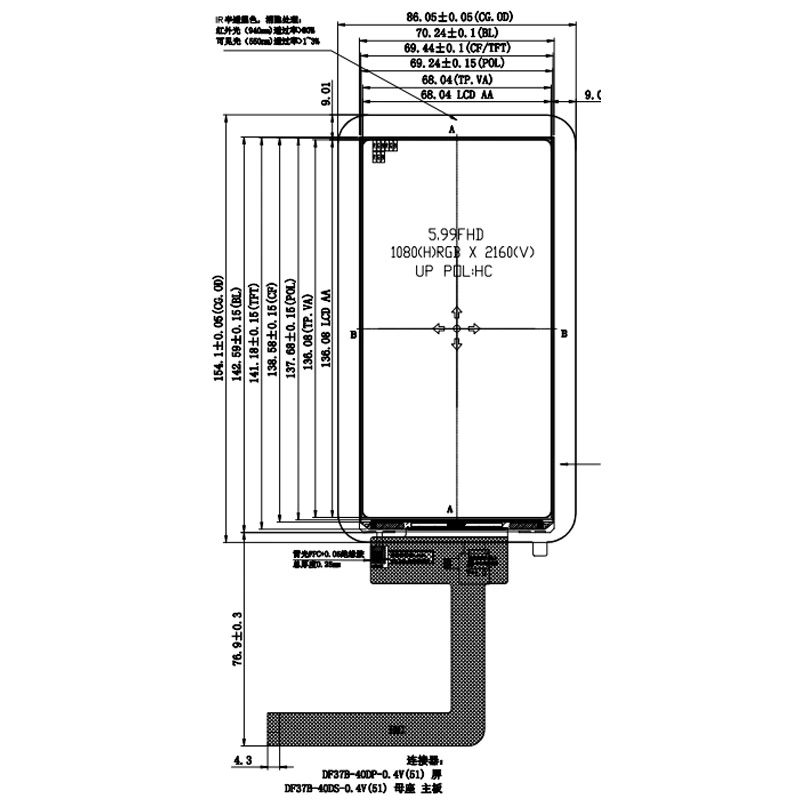

| Outline Dimension (mm) | 86.05*154.1*2.52 |
| Active Area (mm) | 68.04*136.08 |
| Viewing Angle | All |
| Brightness | / |
| Interface | MIPI |
| Backlight | 8*2LED |
| Driving IC | TD4310 |
| PIN No. | 40 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter |
Kingtech PV06004H0140E-LO is a 6.0-inch 1080*2160 can be used for customer electronic products, industrial, medical, Hand-held device, smart home, outdoor, etc.
