Kingtech PV07067Y0115U-CT is a 7-inch TFT LCD display with TN technology LCD glass and a resolution of WVGA 800x480. It is a classic and versatile LCD with 40 pins and a 24-bit RGB interface. The best viewing angle is at All/IPS/Wide/Full viewing angle. Equipped with backlight, it offers clear and bright visibility indoors with a brightness level of 400 nits. The operating temperature ranges from -20 to 70 degrees Celsius, making it suitable for various applications. It features a resistive touch panel, but capacitive touch support can also be provided upon request.
Classic 7inch 800x480 LCD
WVGA resolution
TN, normally white, Postive display type
Landscape

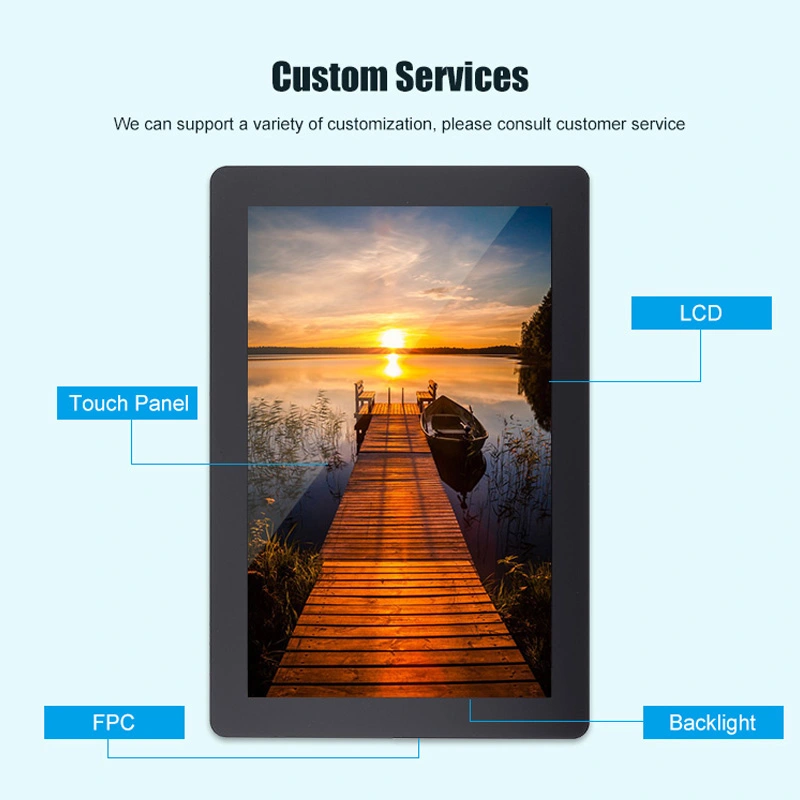

Resistive touch and capacitive touch can be customized.
Get a Quote
Documentation
| Item | 7inch 800*480 landscape LCD with CTP LCD module |
| Model No. | PV07067Y0115U-CT |
| Resolution | 800*480 |
| Outline Dimension (mm) | 192.96*110.76*8.45 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | DSI MIPI-2 Lane |
| Backlight | 3*9LED |
| Driving IC | ICN6211 |
| PIN No. | 15 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer. |
PV07067Y0115U-CT is widely used in used for Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.
