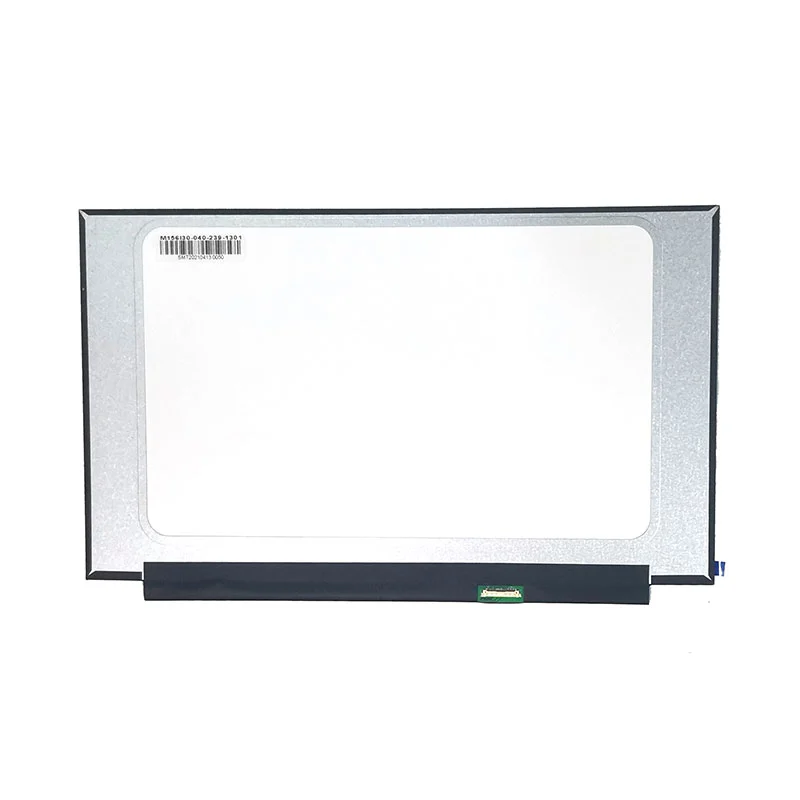

Kingtech 15.6 inch 1920*1080 IPS LCD display supply very stable. This 10.1inch supports eDP interface. In addition, the 15.6 inch TFT module has exsiting HDMI Board. The brightness is 600nits, and this 15.6inch screen is All/Free/Wide viewing angle/Normally Black/IPS type. For the touch part, Kingtech can custom the touch according to customer’s requirements.
All/Free/Wide viewing angle/IPS
High definition 1920*1080
Stable supply
HDMI board / Convert board
EDP interface
High brightness / 600nits / Sunlight readable
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 15.6 inch IPS TFT lcd display |
| Model No | DW1560B6Y1 |
| Resolution | 1920*1080 |
| Outline Dimension | 204.9(H)*350.7(W)*2.90(T) |
| Active Area(mm) | 193.59(H)*344.16(W) |
| Color Depth | 16.7M |
| Brightness | 600nits |
| Driver IC | ILI6145A |
| Interface | eDP |
| Viewing Angle | ALL |
| Display Mode | Normally Black |
| PIN No. | 30 |
| Operating Temperature | 0℃~70℃ |
| Storage Temperature | -10℃~70℃ |
| Touch panel | Can custom capacitive touch and resistive touch |
The 15.6 inch 1920*1080 IPS TFT LCD display can be used for agricultural equipment, medical device, game console, industrial and smart home etc.
