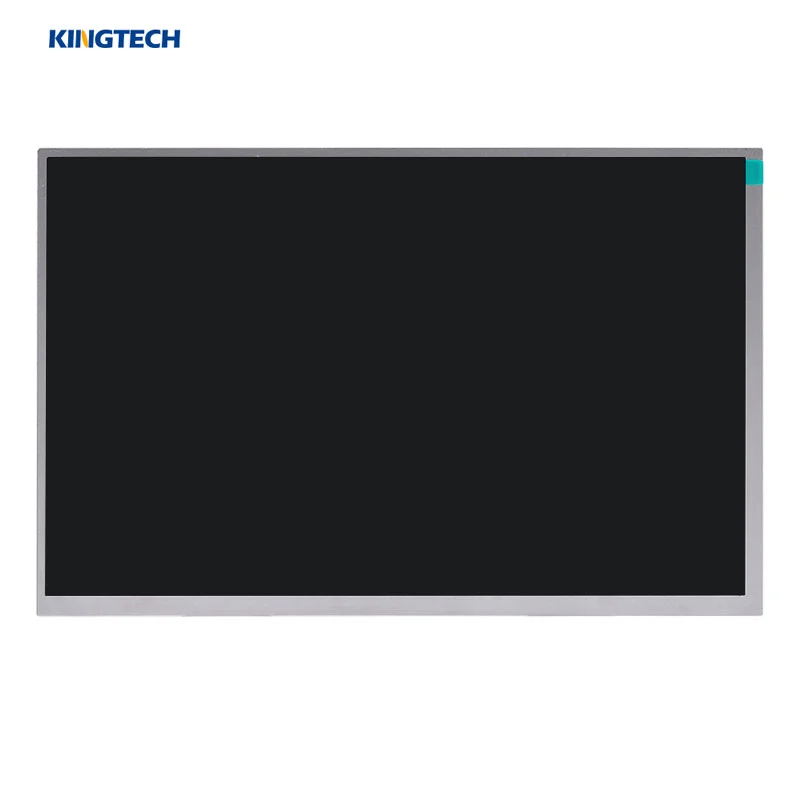

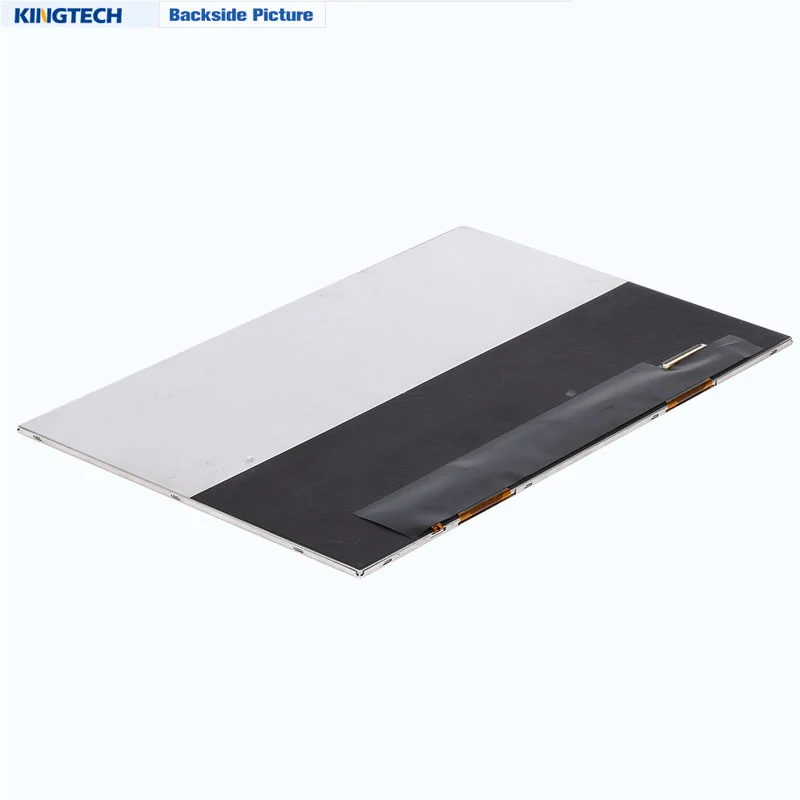

Kingtech 10.1 inch 1280*800 IPS LCD display supply very stable. This 10.1inch supports LVDS interface. In addition, the 10.1 inch TFT module has existing HDMI Board. It can connect to raspberry pi directly. The lifetime is 20000h, the brightness is 550nits and can be customized to 1000nits sunlight readable, and this 10.1 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer’s requirements.
All/Free/All/Wide viewing angle/IPS
1280x800 / WXGA
Stable supply
HDMI board / Convert board
Capacitive touch IIC and USB interfaces
550nits brightness, can be up to high brightness/Sunlight readable/Outdoor/1000nits
Can custom capacitive touch screen
Get a Quote
Documentation

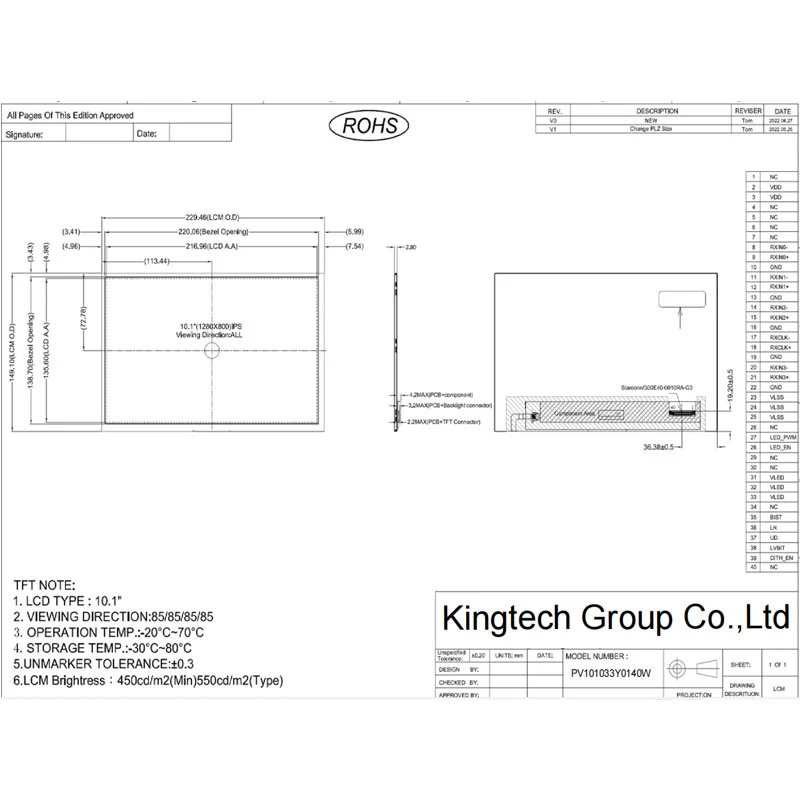

| Item | 10.1inch 1280x800 TFT LCD module |
| Model No | PV101033Y0140W |
| Resolution | 1280x800 / WXGA |
| Outline Dimension | 229.46*149.10*2.8 |
| Active Area(mm) | 216.96 *135.36 |
| Interface | LVDS 8bit or 6bit Interface |
| Brightness | 550nits |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Support capacitive touch |
The 10.1inch 1280x800 / WXGA IPS TFT LCD display can be used for agricultural equipment, industrial, medical device, game console, outdoor and smart home etc.
