Kingtech PV05512T0239M-CO is 5.5inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. Its thickness is only 2.71mm. The resolution is 1080*1920. Its driver ic is HX8399-C10, supporting MIPI interface. Its brightness can reach up to 500nits Typical. It is with a compatible capacitive touch. CTP and LCD module is bonded by OCA, a more clear performance.
Thin 5.5inch Portrait
High resolution 1080x1920
MIPI interface
Capacitive Touch, OCA bonding
Get a Quote
Documentation
| Item | Thin 5.5inch IPS 1080x1920 LCD MIPI interface |
| Model No. | PV05512T0239M-CO |
| Resolution | 1080*1920 |

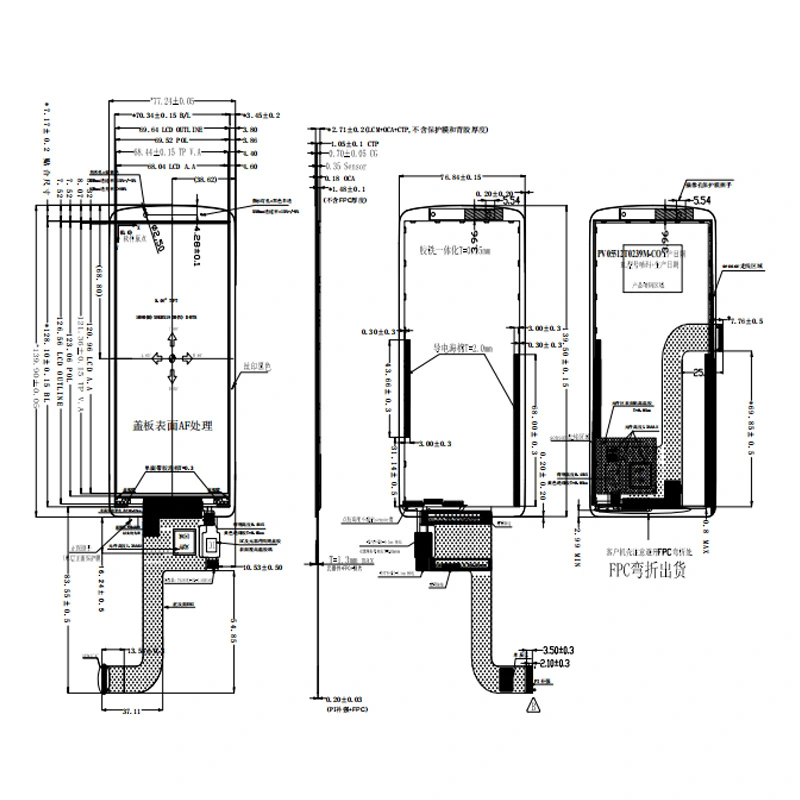

| Outline Dimension (mm) | 77.24*139.9*2.71 |
| Active Area (mm) | 68.04*120.96 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI-4 Lanes |
| Backlight | 8*2 LEDs |
| Driving IC | HX8399-C10 |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with OCA bonding |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike. |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.
