Kingtech DW60QVSA11H1FQ is 6.0inch AMOLED display module with capacitive touch. Its viewing angle is all. The resolution is 1080x2160, display high performance with high contrast. Its driver ic is CH13721C, supporting MIPI interface. It has no backlight, power saving. Its brightness can reach 450nits typical. It is designed for application which demands for high display colorful performance and touch panel is optional.
6.0inch Amoled
High resolution 1080x2160
2K resolution
All /Free/Wide/ IPS viewing angle
Capacitive Touch optional
Get a Quote
Documentation
| Item | 6.0inch 1080x2160 Amoled display with Capacitive touch |
| Model No. | DW60QVSA11H1FQ |
| Resolution | 1080*2160 |

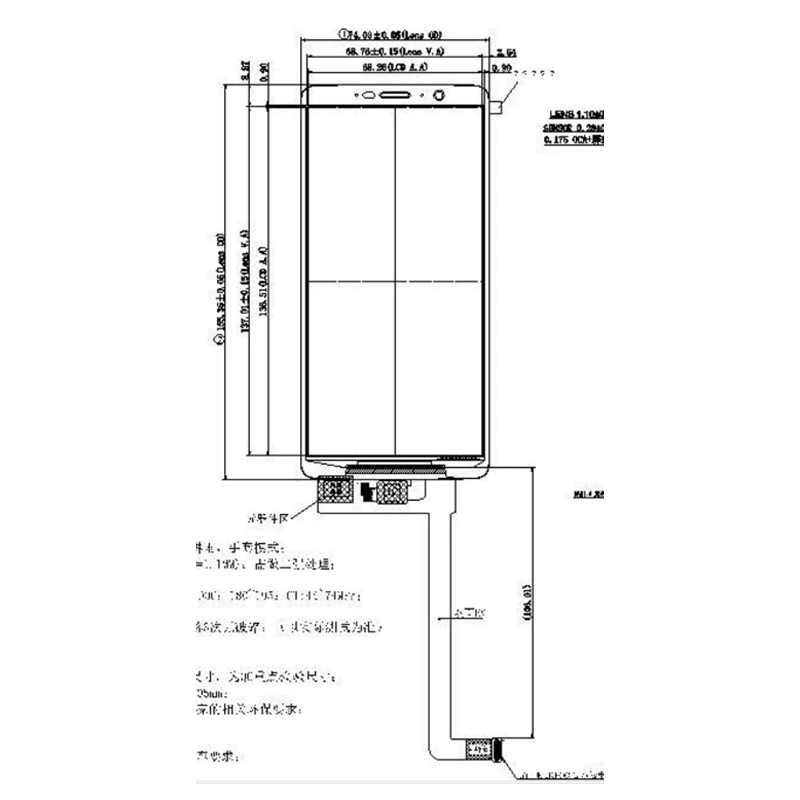

| Outline Dimension (mm) | 74.03*155.36*2.47 |
| Active Area (mm) | 68.256*136.512 |
| Viewing Angle | All |
| Brightness | 450nits |
| Interface | MIPI |
| Backlight | No backlight, Amoled exide light automatically |
| Driving IC | CH13721C |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive Touch IC GT1151QM (I2C interface), 10 points touch |
| Application | Pos machine, 3D Printer, ATM machine, Medical, Hand-held device, Industrial, vehicle |
It is applicable for consumer electronics, home application, industrial, smart phone, POS machine, camera, vehicle, etc.
