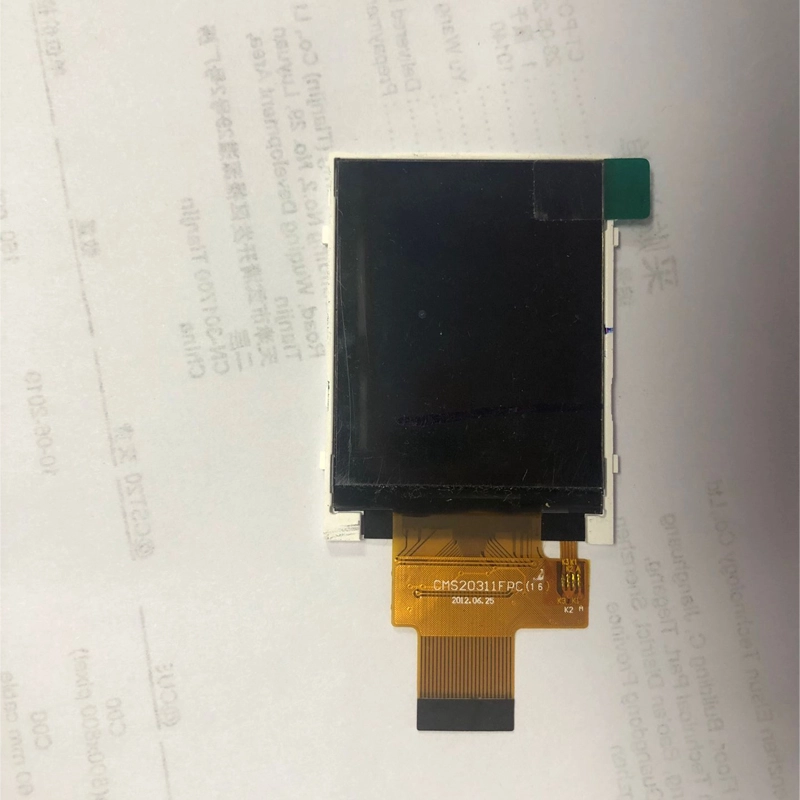

Kingtech 2inch 176x220 TFT LCD module is a small size display. This ILI9225G driver IC display supports MCU 8bit and 16bit interfaces.
The TFT module does not have existing resistive touch and capacitive touch, but we can custom LCD screens according to customer requirements. This 2 inch 6 o'clock 180nits screen can be used for medical equipment and industrial device.
Kingtech LCD will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
176x220 resolution
Rectangle display
Can custom TFT capacitive touchscreen and capacitive touch screen
MCU 8bit and 16bit interfaces
Application is for medical equipment
Small / Tiny display
Get a Quote
Documentation
| Item | 2inch rectangle LCD module display |
| Model No | PV02000PD24B_V01 |
| Resolution | 176x220 |
| Outline Dimension | 51.30(H)x37.68(W)x2.40(T) |
| Active Area(mm) | 39.60(H)x31.68(W) |
| Interface | Standard 8080 system 8 / 16 bit parallel interface (default: 16-bit ) |
| Viewing Angle | 6 O'clock |
| Driving IC | ILI9225G |
| Display Mode | Transmissive / Normally White |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 180nits |
| Touchscreen | Can custom resistive and capacitive touch panel |
The 2.0inch rectangle 6 o’clock TFT LCD screen can be used for medical devices, handheld equipment, industrial control, smart home, and smartwatch.
