Kingtech 21.5 inch 1920*1080 Landscape TFT LCD display supply very stable. This 21.5 inch supports LVDS interface. In addition, the 21.5 inch TFT module brightness is 250nit , and this 21.5 inch screen is IPS / Free / Full / Wide viewing angle type. For the touch part, Kingtech can custom the touch according to customer's requirements.
Landscape / Horizontal screen
1920*1080
Stable supply
IPS / Free / Full / Wide viewing angle
High color gamut/ 72% of NTSC
LVDS interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 21.1inch 1920*1080 LCD display |
| Model No | PV215002YH30C |
| Resolution | 1920*1080 |

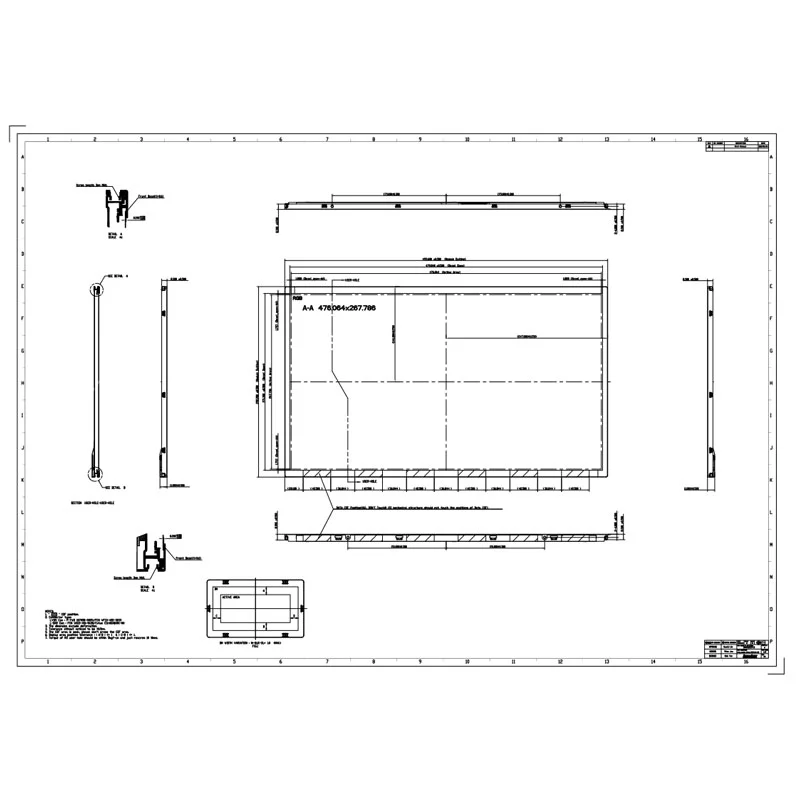

| Outline Dimension | 495.6*292.2*11.0 |
| Active Area(mm) | 476.064*267.786 |
| Interface | LVDS |
| Brightness | 250 |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally Black |
| PIN | 30 |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Color Gamut | 72% of NTSC |
The 21.5inch 1920*1080 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
