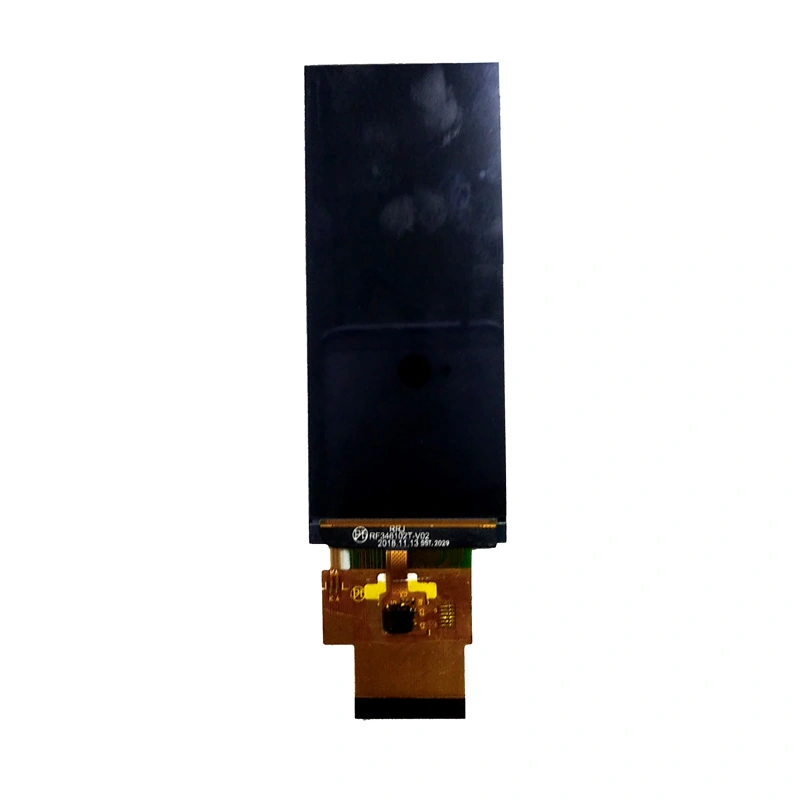

Kingtech 3.46 inch 340x800 IPS /All /Wide viewing angle LCD display supply very stable. This 3.46inch bar display supports a 16bit RGB interface. In addition, the 3.46inch bar type TFT module can custom capacitive touch according to the customer requirements. The 3.46inch 262K color LCD screen can be used in medical, smart-home, industrial, hand-held, e-bikes, and others.
262K / TFT LCD / 12 o’clock
240x320 / QVGA
Vertical / Portrait
Stable supply
Can custom resistive and capacitive touch screen
Can be used for medical, industrial, hand-held, e-bike, and others.
Get a Quote
Documentation

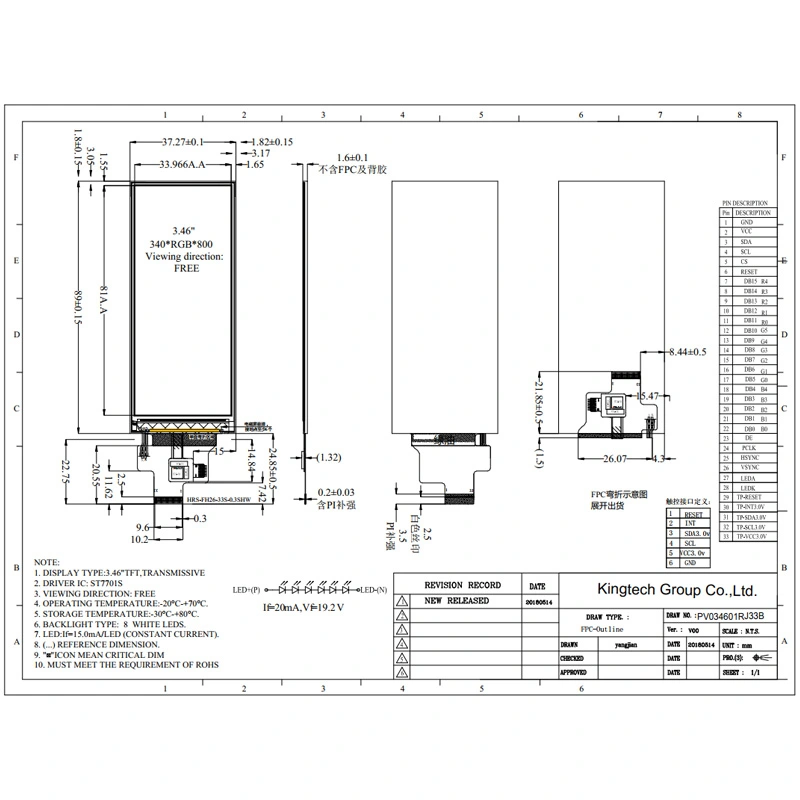

| Item | 3.46inch 340x800 bar-type LCD module |
| Model No | PV034601RJ33B |
| Resolution | 340x800 |
| Outline Dimension | 37.27(H) ×89(V)×1.6(T) |
| Active Area(mm) | 33.966 (H)×81(V) |
| Interface | 16bit-RGB |
| Driver IC | ST7701S |
| Viewing Angle | All |
| LED No. | 6*1 LEDs |
| Display Mode | 262K color TFT / IPS / Transmissive / Normally Black |
| PIN | 33 |
| Brightness | 330nits |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom capacitive touch |
The 3.46inch bar type IPS TFT LCD display module can be used for medical, smart-home, industrial, hand-held, e-bike, and others.
