Kingtech 4.3 inch 480x272 LCD display supply is very stable. This 4.3 inch supports 24 BITS RGB interface. In addition, the 4.3 inch TFT module has existing capacitive and resistive touch panels. It with HX8257A driver IC. For the touch part, Kingtech can custom the touch according to the customer's requirements.
TN / Normally white
480x272 /WQVGA resolution
HX8257A IC
Support capacitive and resistive touch panel
24 BITS RGB interface
Get a Quote

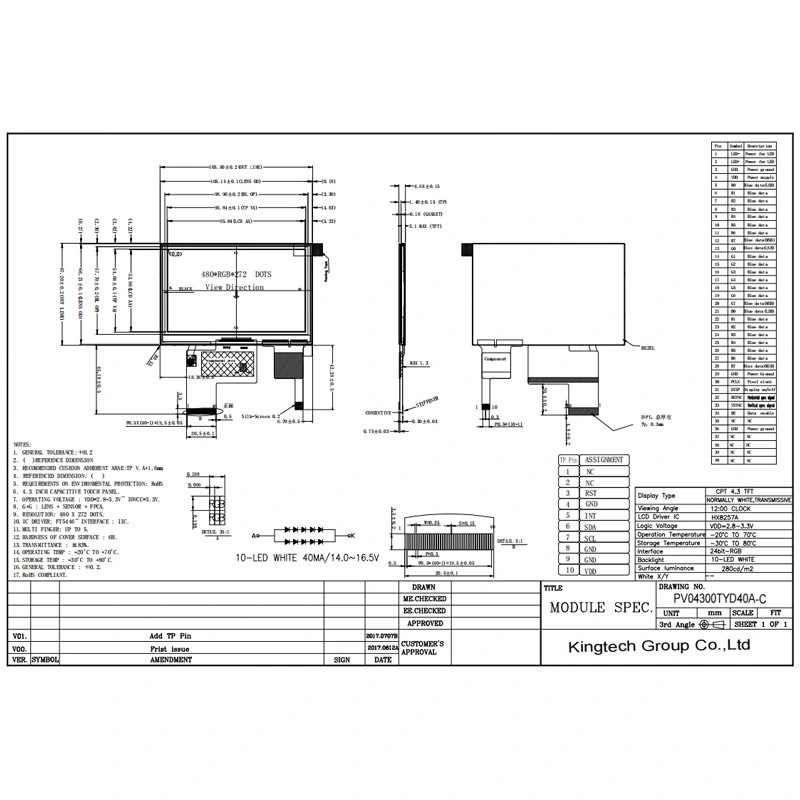

Documentation
| Item | 4.3-inch 480X272 RGB interface LCD module |
| Model No | PV04300TYD40A-C |
| Resolution | 480x272 / WQVGA |
| Outline Dimension | 105.5*67.2*4.68 |
| Active Area(mm) | 95.04*53.86 |
| Interface | 24 BITS RGB |
| Brightness | 280nits |
| Viewing Angle | 12 O'Clock |
| Driver IC | HX8257A |
| LED life | 30000h |
| Display Mode | Transmissive / Normally white |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch panel | Support resistive touch and capacitive touch |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.3 inch 480x272 TN LCD module can be used for agricultural equipment, medical device, game console and smart home, etc.
