Kingtech 10.1 inch 1280*720 landscape TFT LCD display supply is very stable. This 10.1 inch supports the LVDS interface. In addition, the 10.1 inch TFT module NTSC is 70%, the brightness is 750nits. It's high brightness, and can sunlight readable and outdoor devices. This 10.1-inch screen is IPS/Free/Full viewing angle type. For the touch part, Kingtech can custom the capacitive touch or resistive touch according to the customer's requirements.
Landscape/Horizontal screen
750nits/high brightness/sunlight readable/Outdoor
1280*720
Wide temperature/-30~+85C
IPS/Free/Full viewing angle
Stable supply
LVDS interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 10.1 inch 1280*720 TFT display module |
| Model No | PV101029S0140X |
| Resolution | 1280*720 |

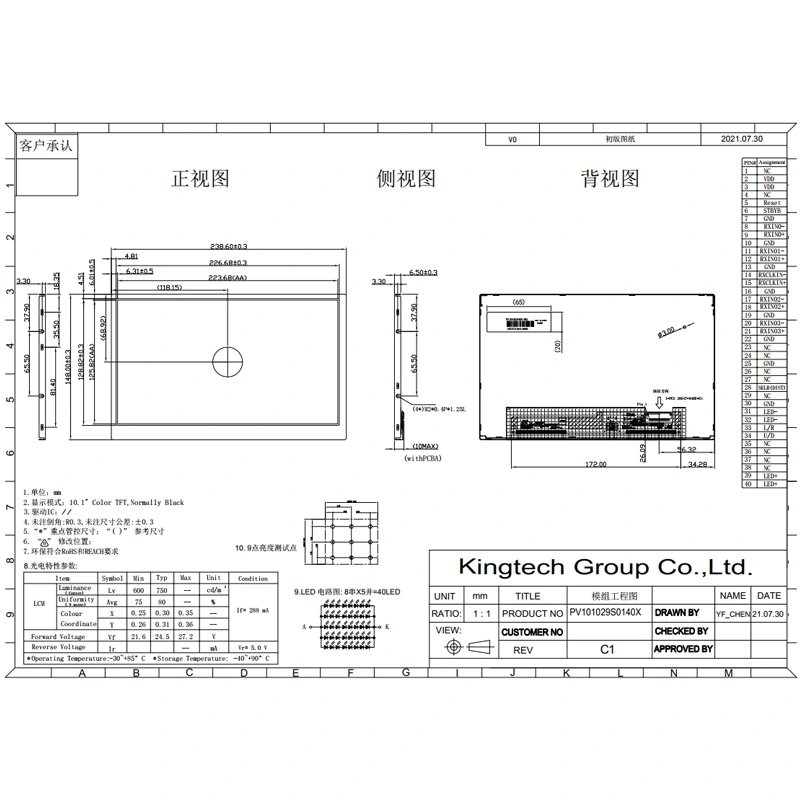

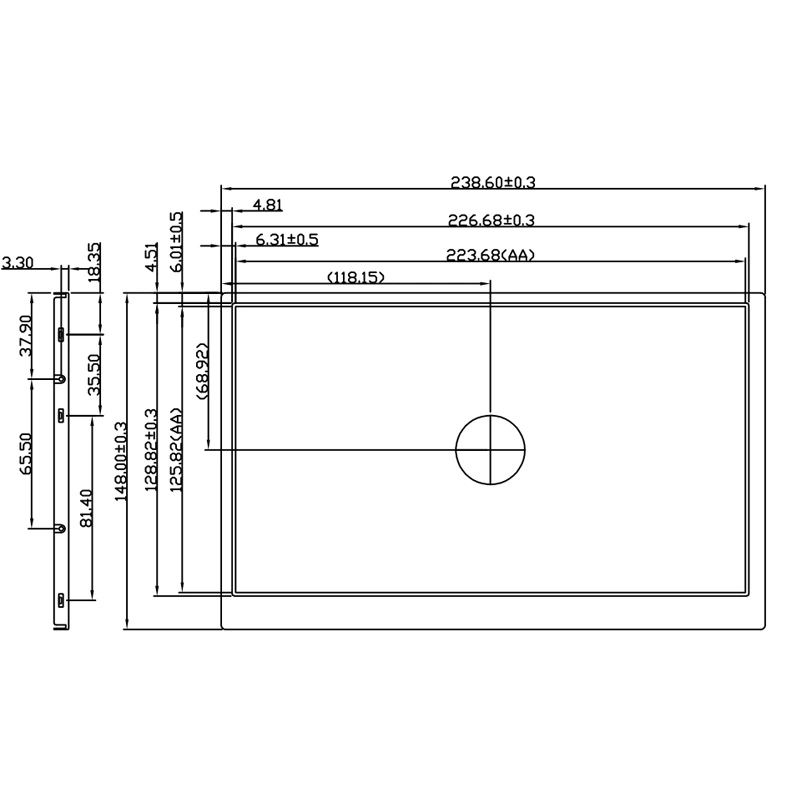

| Outline Dimension | 238.60(W) × 148.00(H) ×6.5(D) mm |
| Active Area(mm) | 223.68(W) × 125.82(H) mm |
| Viewing Angle | All |
| Brightness | 750nits |
| Interface | 1-port LVDS (DE mode only) |
| NTSC | 70% |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -40℃~90℃ |
| Display Type | Normally Black, Transmissive |
| Touch panel | Can custom resistive and capacitive touch |
The 10.1 inch 1280*720 IPS landscape screen TFT LCD display can be used for agricultural equipment, medical device, game console, Industrial and smart homes, etc.
