Kingtech 2.8 inch 240*400 resolution LCD display with stable production. This 2.8 inch TFT LCD display supports RGB + SPI interface, 110nits brightness for sunlight readable. It is TN viewing angle, Transflective LCD display. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Transflective LCD display
Stable supply
TN
110nits brightness/Outdoor/Sunlight readable
Can custom resistive touch and capacitive touch
Get a Quote

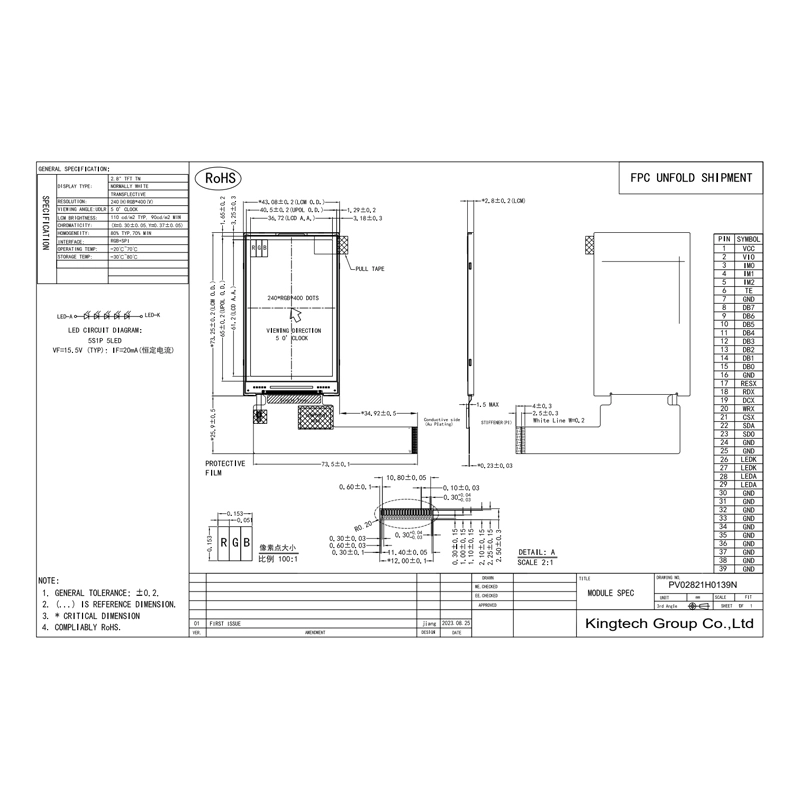

Documentation
| Item | 2.8 inch TN transflective LCD display |
| Model No. | PV02821H0139N |
| Resolution | 240*400 |
| Outline Dimension (mm) | 43.08*73.25*2.8 |
| Active Area (mm) | 36.72*61.2 |
| Viewing Angle | 5 O'clock |
| Brightness | 110nits |
| Interface | RGB+SPI |
| Backlight | 5*1LED |
| Driving IC | / |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, E-bike, Electronic motor |
The 2.8 inch transflective lcd display can be used for Medical, smart home, hand-held device, industrial or others outdoor application, E-bike, Electronic motor.
