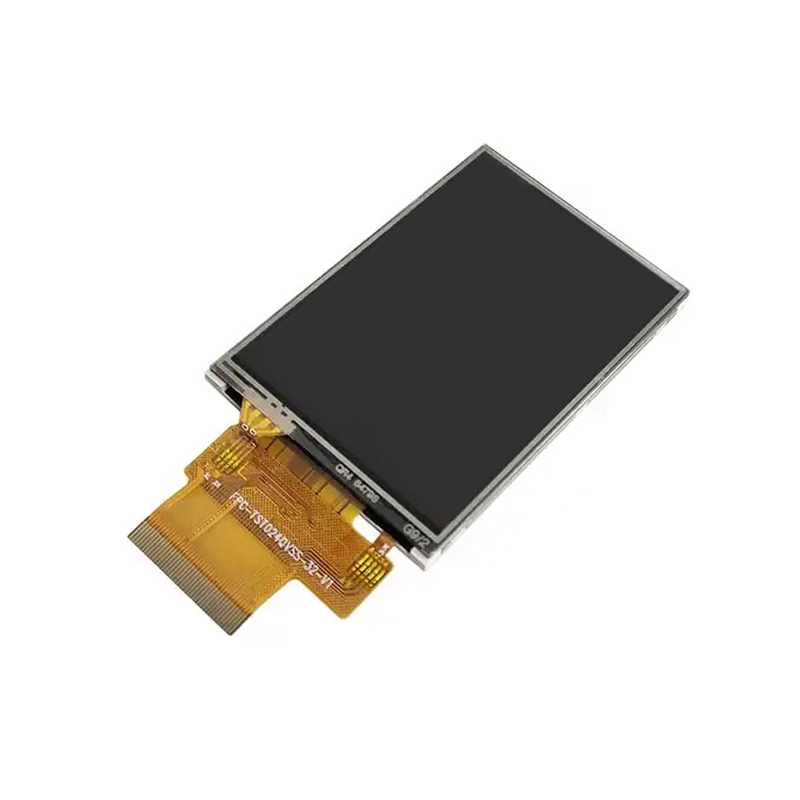

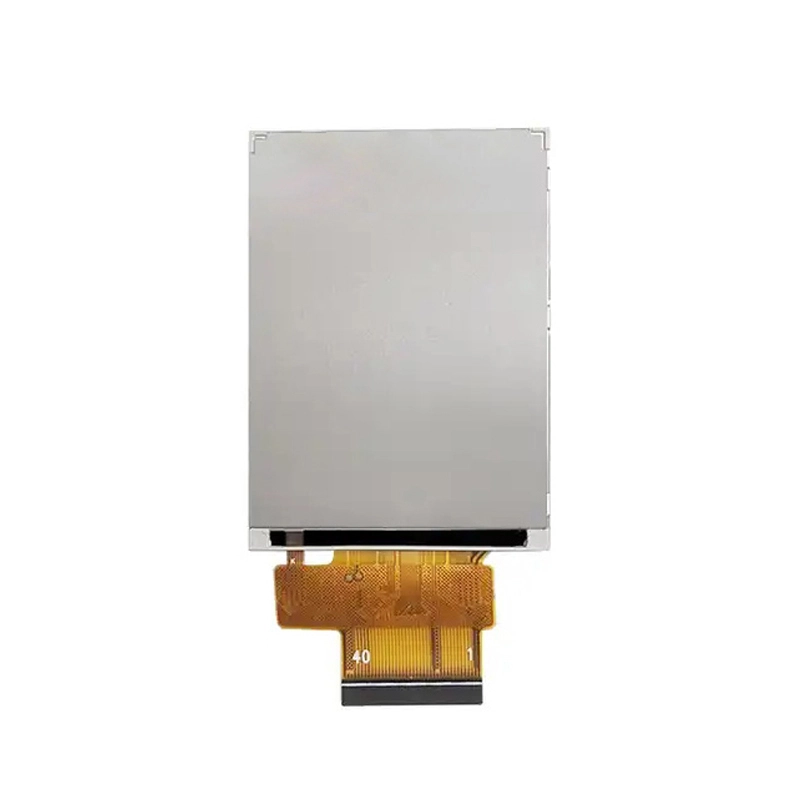

Kingtech 2.4 inch 240*320 resolution LCD display with stable production. This 2.4 inch QVGA resolution TFT LCD module supports SPI interface, which is ST7789T3 driver IC. It is 12 O’clock viewing angle. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT lcd display
Stable supply
QVGA
TN
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 2.4 inch 240*320 resolution spi LCD display |
| Model No. | PV02423H0118Z-R |
| Resolution | 240*320 |

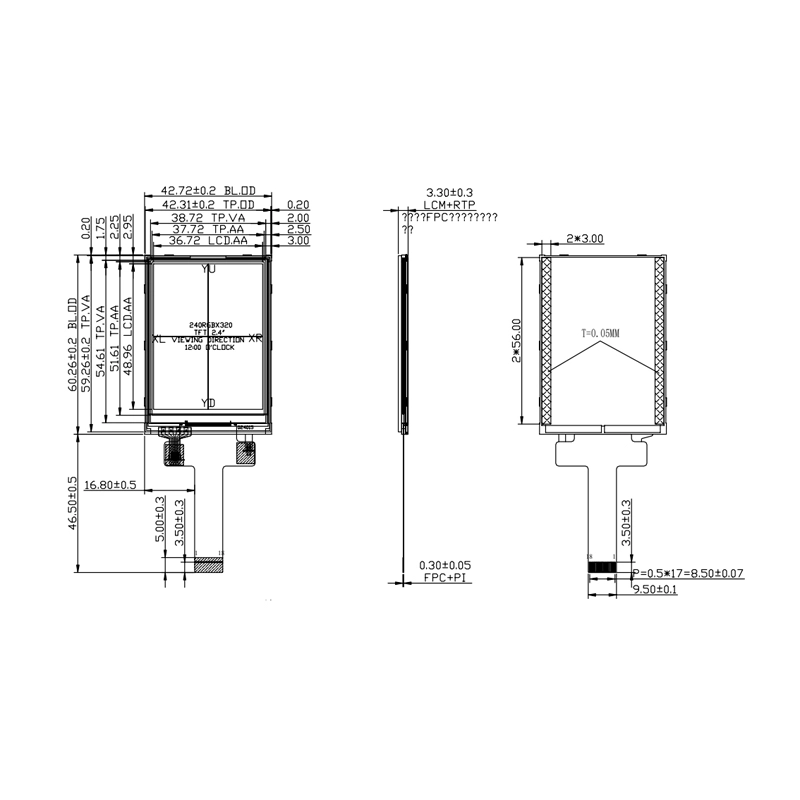

| Outline Dimension (mm) | 42.72*60.26*3.30 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | 12 O'clock |
| Brightness | / |
| Interface | SPI |
| Backlight | 1*4LED |
| Driving IC | ST7789T3 |
| PIN No. | 18 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2.4 inch 240X320 LCD module display can be used for Medical, smart home, hand-held device, industrial or others outdoor application.
