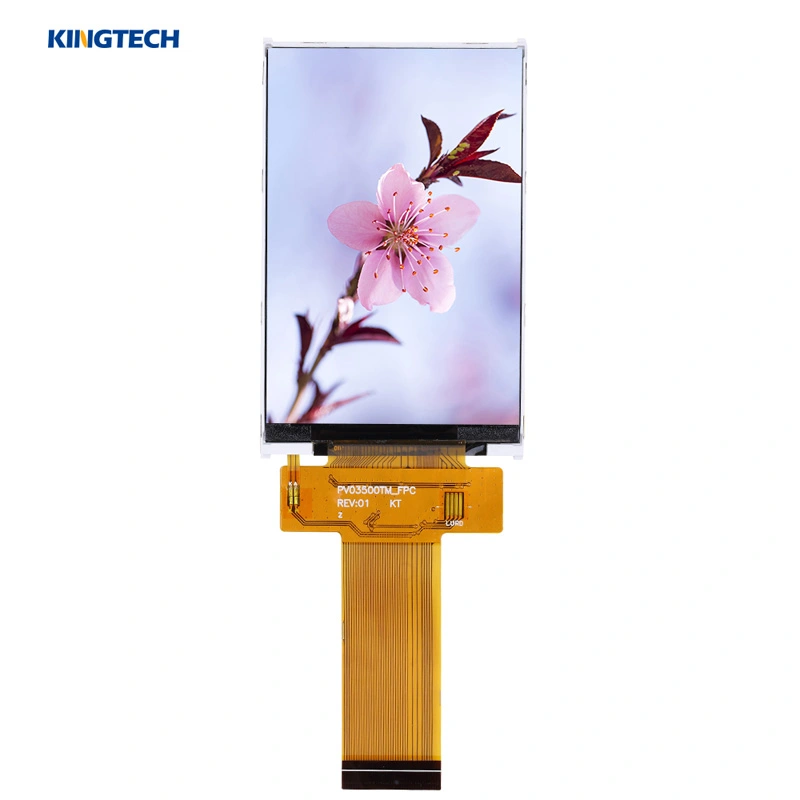

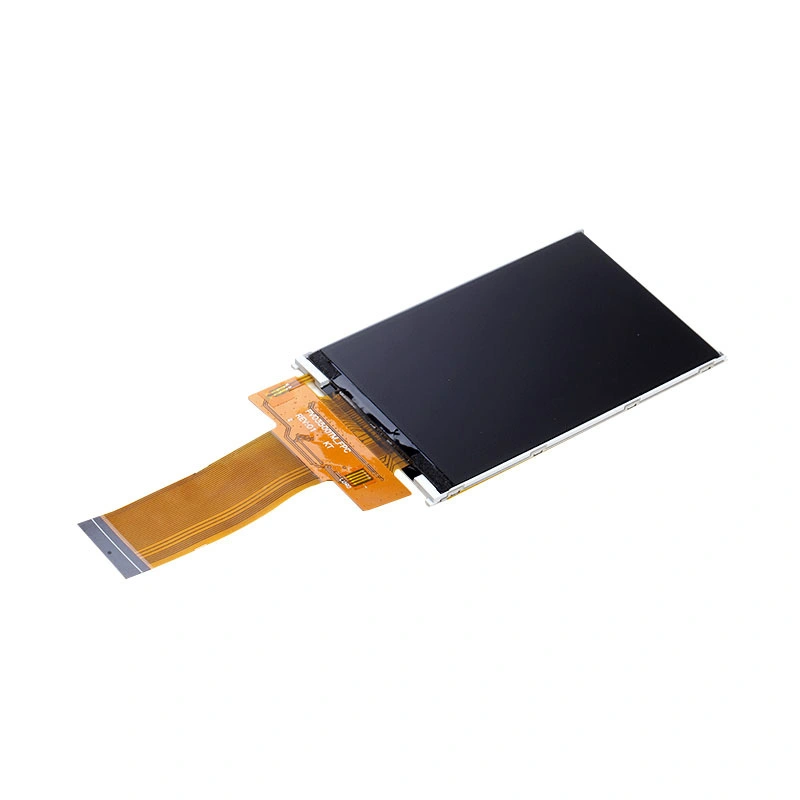

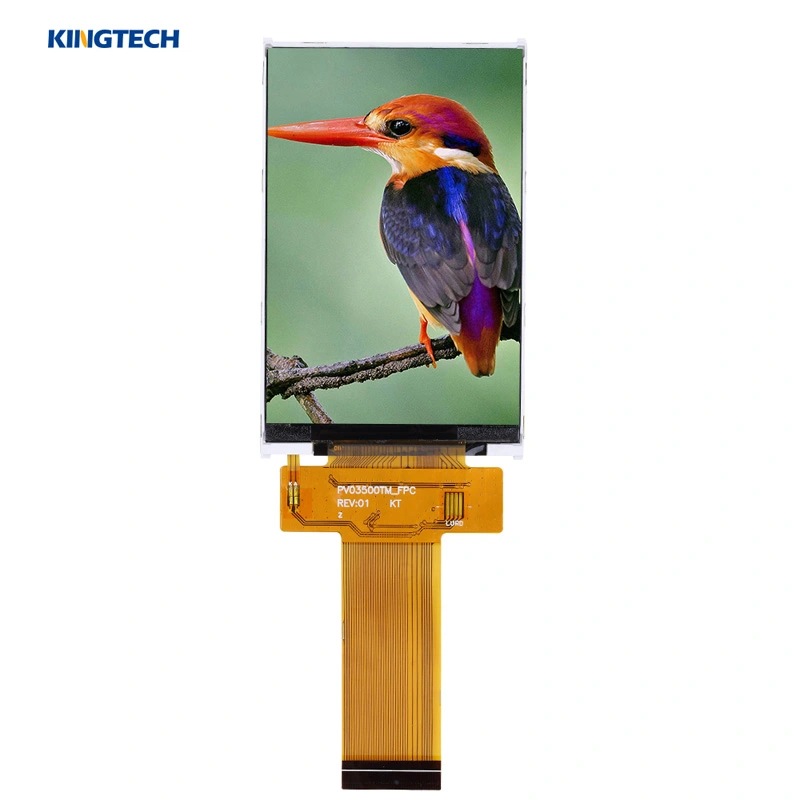

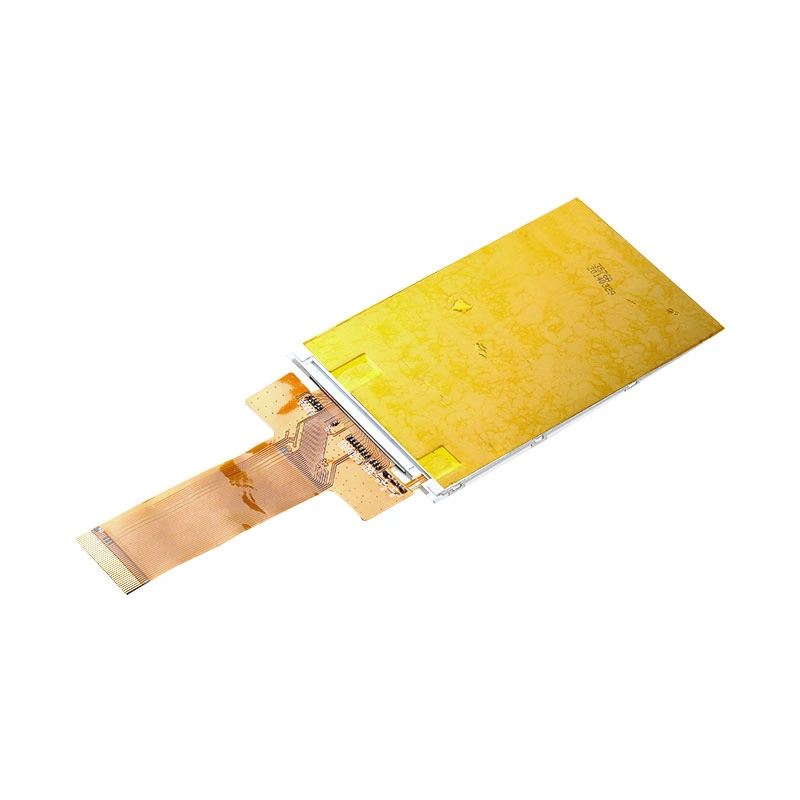

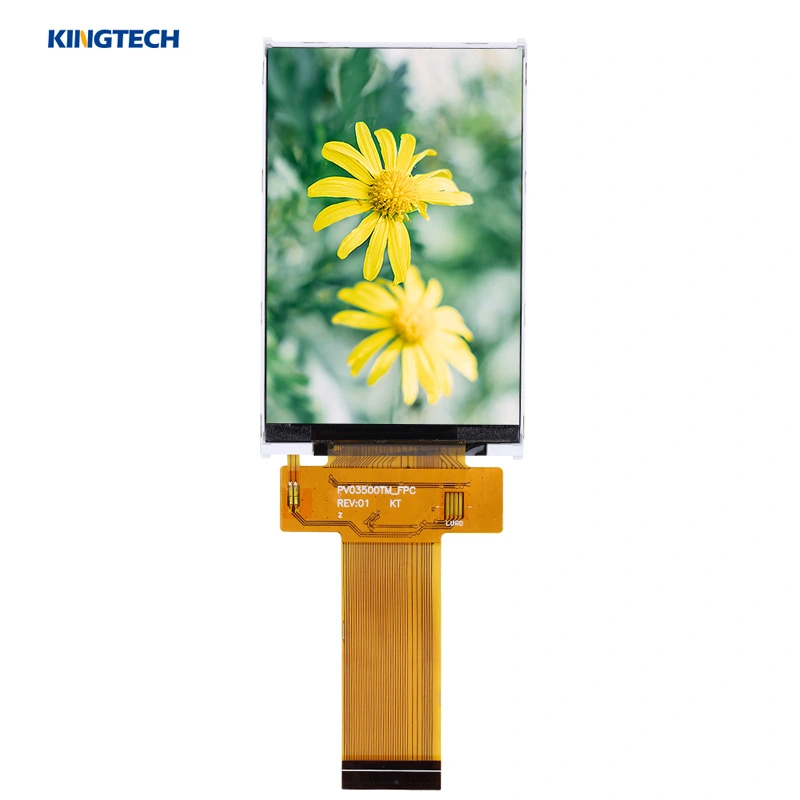

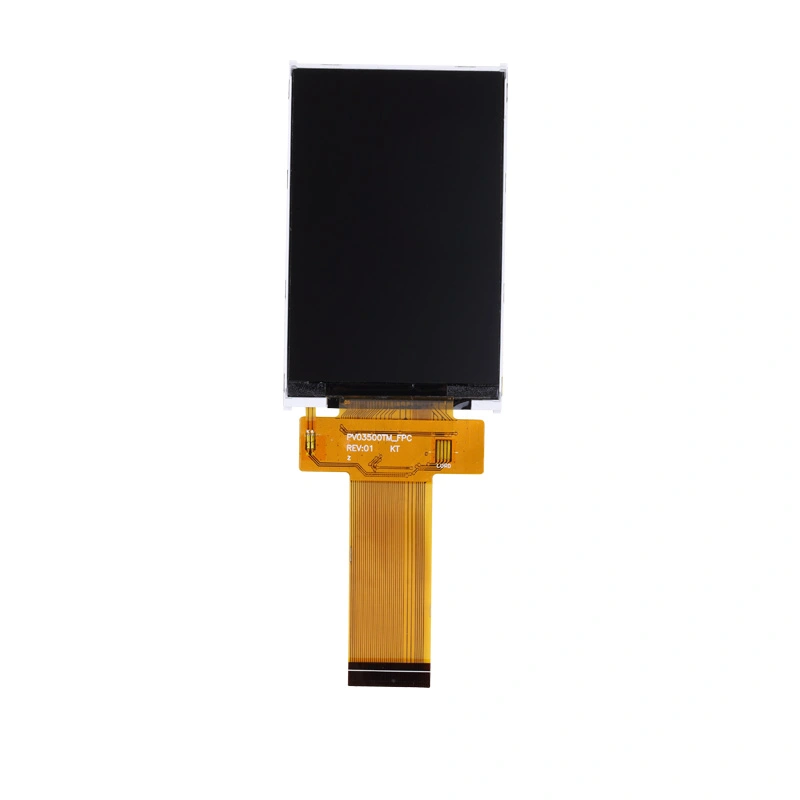

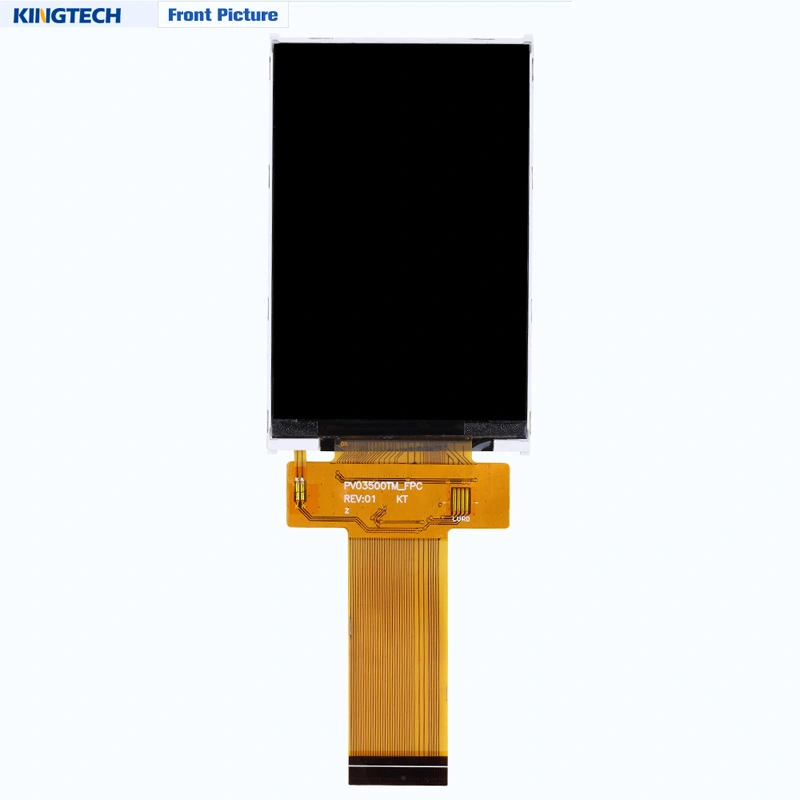

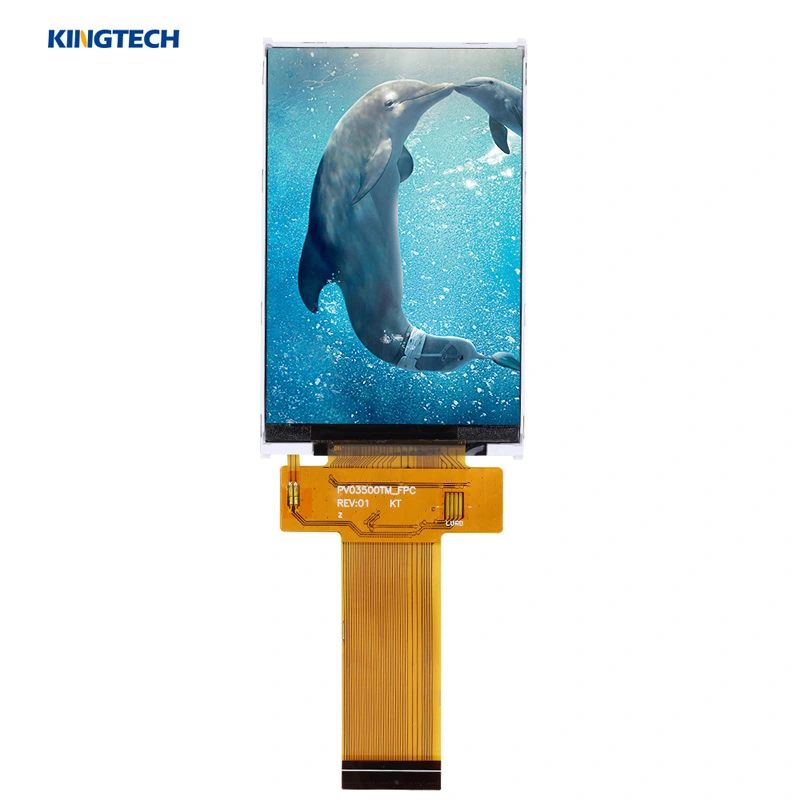

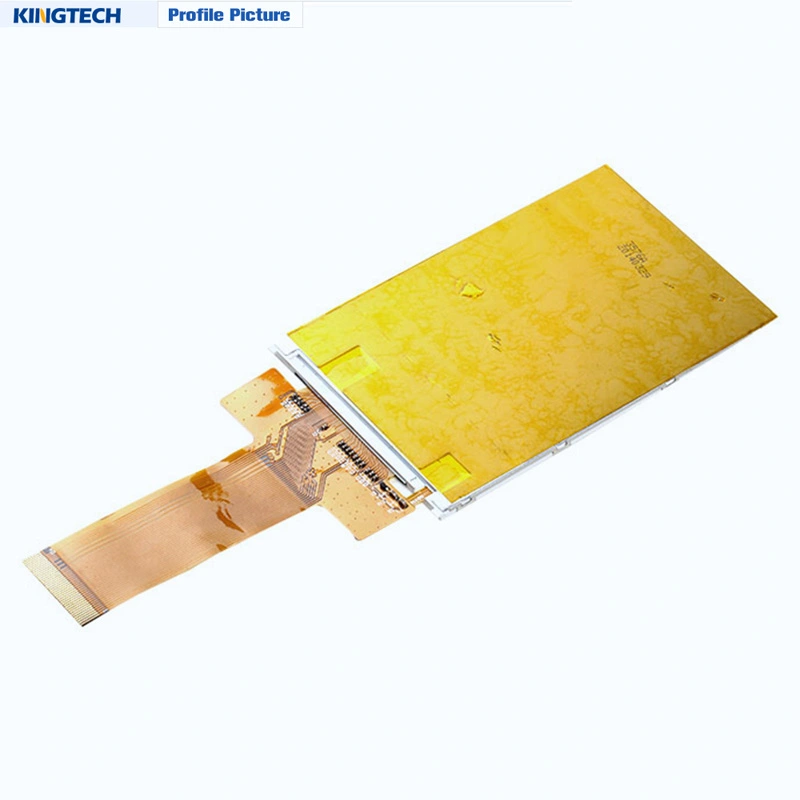

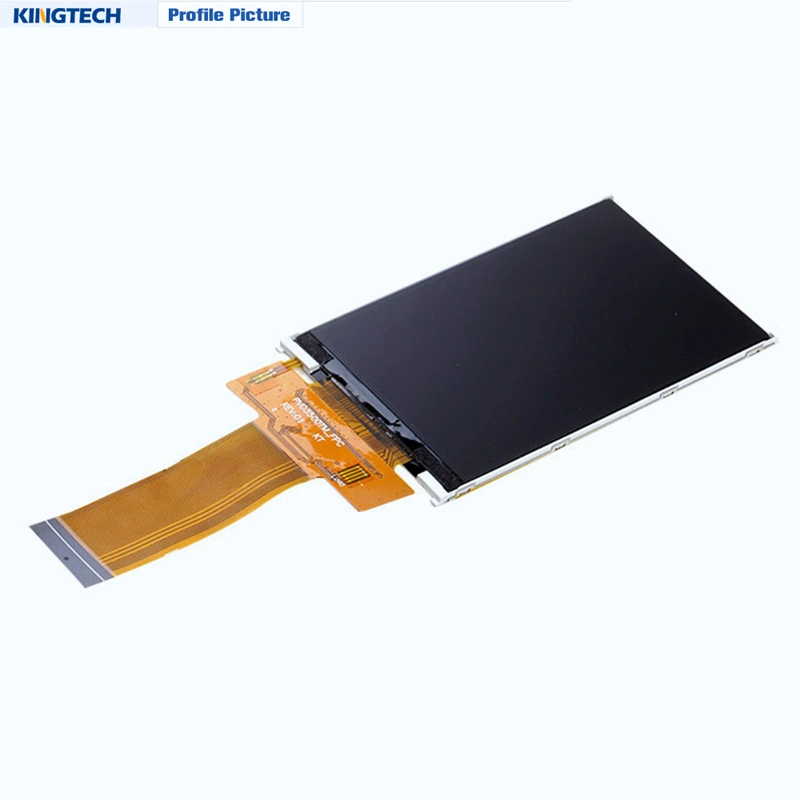

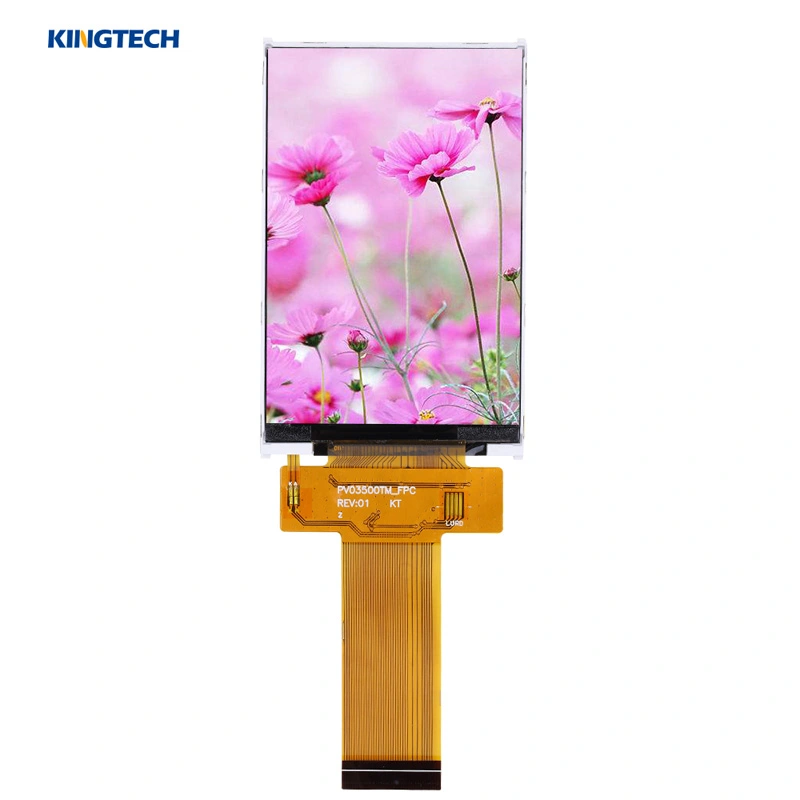

Kingtech IPS/ free/all/ wide viewing angle 3.5 inch 320x480 TFT LCD display is our leading TFT LCD module product. Kingtech is the only distributor of the IPS LCD panel, so we have the TFT LCD module price and resource advantage. The 3.5 inch TFT LCD display has a resistive touch and capacitive touch. The PINOUT is 40PINs, most customers like to use it.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard 3.5 TFT LCD module displays and satisfying one-stop services. Any requests will be welcomed.
All/Free/Wide viewing angle
320x480 resolution
IPS LCD screen
Support resistive touch and capacitive touch
Support MCU 8 / 16 /18 bits
Get a Quote
Documentation
| Item | 3.5 inch 320RGB*480 TFT LCD module |
| Model No | PV035HV-CINA5007 |
| Resolution | 320RGB*480 |
| Outline Dimension | 53.76(W)*84.18(H)*3.30(T)(Exclude FPC) |
| Active Area(mm) | 48.96(W)*73.44(H) |
| Interface | MPU 16-bit |
| Viewing Angle | full viewing angle / IPS |
| Driving IC | ILI9488 |
| Display Mode | Normally Black |
| Operating Temperature | -20 to +70 |
| Storage Temperature | -30 to +80 |
| Brightness | 200nits |
| Touch panel | The resistive and capacitive touch panel |
The 3.5 inch TFT LCD can be used for medical devices, handheld equipment, industrial control, smart home, POS machine, and the black box.
