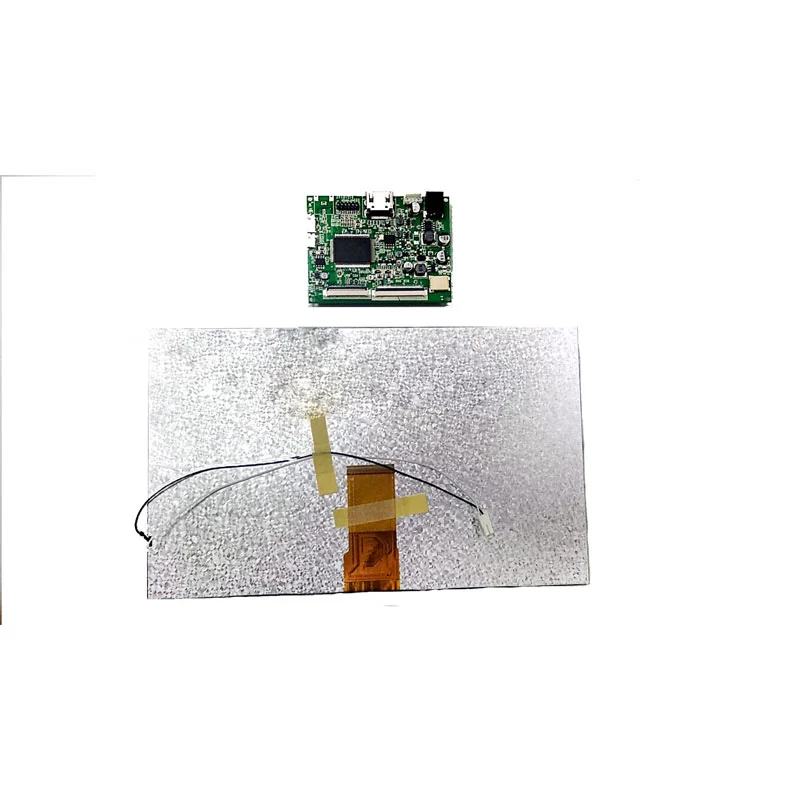

Kingtech 10.1inch 1024x600 IPS LCD display supply very stable. This 10.1inch supports TTL interface. In addition, the 10.1inch TFT module has exsiting HDMI Board.
The life-time is 20000h, and this 10.1inch screen is All/Free/Wide viewing angle/Normally Black/IPS type. For the touch part, Kingtech Dispaly can custom the touch according to customer's requirements.
All/Free/Wide viewing angle/Normally Black/IPS
1024x600
Stable supply
HDMI board / Convert board
Application is for Agricultural equipment, game console
Can custom capacitive touch screen
Get a Quote
Documentation
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requirements of specifications will be welcomed.
| Item | 10.1inch IPS 1024x600 LCD display | 关键参数 |
| Model No | PV101017LZR50Q | |
| Resolution | 1024x600 | y |
| Outline Dimension | 235(W)× 143(H)× 4.5(T) | y |
| Active Area(mm) | 222.72(W)× 125.28(H) | |
| Interface | TTL | |
| Brightness | 350nits | y |
| Viewing Angle | All | y |
| LED life | 20000h | |
| Display Mode | TN / Transmissive / Normally Black | |
| PIN | 50 | |
| Operating Temperature | -20℃~70℃ | y |
| Storage Temperature | -30℃~80℃ | |
| Board | Convert Board/HDMI Board | y |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 1024x600 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
