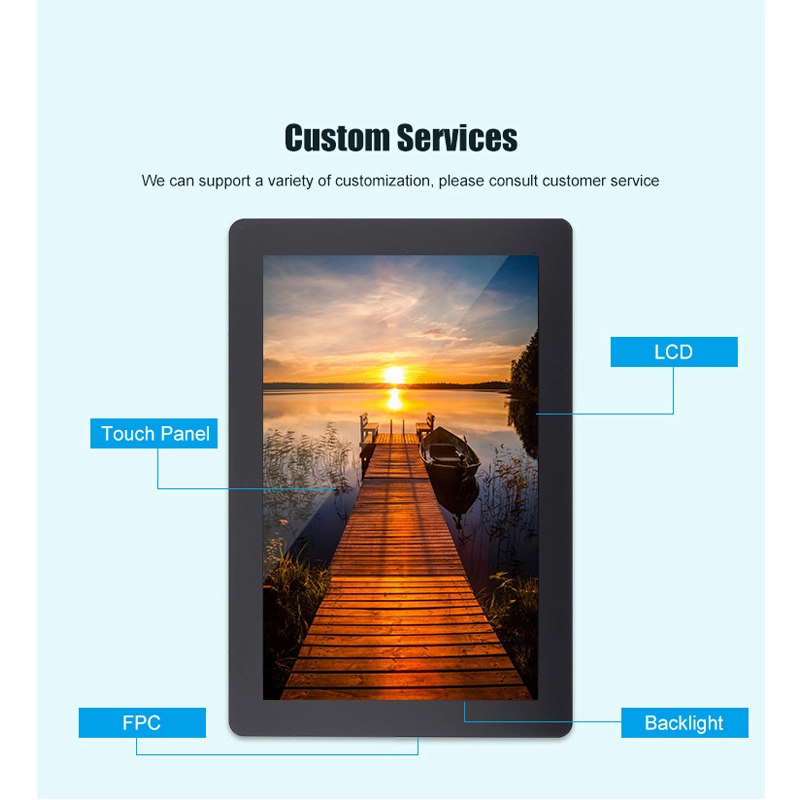

Kingtech PV08010T0630K is composed of a transmissive type TFT-LCD Panel, driver circuit, capacitive touch panel and backlight unit. Its LCD panel is filled with special wide temperature. The resolution of the 8.0inch TFT-LCD contains 1280x720 pixels and can display up to 16.7M colors, it’s Free/Full/Wide/All viewing angle. The 8inch LCD module supports LVDS interface. It has a compatible Capacitive touch screen.
Ultra wide temperature,-30-85 working temp
High brightness, 1000nits, Sunlight readable, Outdoor
Capacitive touch screen can be customized
Free/Full/Wide/All viewing angle
Life-time 20000h
Get a Quote
Documentation
| Item | 8.0 inch IPS 1280*720 LCD module |
| Model No. | PV08010T0630K |
| Resolution | 1280*720 |
| Outline Dimension (mm) | 192.8*116.9*7.0 |
| Active Area (mm) | 176.64 *99.36 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 7*3LED |
| Pin nums | 30 |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~95C |
| Touch screen | Capcitive touch optional |
| Application | Outdoor device, Medical, industrial, device in Harsh environment, Marine display, Automotive |
The 8inch 1280x720 TFT LCD module applicable for Outdoor device, Medical, industrial,device in Harsh environment, Marine display, Automotive.
