PV07043Y0140U is Kingtech 7inch WVGA TN LCD display module. It is a replacement for Innolux AT070TN83 V.1 and Sharp LQ070Y3DG3B_(LD-21305A). Its resolution is 800x480/WVGA and its viewing angle is 12 o’clock. It has each 8 backlights in 3 parallel line with brightness 550nits. Its interface is standard 40pins, 18bit RGB interface.
Replacement for Innolux AT070TN83 V.1 and sharp LQ070Y3DG3B_(LD-21305A)
7inch TN LCD display module
800x480 /WVGA

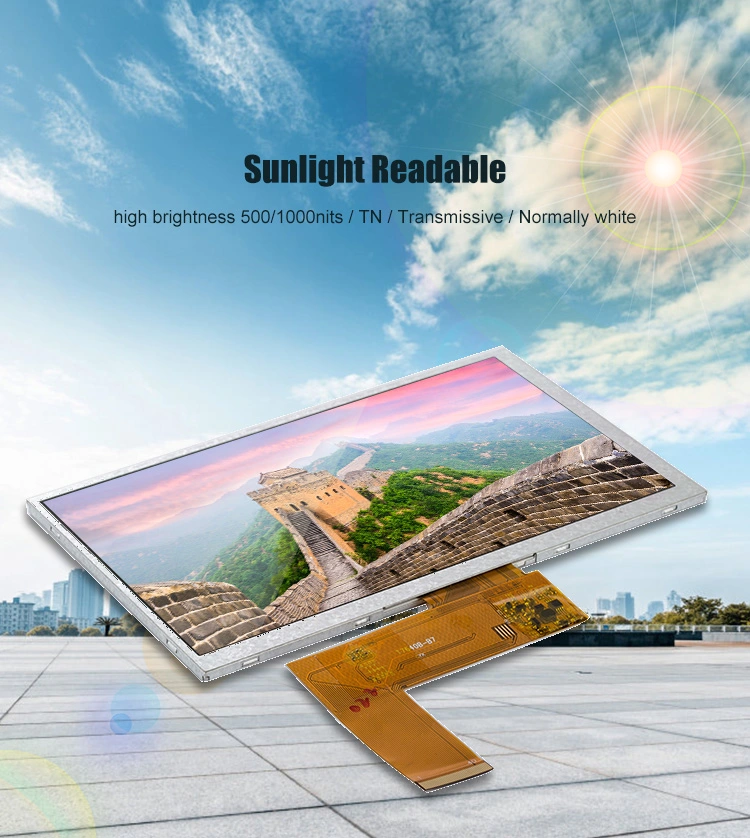

550nits /high brightness/sunlight readable
18bit RGB interface
Support capacitive touch
Get a Quote
Documentation

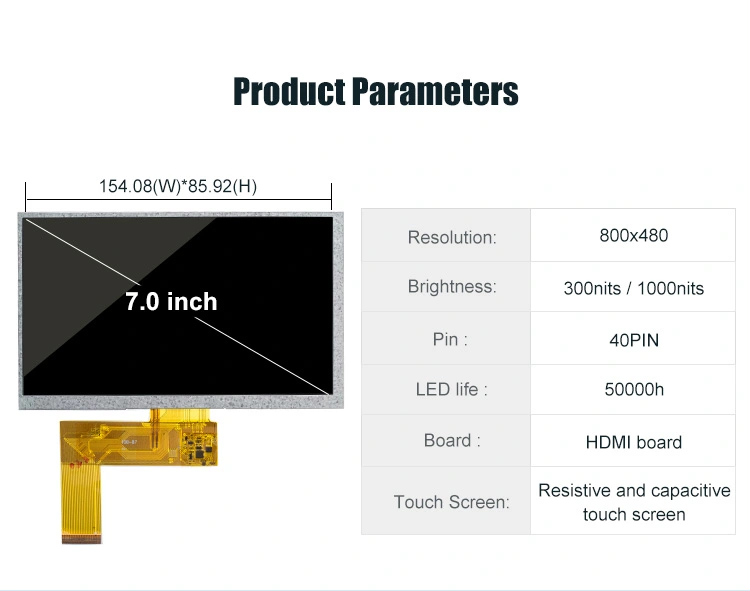

| Item | 7.0 inch TFT 800x480 module display |
| Model No. | PV07043Y0140U |
| Resolution | 800*480 |

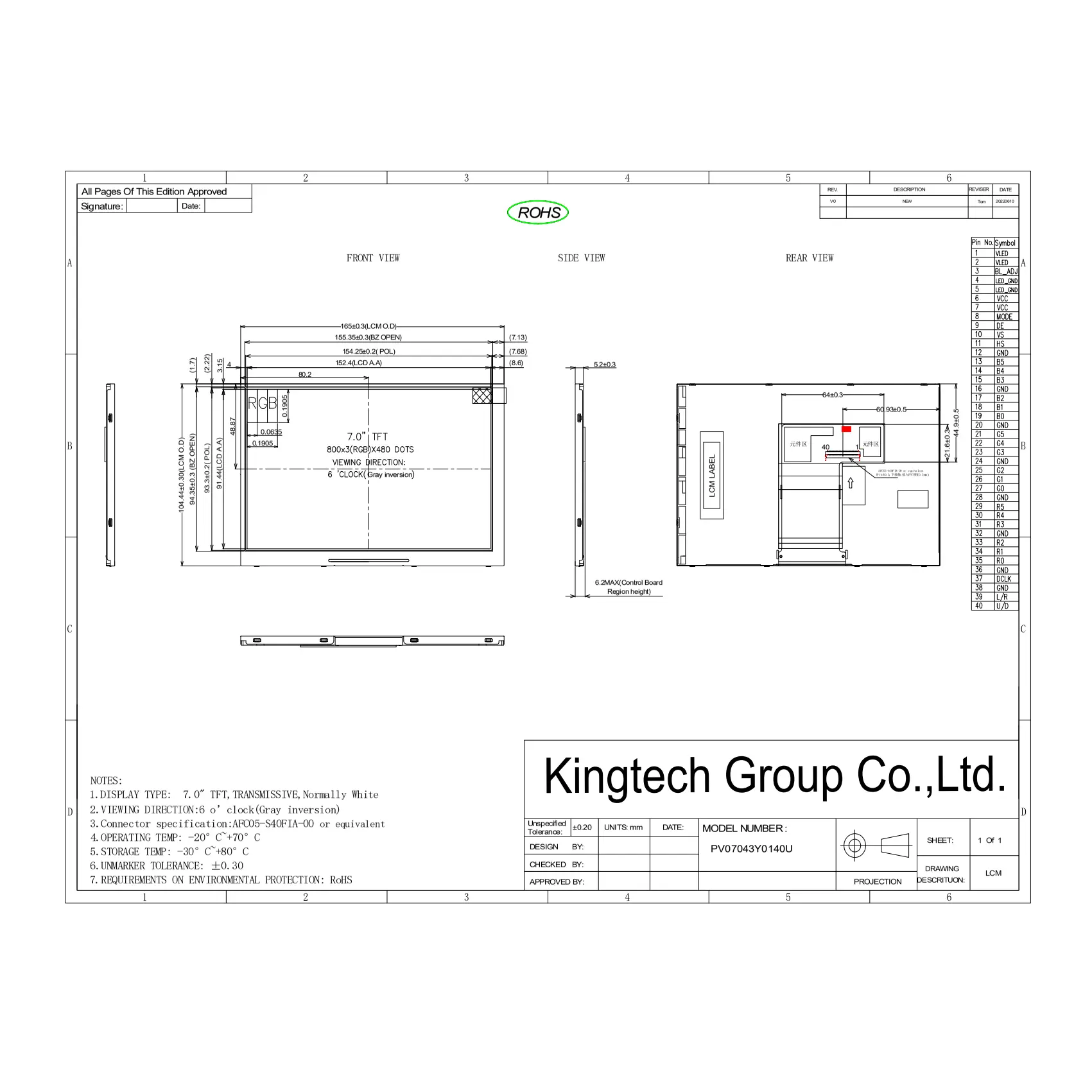

| Outline Dimension (mm) | 165*104.44*5.20 |
| Active Area (mm) | 152.40*91.44 |
| Viewing Angle | 6 o'clock |
| Brightness | 550nits |
| Interface | 18bit RGB Interface |
| Backlight | 3*8LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capative touch screen |
| Application | Industrial equipment, small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator. |
7inch 800x480 LCD module can be used for Industrial equipment such as small processing equipment, CNC equipment,Medical,ECG monitor, fetal heart rate monitoring, ventilator.
