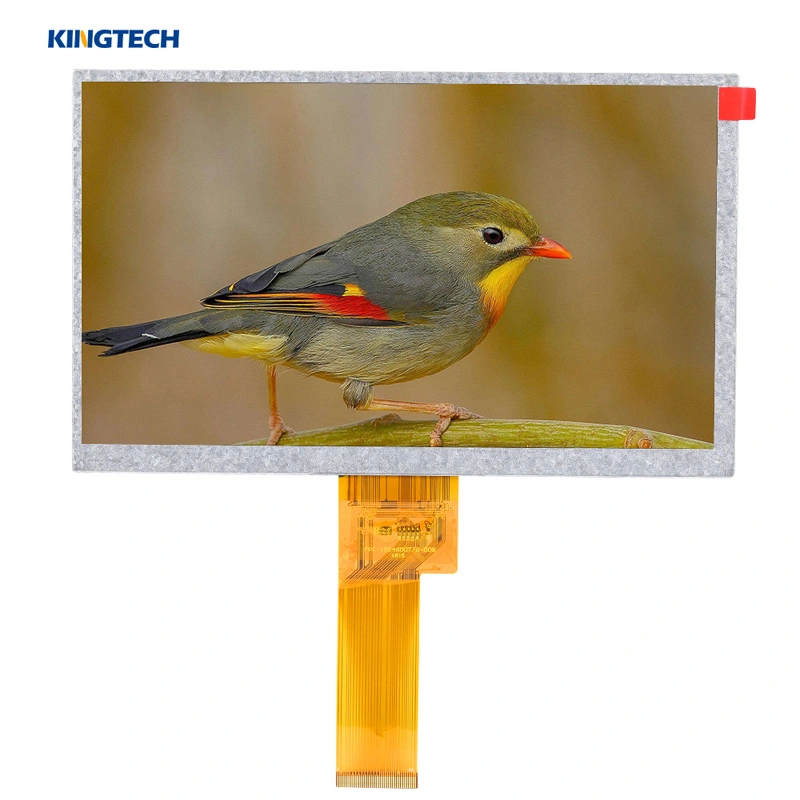

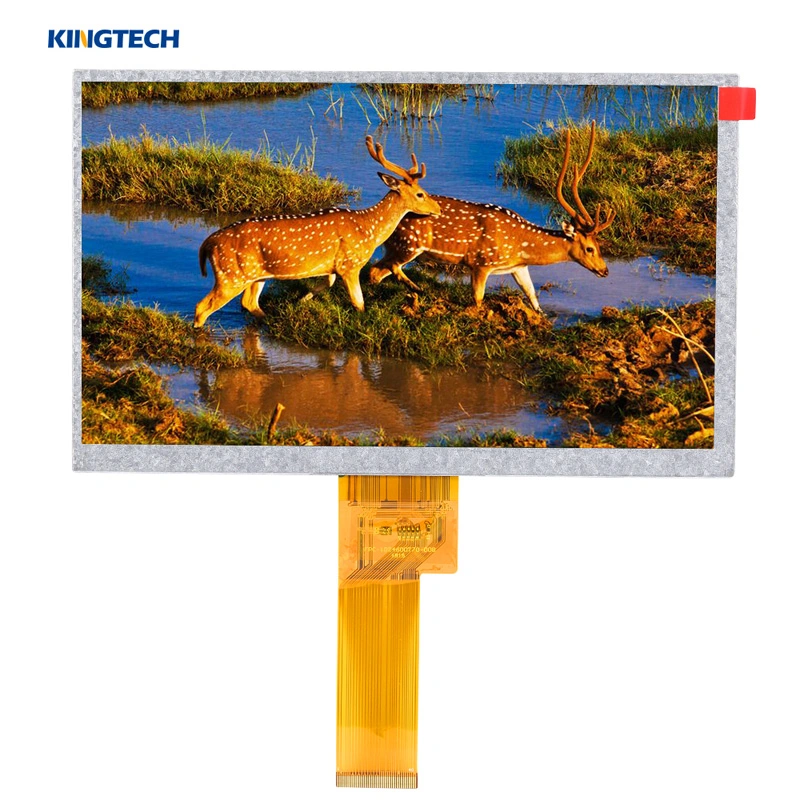

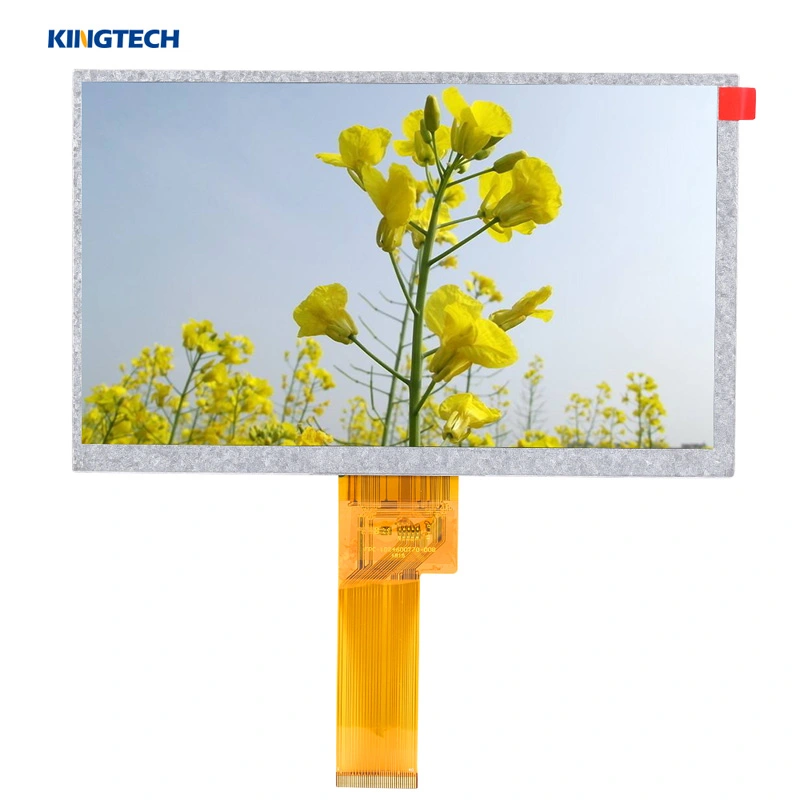

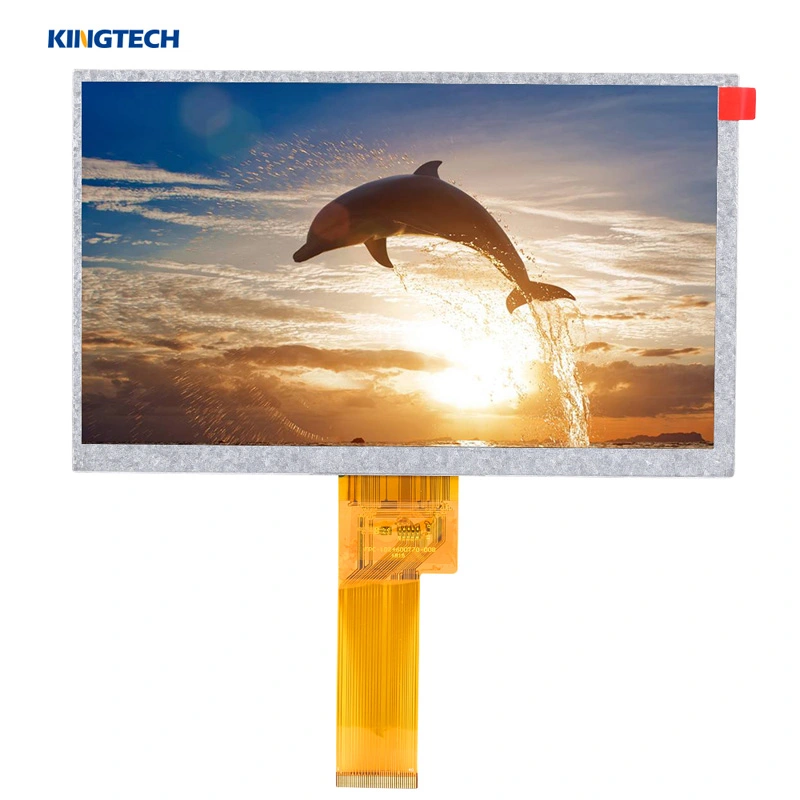

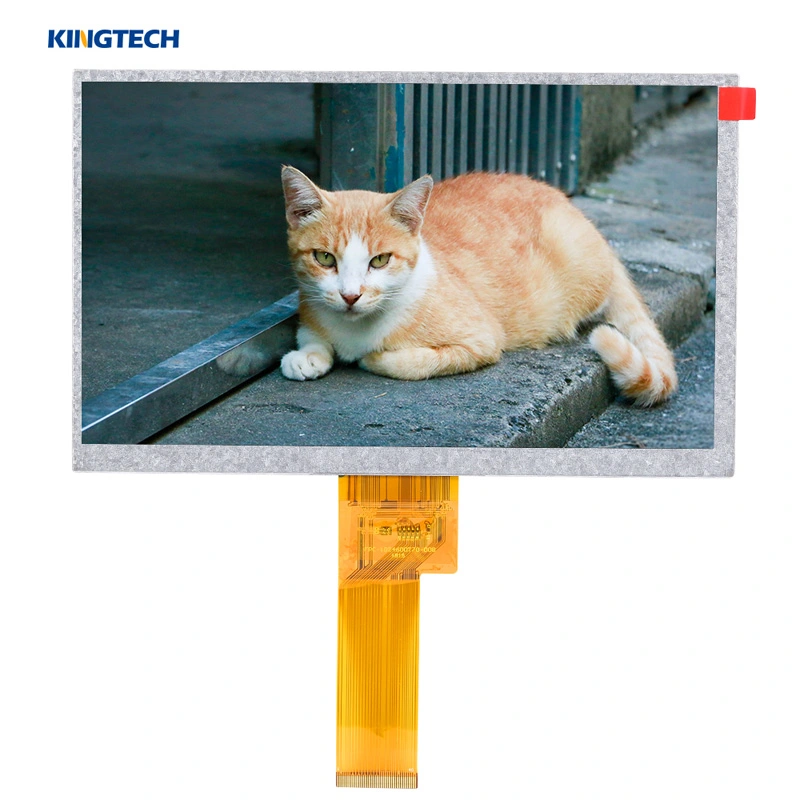

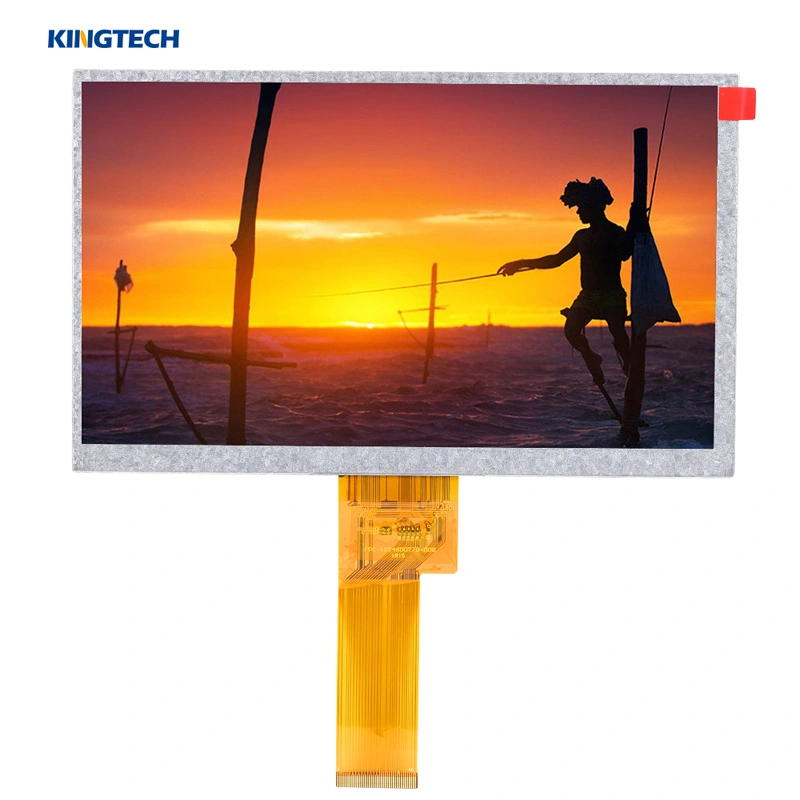

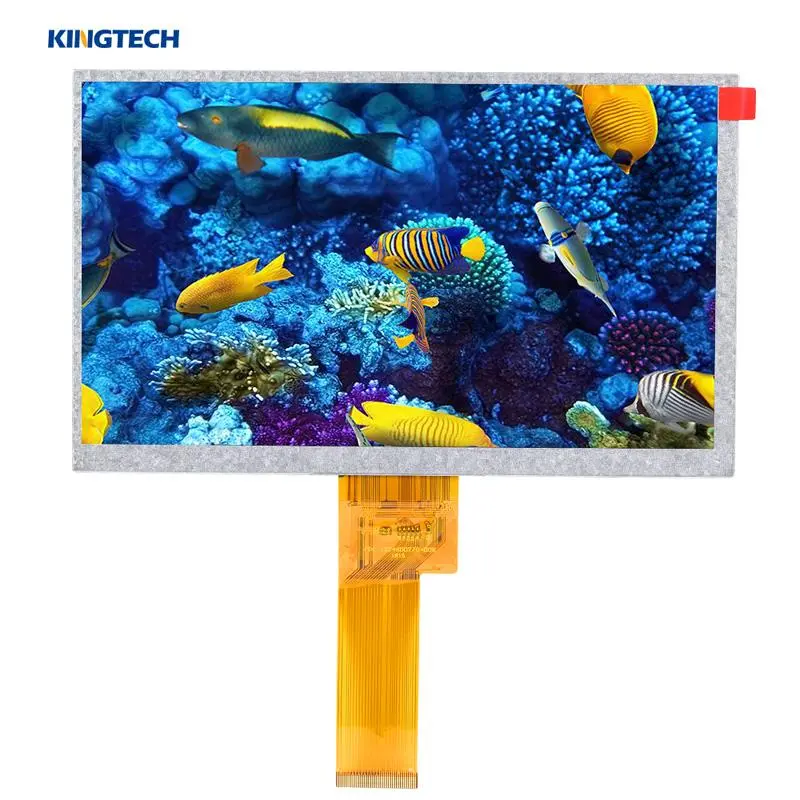

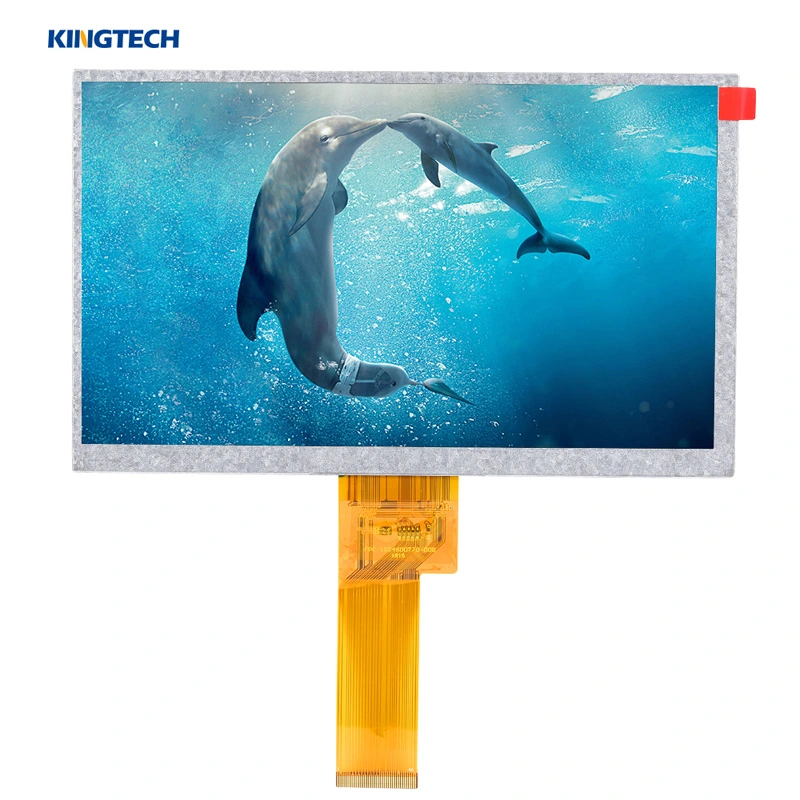

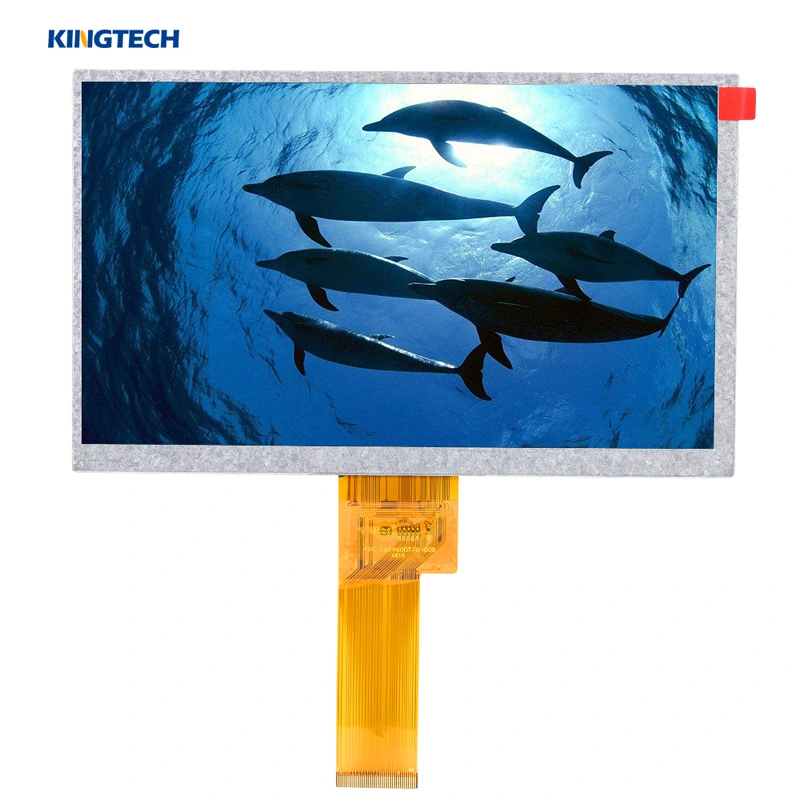

Kingtech 7inch 1024x600 TN 12 O'clock TFT LCD display is a common size in the market, the supply is very long and stable. It's an LVDS interface. The 7inch LCD screen has the existing resistive touch and capacitive touch.

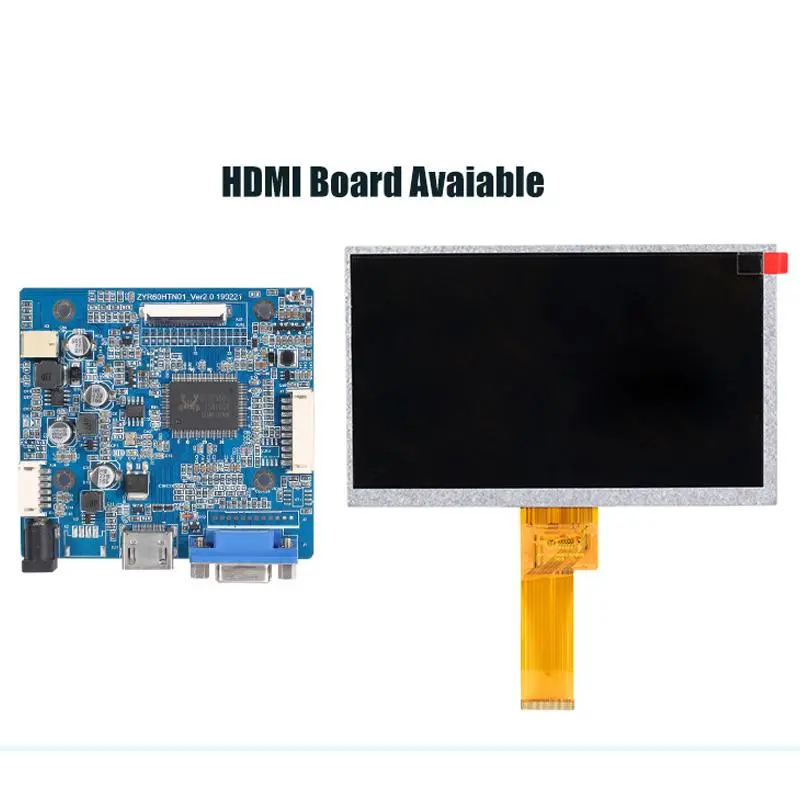

This 7inch TN TFT display can reach 1000nits and can be used for outdoor devices. The 7inch has an existing HDMI Board.


As a LCD panel company, we have achieved great progresses in technology of producing standard LCD dispaly. Any requests will be welcomed.



Features of LVDS Interface 7 Inch 1024x600 Resolution LCD Display

  • 1024x600 Landscape resolution

  • TN type

  • LVDS interface

  • High brightness/sunlight readable/1000nits

  • Support resistive touch and capacitive touch

  • HDMI Board


Specification of LVDS Interface 7 Inch 1024x600 Resolution LCD Display

Item 7.0 inch 1024x600 TFT module display
Model NoPV07006LZR40E
Resolution 1024x600
Outline Dimension 164.90(W)*100.00(H)*5.5(T)
Active Area(mm)154.21(W)*85.92(H)
Interface LVDS
Viewing Angle12 O'Clock
Brightness500nits / 1000nits
LED life50000h
Display Mode Transmission / Normally White
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
TouchscreenResistive / capacitive touchscreen
BoardHDMI board


Application of LVDS Interface 7 Inch 1024x600 Resolution LCD Display

  • The 7inch 1024x600 TN TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and E-Bike.

  • The 7inch TN 1000nits TFT LCD module also can be used in sunlight-readable such as advertising machines and automotive devices.
