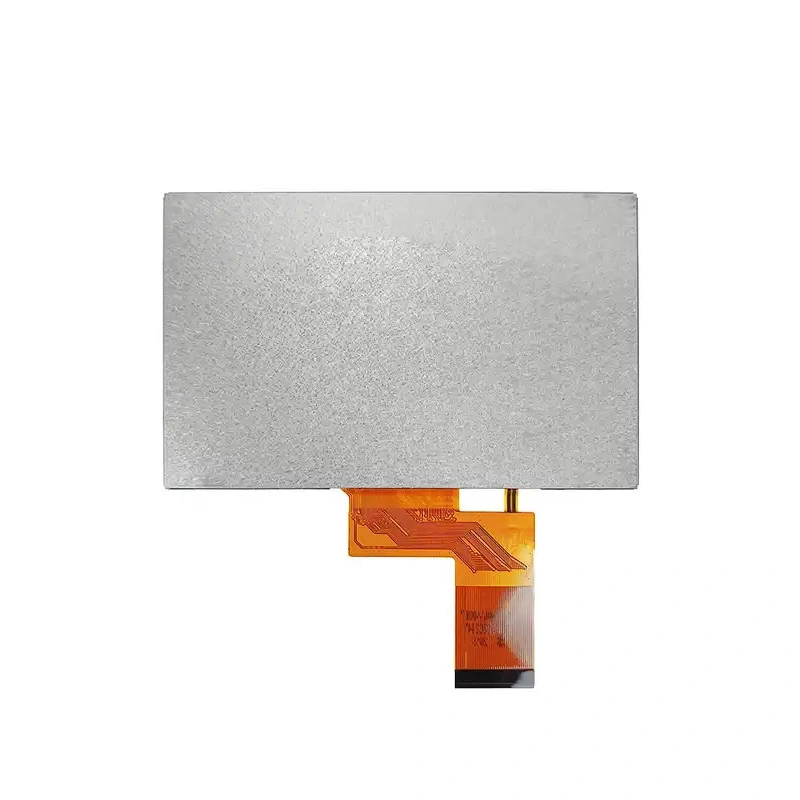

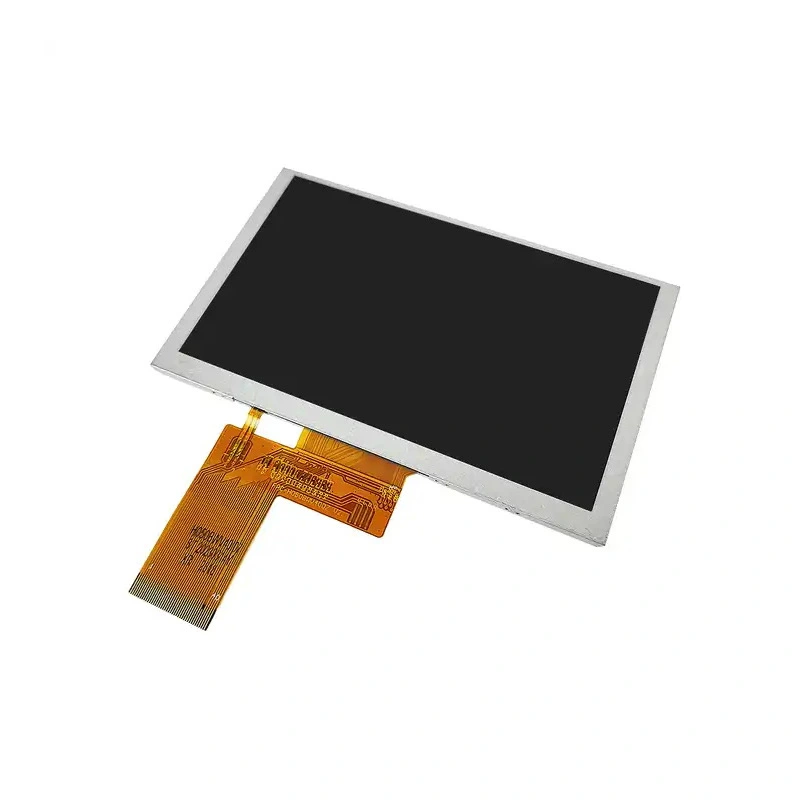

Kingtech 5.0 inch 800*480 TFT module display supply very stable. This 5.0 inch supports RGB interface. In addition, the 5.0 inch TFT display module brightness is 1200nits and can be used for outdoor device, and this 5.0 inch WVGA TFT screen is all viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
WVGA
Full/Wide/All viewing angle
Sunlight readable/High brightness/Outdoor device
Wide working temperature
Can custom resistive touch and capacitive touch
Get a Quote
Documentation

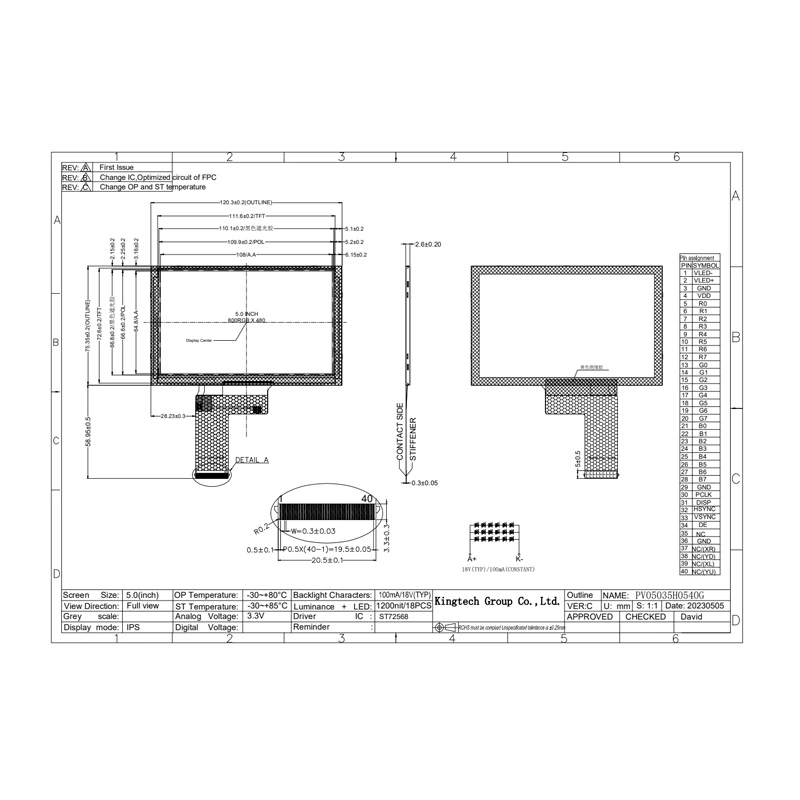

| Item | 5.0 inch IPS 800*480 TFT display |
| Model No. | PV05035H0540G |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.3 *75.35* 2.6 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1200nits |
| Interface | RGB |
| Backlight | 6*3LED |
| Driving IC | ST72568 |
| PIN No. | 40 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, E-bike |
The 5.0 inch 800*480 TFT display module can be used for Medical, hand-held device, industrial or outdoor device, E-bike, Electronic Motor.
