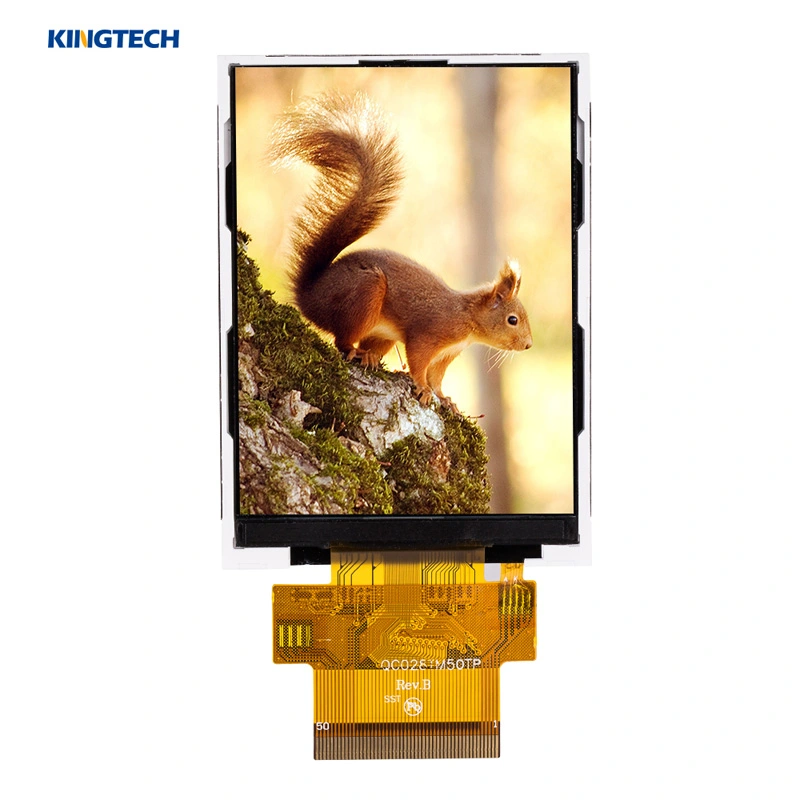

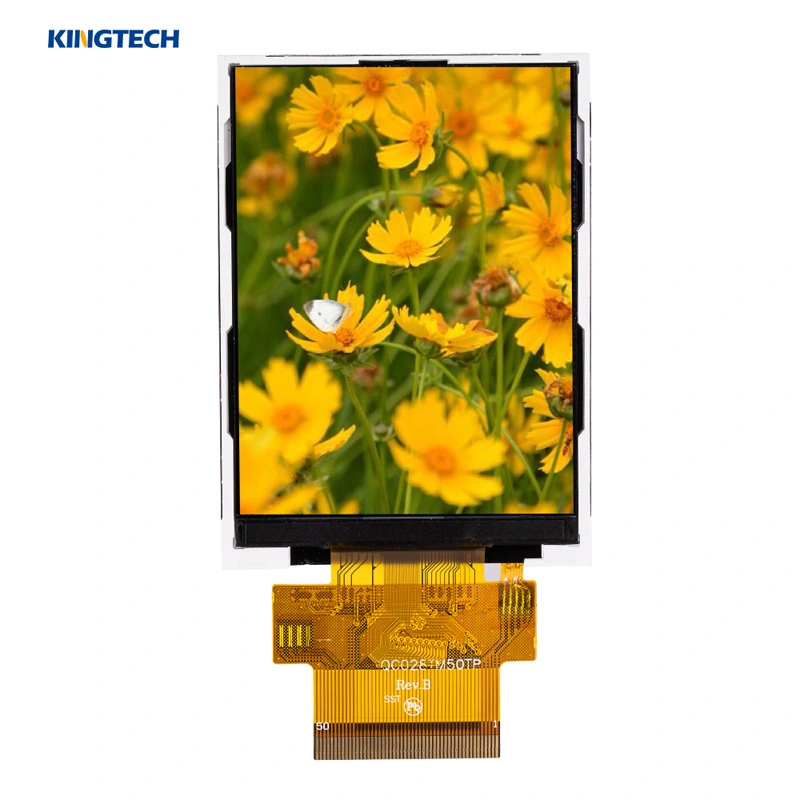

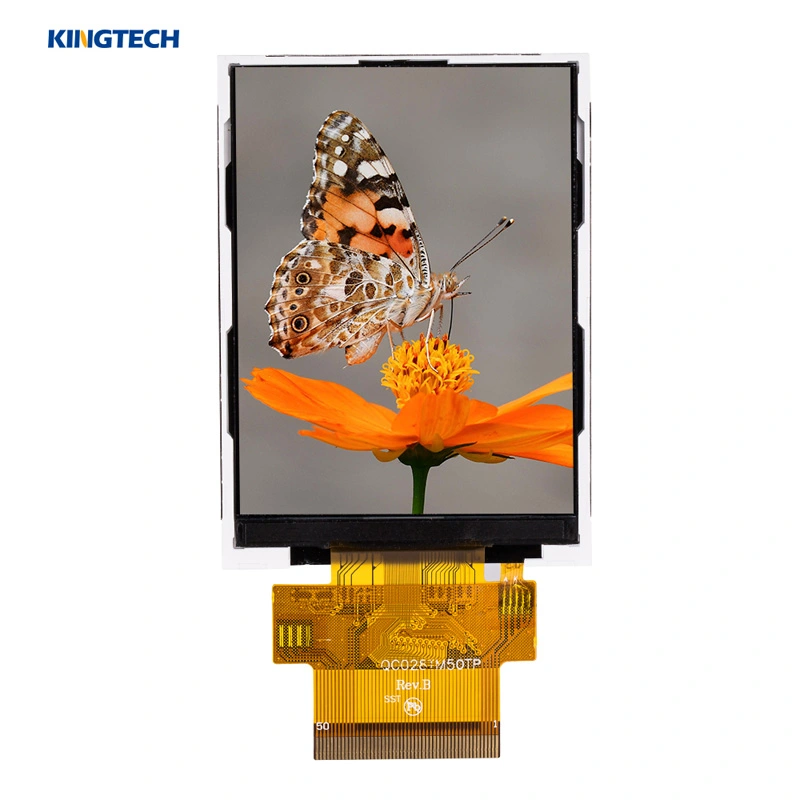

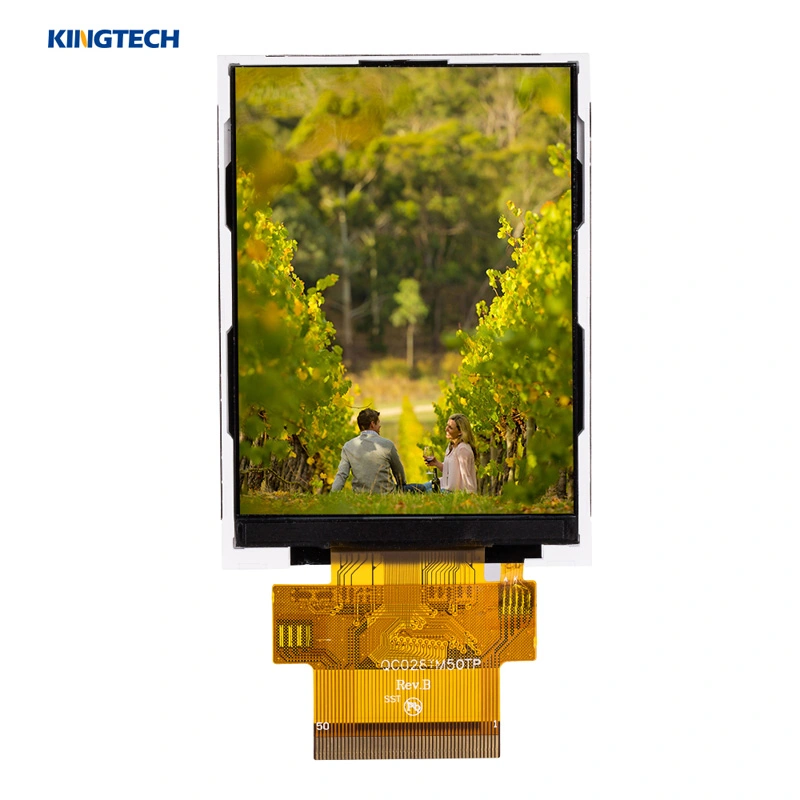

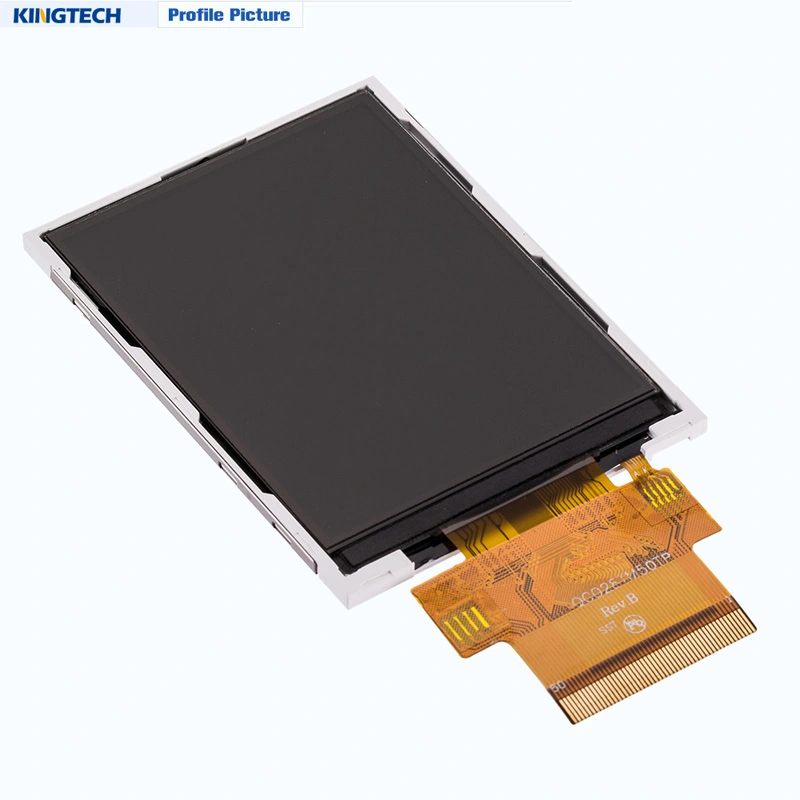

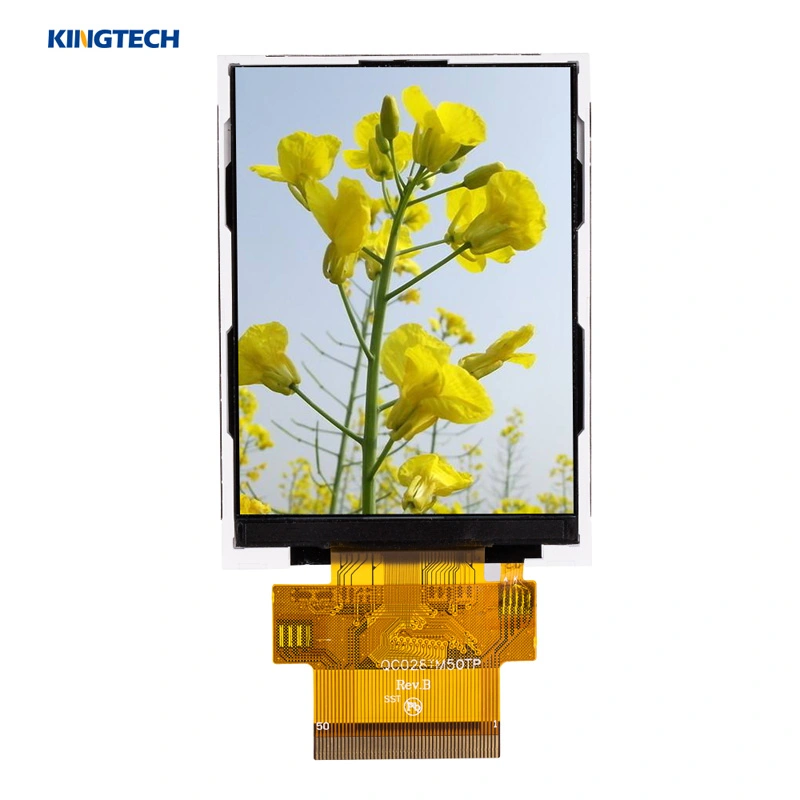

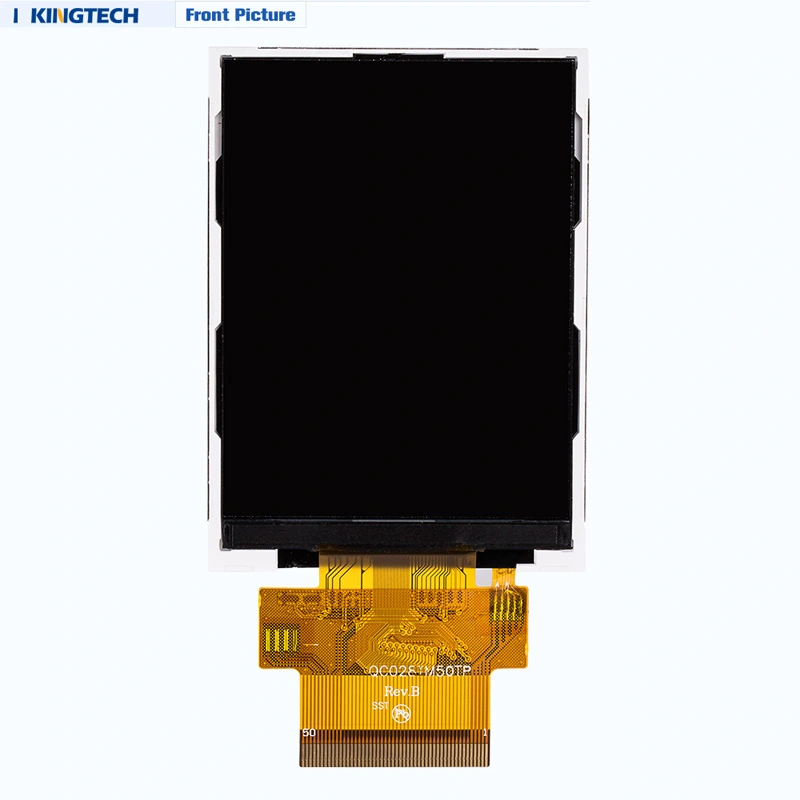

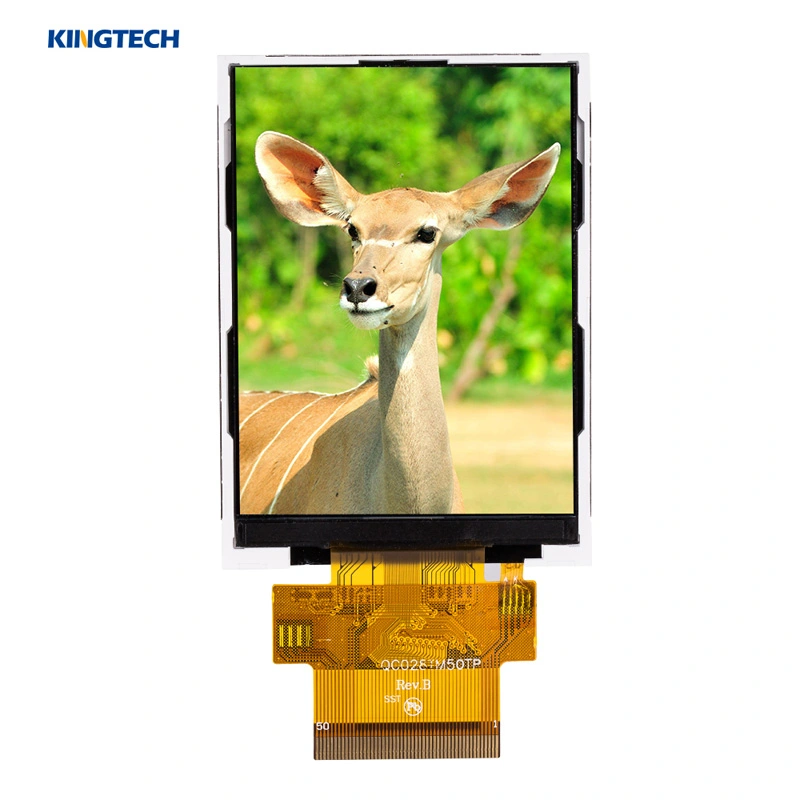

Kingtech 240x320 (QVGA) TN 2.8 inch TFT LCD display is our most leading MCU interface display product. The 2.8inch TN display has the existing resistive touch and capacitive touch. We, as a 2.8 inch LCD display supplier, can also custom the touch part according to customer requirements. The high quality 2.8 inch mipi interface display can support MCU, RGB interface LCD, and SPI interfaces. Moreover, most of the customers used it for medical devices.
240x320 /QVGA resolutions
Support SPI / RGB / MCU interfaces
Small / Tiny display
Support TFT resistive touchscreen and capacitive touch
Get a Quote
Documentation
| Item | Kingtech 2.8inch 50-pin LCD display |
| Model No | PV02816HZ24H |
| Resolution | 240(RGB)×320 |
| Outline Dimension | 50.0(W)×69.2(H)×3.6(T) |
| Active Area(mm) | 43.2(W)×57.6(H) |
| Interface | 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080-series 6-/16-/18-bit RGB interface |
| Viewing Angle | 12 o'clock |
| Driving IC | ILI9341 |
| Display Mode | Normally White, Transmissive |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 200nits |
| Touch screen | Resistive and capacitive touch screen |
The 2.8 inch LCD TFT display can be used for medical devices, industrial control, handheld equipment, POS machine, smart home, and robot.
